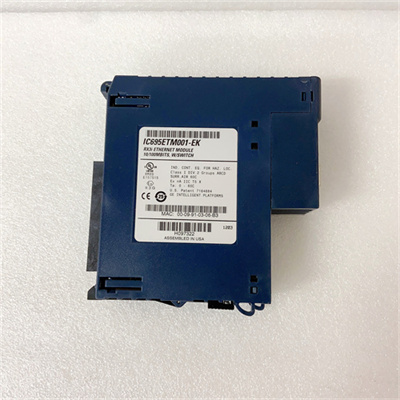

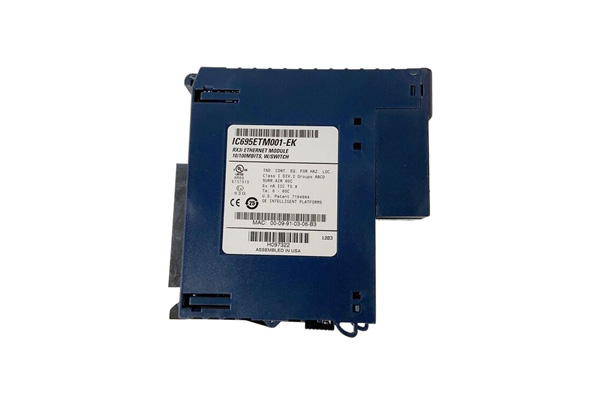

GE IC695ETM001 Product Introduction

The IC695ETM001 module is a key component of the PACSystem Rx31 series,designed for industrial automation and control systems.It provides a Fast Ethernet interface that supports 10/100 Mbps data transfer rates with auto-negotiation capabilities.The module fits into the RX3i slot and can communicate with other controller platforms such as GE’s 90 Series and VersaMax controllers.

Technical specifications and performance

Ports:Two Ethernet ports supporting redundant I/P addressing.

Transmission rate:Supports 10/100 Mbps transmission rate with auto-negotiation function.

Processor Speed:Ethernet processor speed is 200 MHz.

Communication Protocol:Supports four-layer TCP/IP protocol stack and can execute Service Request Transport Protocol(SRTP),Modbus TCP and Ethernet Global Data(EGD)protocols.

Time synchronization:Time synchronization can be performed through an SNTP time server.

Serial Port:One RS-232 serial port supports data transfer rates from 1200 bps to 115200 bps.

Station Manager:Built-in station manager functionality,accessible via serial and Ethernet connections,provides monitoring access.

Product Features

High performance:With high-speed Ethernet interface and powerful processor performance,it can meet the needs of complex industrial automation systems.

Multi-protocol support:Supports multiple industrial communication protocols,such as Modbus TCP,SRTP,and EGD,to achieve seamless integration with different devices.

Redundancy and reliability:Supports redundant I/P addressing and auto-negotiation functions,improving system reliability and stability.

Easy to configure and maintain:Field upgrades and configurations can be performed using software tools provided by GE Fanuc,simplifying the maintenance process.

Hot-swap capability:supports insertion when power is present or the processor is in operating mode(firmware version 2.51 required),improving system flexibility and availability.

Application fields

GE IC695ETM001 module is widely used in industrial automation,process control,safety monitoring and other fields.Especially in scenarios that require high reliability and stability,such as mining,chemical,natural gas and other industries,this module has become the first choice of many users due to its excellent performance and flexible configuration options.
