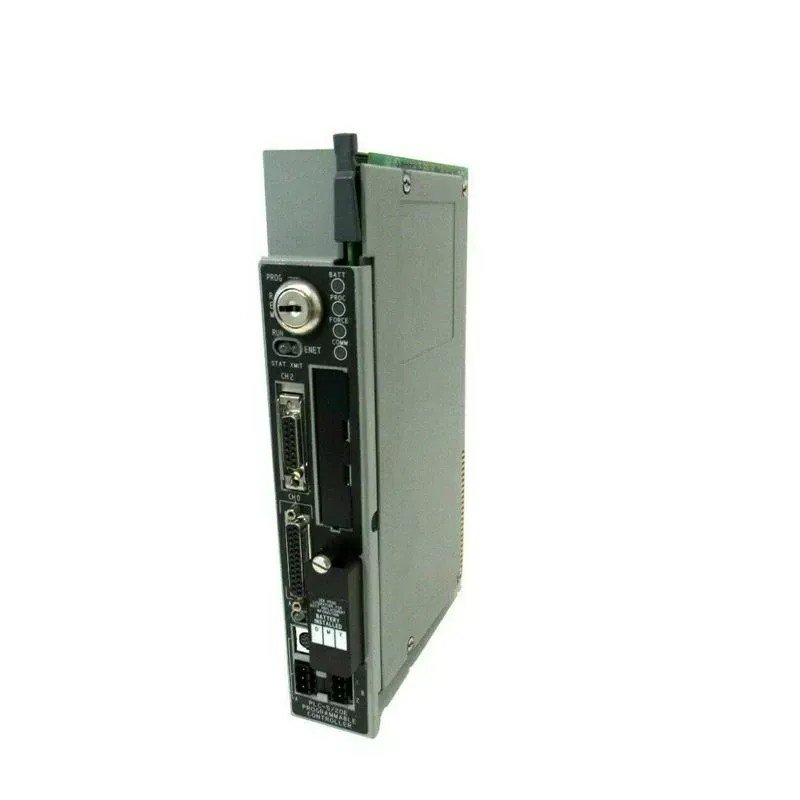

Allen-Bradley 1785-L20E PLC-5 Ethernet Processor Module

The Allen-Bradley 1785-L20E is a PLC-5 Ethernet processor module designed for industrial automation. It provides a high-performance and reliable solution to connect your PLC-5 system to an Ethernet network. This module enables communication with devices like HMIs, SCADA systems, and other PLCs using Ethernet/IP.

Key Features

• PLC-5 Compatibility: Integrates easily into existing PLC-5 systems.
• Ethernet/IP: Supports the popular Ethernet/IP protocol for industrial communication.
• High Performance: Transfers data quickly and efficiently over the network.
• Flexibility: Configurable to meet the specific needs of each application.
• Reliability: Withstands harsh industrial environments.

Technical Specifications

• Processor: PLC-5/20 processor
• Memory: 16K words of SRAM
• Ethernet: 10BASE-T Ethernet port
• Protocols: Ethernet/IP
• Power Supply: 5 VDC

Applications

The 1785-L20E is widely used in several applications, including:

• Machine Control: Controls industrial machines and processes.
• Process Automation: Monitors and controls industrial processes effectively.
• Data Acquisition: Collects data from various network devices efficiently.
• SCADA Integration: Connects smoothly with SCADA systems for supervision and control.
