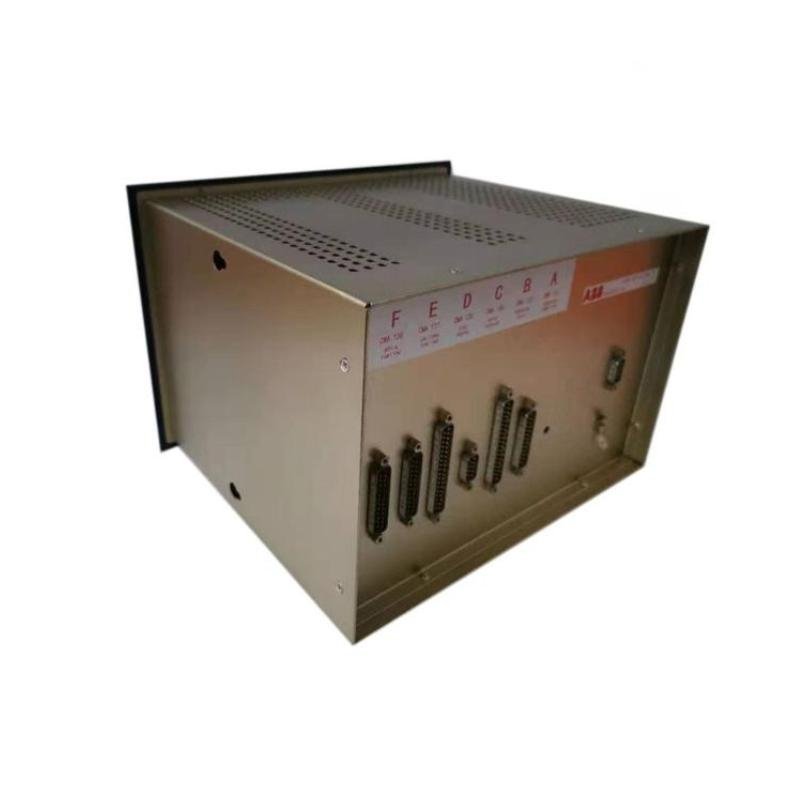

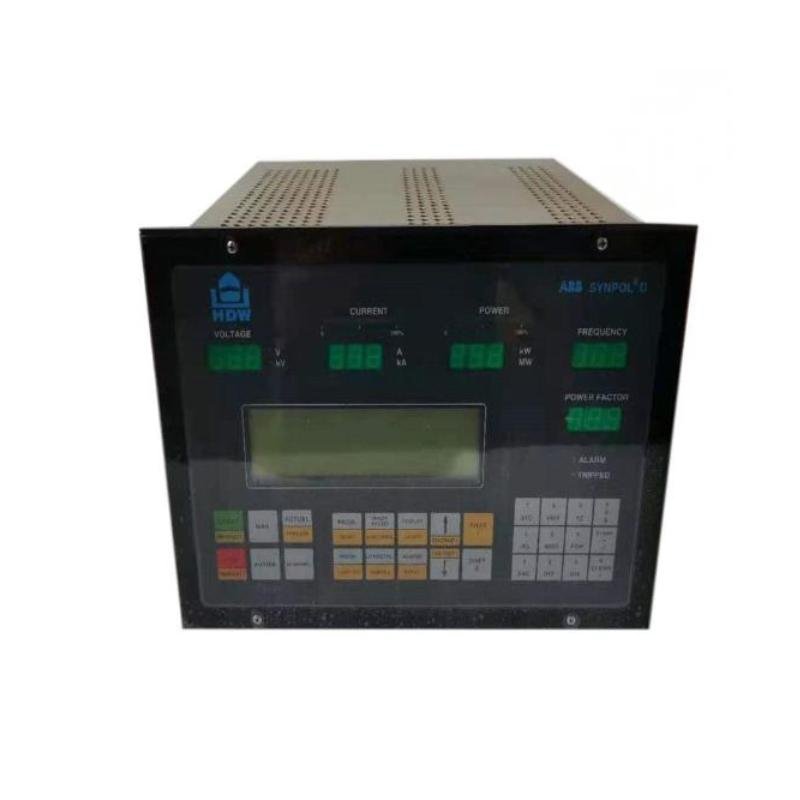

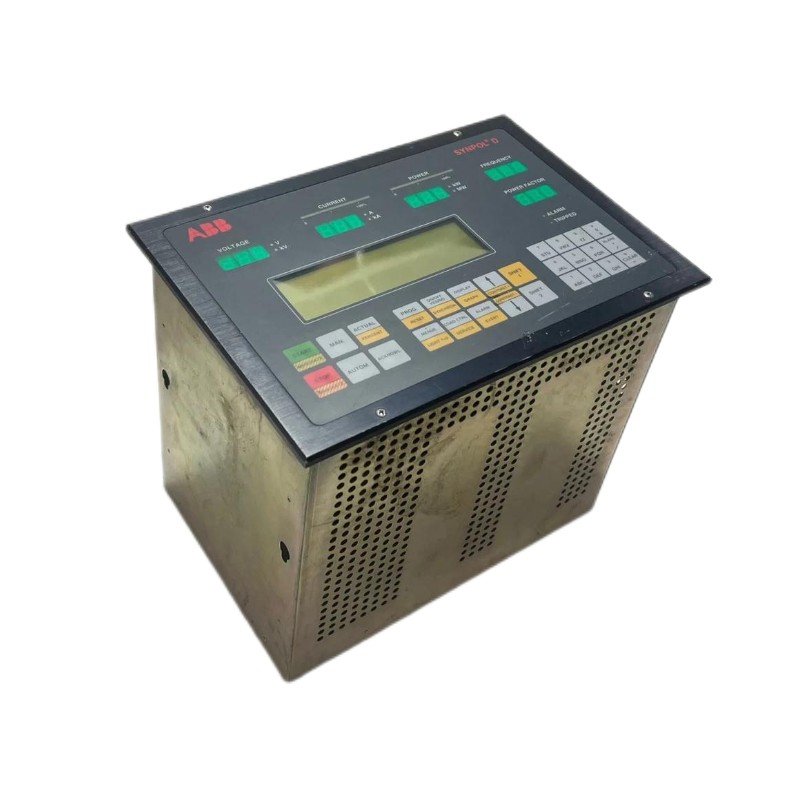

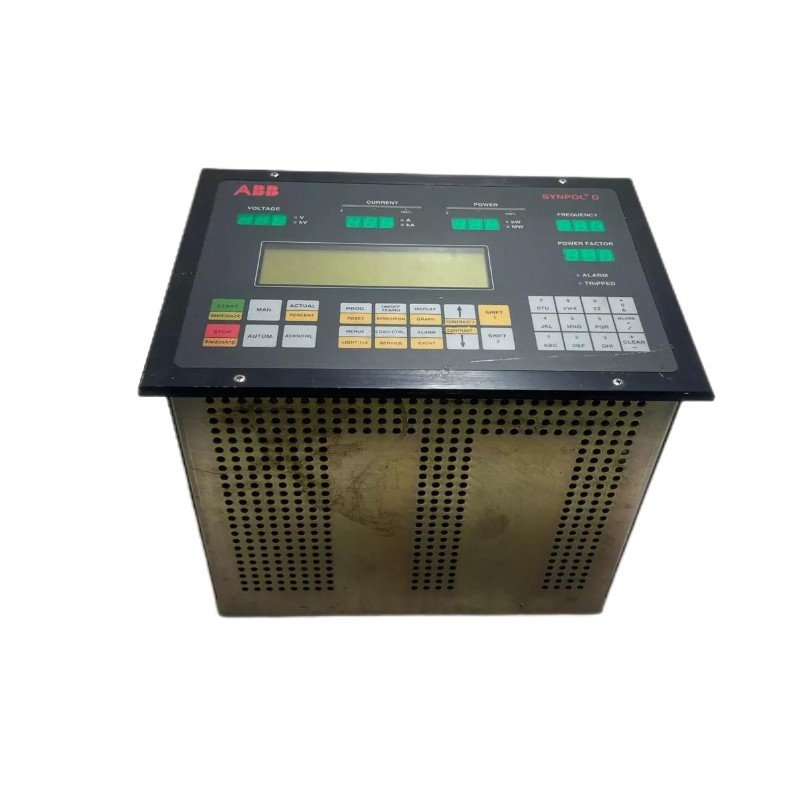

ABB CMA120 3DDE300400 Controller Panel
Manufacturer: ABB
Product Number: CMA120 (3DDE300400)
Category: Controller Panel
Application: Industrial automation and diesel engine management applications
Design: Robust design with versatile functionality for operator control
Product Description
The ABB CMA120 3DDE300400 Controller Panel is a sophisticated control unit designed for use in industrial automation and diesel engine management applications. With its robust design and versatile functionality, this panel allows operators to monitor and control critical systems in real-time, ensuring smooth operation and enhanced performance. The CMA120 features an intuitive interface for easy operation and is built to endure the harshest industrial environments, including those subject to high temperatures, vibrations, and moisture.
This controller panel integrates seamlessly with ABB’s control systems and offers advanced features such as configurable inputs and outputs, as well as comprehensive diagnostic capabilities. It serves as an essential component in managing complex processes, offering precise control and reliable performance in critical operations.
Key Features
-
Versatile Control: Provides full control and monitoring capabilities for various industrial systems, including diesel engines and automation processes.
-
Intuitive Display: Equipped with a user-friendly interface for easy navigation and real-time system diagnostics.
-
Flexible Inputs and Outputs: Configurable I/O options allow the panel to adapt to different applications and systems.
-
Advanced Diagnostics: Offers in-depth diagnostic tools to quickly identify and resolve system issues, reducing downtime.
-
Durable and Reliable: Built to withstand challenging environmental conditions, including extreme temperatures, vibrations, and moisture exposure.
-
Integration Capabilities: Easily integrates with ABB’s broader control systems and supports various communication protocols for seamless system operation.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 x 75 x 25 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 12–24 V DC |
| Power Consumption | < 20 W |
| Input Signals | Digital inputs, analog inputs |
| Communication | CANbus, Modbus RTU, Ethernet |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Vibration | Up to 5 g RMS |
| Protection Class | IP65 |
Display and User Interface
| Item | Specification |
|---|---|
| Display Type | 7-inch TFT LCD |
| Resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Backlight | Adjustable |
Industry Applications
-
Diesel Engine Management: Used to monitor and control diesel engines, ensuring efficient operation in power generation, marine, and construction applications.
-
Power Plants: Controls and monitors critical systems within power plants, improving reliability and reducing operational risks.
-
Industrial Automation: Integrates with other industrial automation systems to control processes in manufacturing, oil & gas, and petrochemical industries.
-
Marine: Ensures reliable operation of diesel engines on ships, offshore platforms, and marine vessels.
-
Construction and Heavy Machinery: Monitors and controls diesel-powered equipment and machinery used in the construction and mining industries.
The ABB CMA120 3DDE300400 Controller Panel offers advanced control and monitoring solutions for various industrial applications. Its durable, high-performance design, coupled with intuitive controls and flexible I/O capabilities, makes it an ideal choice for managing diesel engines and industrial automation processes.
