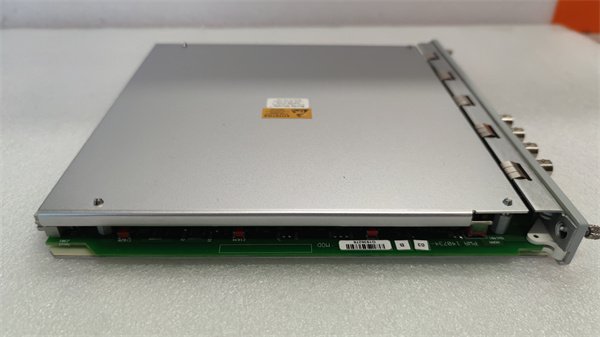

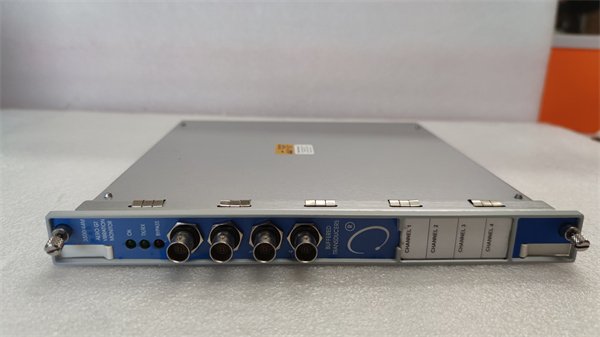

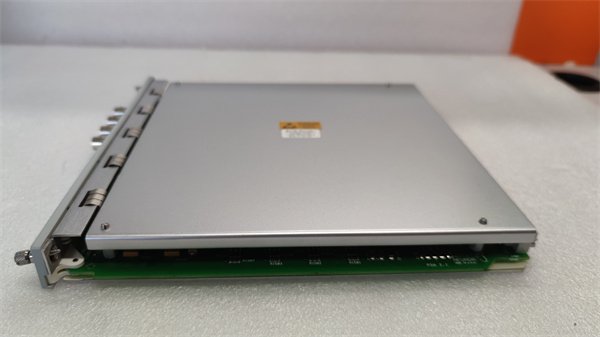

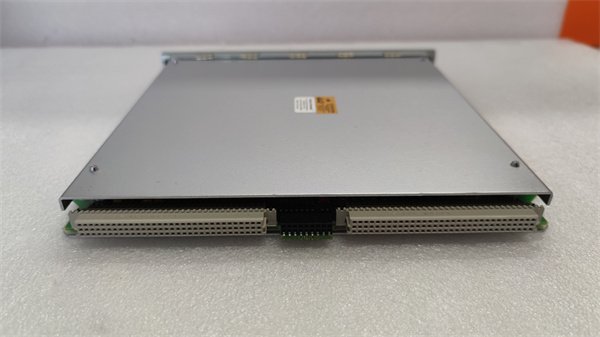

Bently 3500/44-01-00 Transient Data Interface Module
Manufacturer: Bently Nevada
Product Number: 3500/44-01-00
Category: Transient Data Interface Module
Series: Bently 3500 monitoring system
Application: Real-time monitoring of rotating machinery in critical industrial applications for transient data capture
Product Description
The Bently 3500/44-01-00 is a high-performance transient data interface module designed for real-time monitoring of rotating machinery in critical industrial applications. It is part of the Bently 3500 monitoring system, renowned for its reliability and precision in detecting vibrations, displacements, and other mechanical parameters. This module supports four independent channels, each configurable for radial vibration, axial displacement, or other measurements, ensuring comprehensive machine health analysis. With advanced filtering capabilities and alarm thresholds, the 3500/44-01-00 helps prevent downtime by enabling predictive maintenance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Channels | 4 channels (expandable) |
| Input Signal | -10 VDC to +10 VDC (eddy current sensors) |
| Power Supply | -24 VDC (sensor and axis) |
| Power Consumption | 7.7 W |
| Communication | 3500 System Bus, MODBUS RTU |
| Compatibility | Bently 3500 series sensors (e.g., 3300 XL) |
| Dimensions | 9.50 in x 0.96 in x 3.90 in |
| Weight | 0.82 kg (1.8 lb) |
| Operating Temperature | -40°C to +70°C |
Advantages and Features
- Multimode Monitoring: Configurable for up to 8 alarm sets per channel, adapting to dynamic machine conditions.
- High Precision: Filters up to 10,000 Hz, ensuring accurate vibration analysis.
- Redundancy Support: Compatible with TMR (Triple Modular Redundancy) systems for safety-critical applications.
- User-Friendly Interface: Simplified integration with PLC/DCS systems via 4-20 mA outputs and relay contacts.
- Self-Diagnostics: Real-time health checks for sensor integrity and module performance.
Application Fields and Case Studies
- Energy: Turbine vibration monitoring in power plants.
- Oil & Gas: Axial displacement control for compressors.
- Manufacturing: Motor bearing health assessment in production lines.
- Marine: Propulsion shaft analysis in ship engines.
Case Study: A petrochemical plant reduced unplanned downtime by 40% using the 3500/44-01-00 to monitor compressor vibrations, enabling proactive maintenance.
Competitor Comparison
Compared to similar modules, the 3500/44-01-00 offers:
- Higher channel density (4 vs. 2 channels in some alternatives).
- Broader filter customization (over 10,000 combinations).
- Native support for Bently’s API 670-compliant sensors.
Selection Recommendations
- Compatibility: Ensure alignment with existing Bently 3500 rack systems.
- Environment: Choose corrosion-resistant variants for harsh conditions.
- Scalability: Opt for TMR configurations for critical assets.
Precautions
- Installation: Follow ESD (electrostatic discharge) protocols during handling.
- Calibration: Regularly verify sensor alignment and signal integrity.
- Software Updates: Keep firmware current to access new features and bug fixes.
