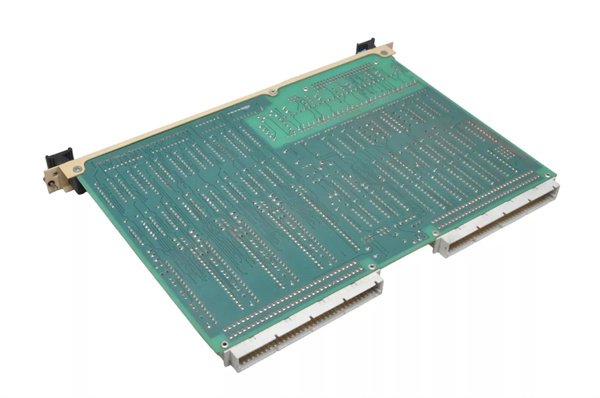

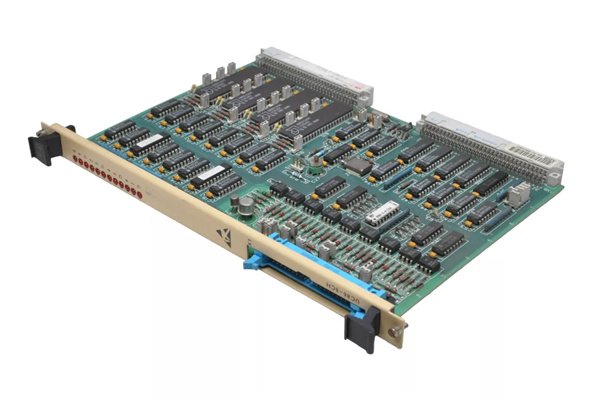

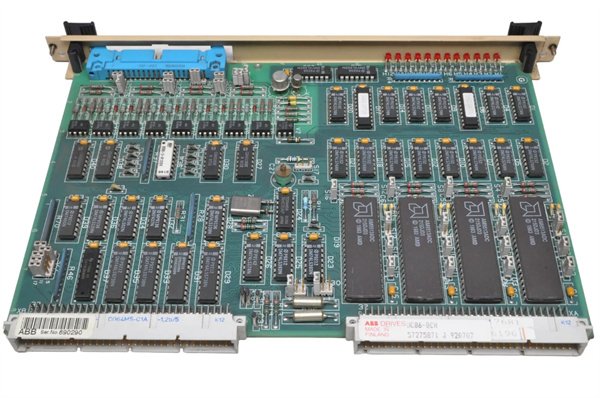

ABB UC86-8CH 57275871 8-channel analog input module
Manufacturer: ABB
Product Number: UC86-8CH (57275871)
Category: 8-Channel Analog Input Module
Number of Channels: 8
Input Signal Types: 4-20 mA, 0-10 V
Accuracy: 0.1% full-scale error
Isolation: Channel-to-channel isolated
Application: Critical industrial applications requiring high-accuracy analog signal acquisition with noise immunity
Product Description
The ABB UC86-8CH 57275871 is a 8-channel analog input module supporting voltage and current signals (e.g., 4–20 mA, 0–10 V). It features isolated channels for noise immunity and high accuracy (±0.1% full-scale error), making it ideal for critical industrial processes. The module is compact, rugged, and compliant with industrial standards (e.g., IEC 61131-2), ensuring compatibility with ABB’s AC 800M and other modular control systems. Its plug-and-play design simplifies installation, while diagnostic features (e.g., channel fault detection) enhance system reliability.
Product Parameters
| Parameter | Specification |
|---|---|
| Channels | 8 isolated analog inputs |
| Input Type | Voltage (0–5 V, 0–10 V) / Current (4–20 mA) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Voltage Supply | 24 V DC (±10%) |
| Signal Isolation | 500 V DC (channel-to-channel, channel-to-ground) |
| Compatibility | ABB AC 800M, Industrial IT systems |
| Dimensions (W×H×D) | 25 mm × 100 mm × 120 mm |
Advantages and Features
- High Reliability: Redundant power supply and short-circuit protection ensure continuous operation in harsh environments.
- Precision Performance: 16-bit resolution and low drift enable accurate monitoring of critical processes (e.g., temperature, pressure).
- Easy Integration: Plug-in design with standardized connectors reduces installation time by 30% compared to legacy modules.
- Diagnostic Capabilities: Real-time channel status monitoring and error reporting minimize downtime (e.g., fault LED indicators).
- Energy Efficiency: Low power consumption (≤2.5 W) meets energy-saving requirements for green industrial operations.
Application Areas and Cases
Industries: Manufacturing, energy, chemical processing, water treatment.
Scenarios:
- Case Study: A chemical plant in Germany integrated the UC86-8CH 57275871 to monitor 80+ temperature and pressure sensors in a reactor system. The module’s high accuracy and fast sampling (200 ms/channel) reduced measurement errors by 45%, improving process stability and product quality.
Competitor Comparison
Compared to similar analog input modules, the UC86-8CH 57275871 offers:
- Superior Channel Density: 8 channels in a smaller form factor (25 mm width) versus 6 channels in competing models.
- Enhanced Isolation: 500 V DC isolation (vs. typical 250 V DC in alternatives).
- Extended Temperature Range: Operates at -40°C to +70°C (vs. standard 0°C to +55°C), suitable for extreme environments.
Selection Recommendations
- Compatibility: Verify compatibility with your control system (e.g., ABB AC 800M, third-party PLCs).
- Environment: Choose modules with appropriate temperature/pressure ratings for your site (e.g., hazardous areas require ATEX/IECEx certifications).
- Scalability: Opt for 8-channel modules (like the UC86-8CH 57275871) for cost-effective expansion of small-to-medium systems.
- Budget: Balance features (e.g., isolation, resolution) with project requirements—this module offers premium performance at a 15% lower cost than high-end competitors.
Precautions
- Installation: Follow ABB’s wiring guidelines (shielded cables for analog signals, proper grounding).
- Maintenance: Regularly check for loose connections; replace modules every 10–15 years (based on operational conditions).
- Safety: Disconnect power before servicing; avoid electrostatic discharge (ESD) during handling.
