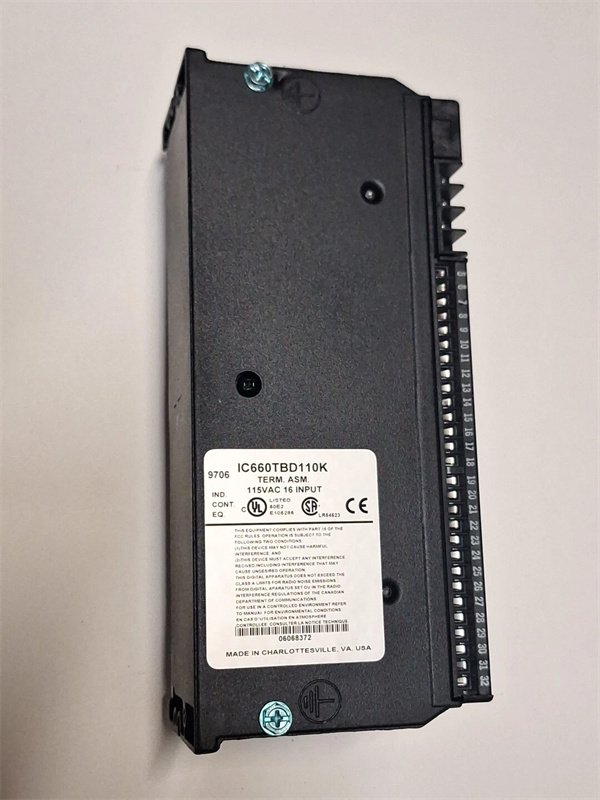

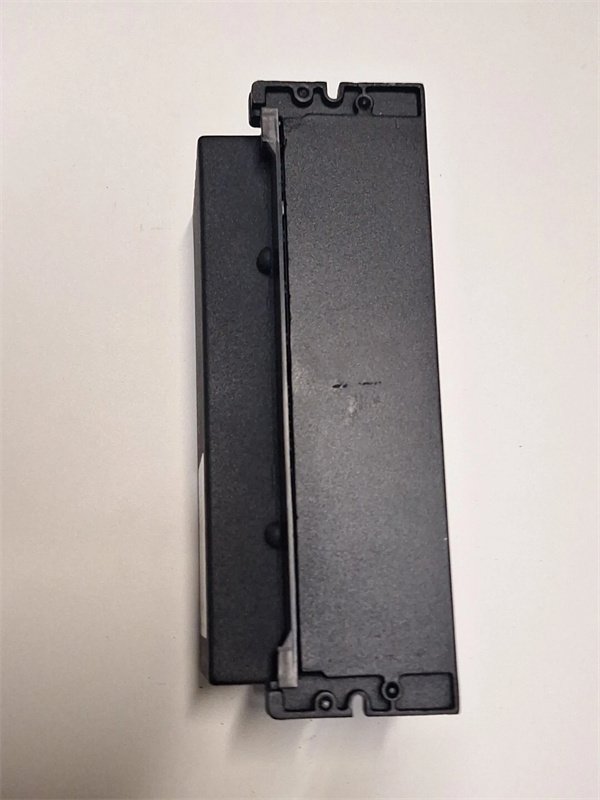

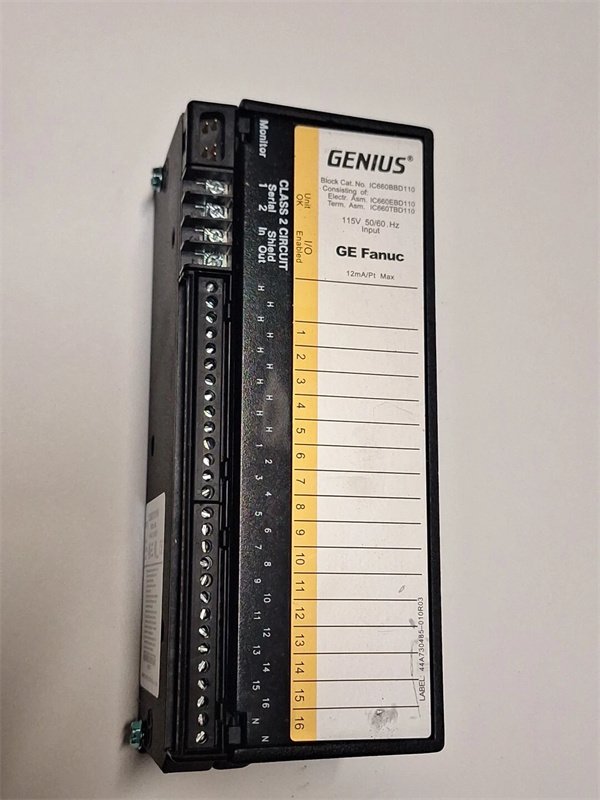

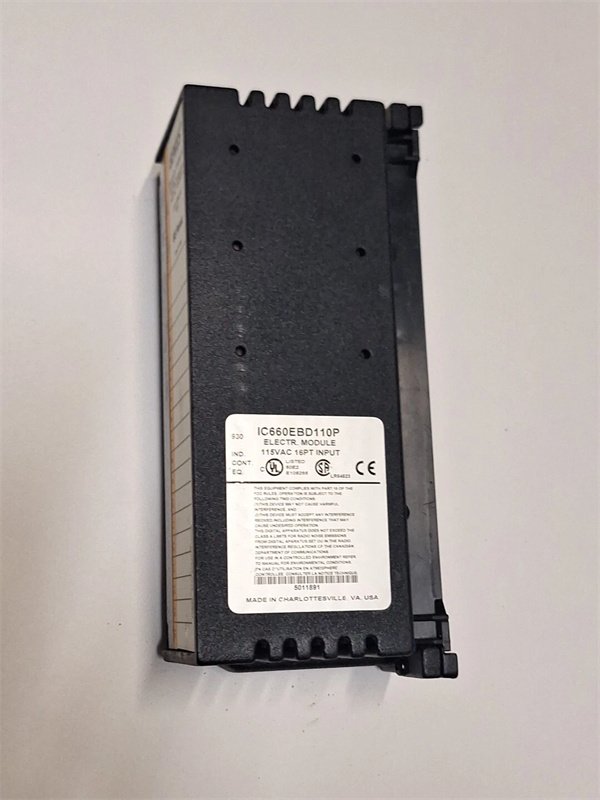

General Electric IC660BBD110 I/O Block
Manufacturer: GE Fanuc
Product Number: IC660BBD110
Category: Discrete Input Block
Series: Genius I/O series
Input Voltage: 115 VAC
Application: High-performance discrete input block supporting both discrete and analog functionality for industrial automation
Product Description
The GE IC660BBD110 is a high-performance discrete input block designed for industrial automation systems. It is part of the GE Fanuc Genius I/O series and is designed for 115 VAC applications. This module supports both discrete and analog functionality, making it versatile for various industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660BBD110 |
| Manufacturer | GE Fanuc |
| Product category | I/O Block |
| Operating Voltage | 115 VAC |
| Input Voltage Range | 93-132 VAC |
| Number of Circuits | 16 |
| Load Current | 2 A per circuit |
| Heat Dissipation | 28 W maximum with all inputs on at full current |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +100°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 8.83 in × 3.34 in × 3.91 in (22.44 cm × 8.48 cm × 9.93 cm) |
| Weight | 4 lbs (1.8 kg) |
| Certifications | UL, CE, RoHS |
Core Advantages and Technical Highlights
Versatile Configuration
The GE IC660BBD110 offers 16 discrete input circuits, arranged into two groups of eight circuits each. This flexibility allows it to be tailored precisely to the unique requirements of different industrial processes.
With a rapid input signal processing time of 1 ms, the module can quickly respond to changes in the industrial environment. The optional filter time, ranging from 10-100 ms in 10 ms increments, helps to eliminate electrical noise and interference, ensuring the accuracy of the input signals.
Robust Diagnostic and Protection
The module comes equipped with advanced diagnostic features. LED indicators for unit and I/O status provide real-time visual feedback on the module’s operation. It can detect switch failures and has self-protection mechanisms against overloads, short circuits, and overheating.
Reliable Communication
The GE IC660BBD110 supports the Genius communication protocol, enabling seamless integration with other GE PLCs, DCS systems, and Genius-compatible devices. This ensures smooth data flow and coordinated control in large-scale industrial complexes.
Typical Application Scenarios
The GE IC660BBD110 is widely used in industrial automation fields, including:
-
Manufacturing: Controlling production lines and robotic systems.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Monitoring and controlling hazardous processes in chemical plants.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660BBD110, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (115 VAC) and that the operating temperature range (0°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC660BBD110. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC660BBD110 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
