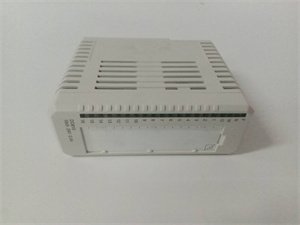

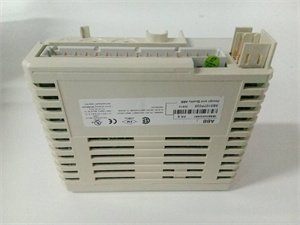

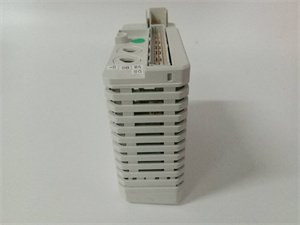

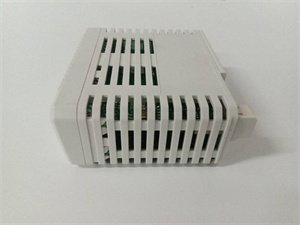

ABB DI810 digital input module

The ABB DI810 is a high-performance digital input module designed for industrial automation systems, part of the ABB S800 I/O series compatible with the AC800M system. Engineered for reliable signal acquisition, the DI810 supports 16 channels of digital inputs, converting sensor and switch states into control system-compatible signals. Its dual isolated groups (2×8 channels) with voltage supervision enhance noise immunity and fault tolerance, making it ideal for harsh industrial environments. The module’s flexible filtering (2/4/8/16 ms) and compact design (45×102×119 mm) enable seamless integration into diverse automation setups. With certifications like EN 61010 and C1 Div 2/C1 Zone 2, the DI810 ensures compliance with global safety standards.

Product Parameters

Advantages and Features

• Dual Isolation Design: Two independent isolated groups (8 channels each) with voltage supervision minimize cross-channel interference and ensure robust fault detection.
• Diagnostic Capabilities: LED indicators for channel status (0/1), fault (F), run (R), and warning (W), plus voltage loss alerts via the module bus.
• Wide Environmental Range: Operates in temperatures from -20°C to +60°C (standard) and withstands humidity (5–95% non-condensing) and pollution (Degree 2).
• Modular Flexibility: Compatible with ABB’s S800 I/O MTUs (e.g., TU810V1, TU814V1), enabling easy expansion and vertical/horizontal mounting.
• Safety Compliance: Meets EN 61000 (EMC), IEC 60664 (overvoltage), and RoHS/WEEE standards, ensuring long-term reliability.

Application Fields and Cases

• Industries: Manufacturing (e.g., automotive assembly), energy (power plants), water treatment, oil & gas, and infrastructure (building automation).
• Use Cases:
  • Automotive Manufacturing: Monitoring conveyor belt sensors and robotic arm status in a production line, reducing downtime via real-time fault detection.
  • Water Treatment: Tracking pump and valve states in a wastewater plant, optimizing process efficiency with 16-channel density and fast response times.

Competitor Comparison

Compared to similar digital input modules, the DI810 stands out with:

• Higher Channel Density: 16 channels in a compact form factor (45 mm width), reducing cabinet space vs. 8-channel alternatives.
• Enhanced Isolation: Dual-group isolation (vs. single-group designs) for superior noise resistance in high-interference environments.
• Flexible Filtering: Programmable input filters (2–16 ms) adapt to varying signal noise levels, unlike fixed-filter competitors.

Selection Recommendations

• Compatibility: Ensure MTU compatibility (e.g., TU810/TU814) for Modbus RTU communication.
• Environment: For extreme temperatures (+55°C max certified), verify site conditions match the module’s rated range.
• Scalability: Choose the DI810 for high-density applications; opt for lower-channel modules (e.g., DI814) for simpler setups.
• Budget: Balance channel count and features (e.g., isolation, diagnostics) against project requirements.

Precautions

• Wiring: Use shielded cables (max 600m) for current sinking inputs; follow ABB’s wiring diagrams for proper grounding.

• Power Supply: Ensure stable 24V DC external power and 5V module bus power (50mA).

• Installation: Vertical mounting recommended for optimal heat dissipation (max 55°C); avoid horizontal mounting in high-temperature environments.

• Maintenance: Regularly inspect LED indicators for faults; replace modules under certified conditions to maintain safety certifications.
