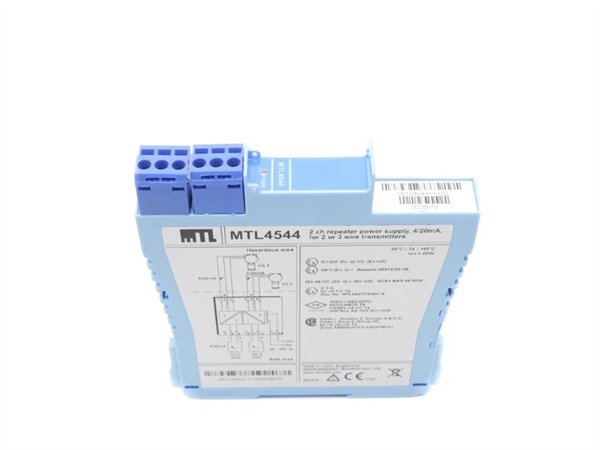

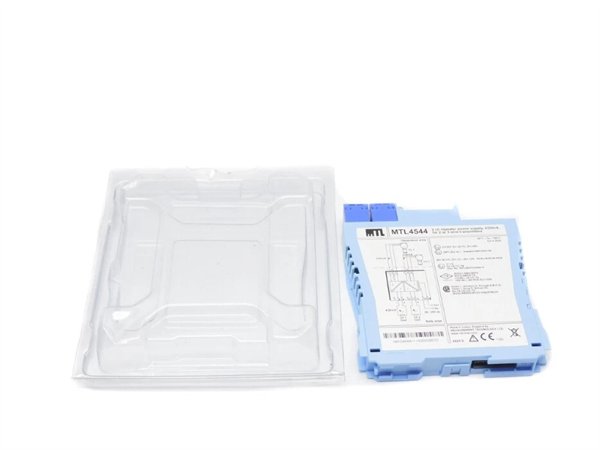

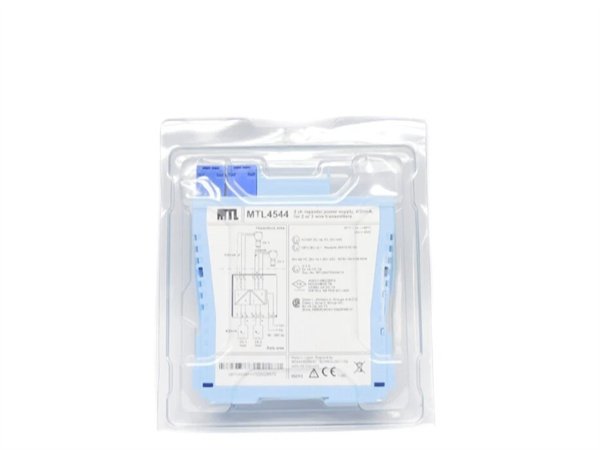

MTL 4544AS Industrial Safety Barrier Module
Manufacturer: MTL (Eaton)
Product Number: 4544AS
Category: Industrial Safety Barrier Module / Current Repeater (MTL 4500 Series)
Application: Ensuring reliable and accurate signal transmission in harsh environments for industrial safety barrier applications
Product Description
The MTL 4544AS is a high-performance current repeater designed for industrial safety barrier applications. It ensures reliable and accurate signal transmission even in harsh environments. This module is part of the MTL 4500 series, known for its robust signal isolation capabilities and compliance with stringent industry standards.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MTL 4544AS |
| Manufacturer | Eaton (MTL) |
| Product Category | Industrial Safety Barrier Module |
| Function | Current Repeater |
| Input Range | 4-20 mA |
| Output Range | 4-20 mA |
| Supply Voltage | 12-36 V DC |
| Operating Temperature Range | -40°C to +85°C |
| Intrinsic Safety Rating | ATEX, IECEx |
| Protection Rating | IP67 |
| Dimensions | 100 x 70 x 30 mm |
| Weight | 0.3 kg |
| Certifications | UL, CE, ATEX, IECEx |
Core Advantages and Technical Highlights
High Safety and Reliability
The MTL 4544AS is certified to meet ATEX, IECEx, UL, and CE standards, ensuring compliance with global safety regulations. It provides robust isolation capabilities to ensure accurate data transmission in demanding industrial environments.
Versatile and Flexible
The module supports a wide range of input and output signals, making it a versatile solution for various applications. It features a compact design that allows for easy installation in control cabinets or on DIN rails, saving valuable space.
Advanced Isolation Technology
The MTL 4544AS provides galvanic isolation and surge protection, ensuring that sensitive equipment is protected from electrical noise and disturbances. It operates reliably within a wide voltage range of 12-36 V DC and can handle input and output currents of 4-20 mA.
Typical Application Scenarios
The MTL 4544AS is widely used in:
-
Manufacturing: For protecting sensitive equipment from electrical noise and transients.
-
Oil and Gas: For reliable signal isolation in hazardous environments.
-
Chemical Plants: For ensuring accurate data transmission and equipment protection.
-
Food and Beverage: For maintaining signal integrity in industrial automation systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the module clean and free from dust to prevent overheating and ensure efficient operation.
Service and Guarantee Commitment
The MTL 4544AS is backed by a comprehensive warranty and after-sales service commitment. Eaton guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers 24/7 technical support to ensure any issues are resolved promptly.
