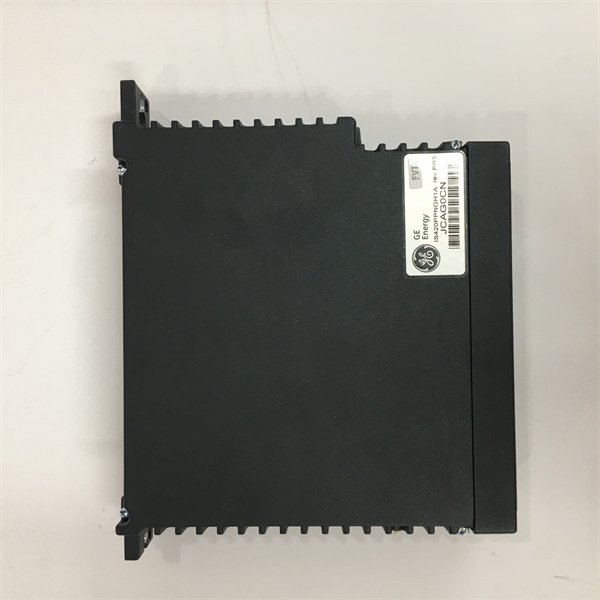

General Electric IS420PPNGH1A Profinet Gateway Module

The GE IS420PPNGH1A is a high – performance Profinet gateway module meticulously designed by General Electric for seamless integration within the Mark VIe / Mark Vies system. As a key component in industrial automation and control, it plays a pivotal role in facilitating efficient communication. This module is built upon a 1066 MHz Intel processor (EP80579), endowing it with the computational muscle to handle complex data exchanges.

Functionally, the IS420PPNGH1A serves as a powerful bridge that connects Mark VIe controllers to a Profinet local area network (LAN). This connection enables high – speed data transfer between the controller and Profinet I/O devices, which is crucial for real – time control in industrial processes. It is a single – module, air – cooled component, designed for reliable operation without the need for an installed battery or fan. Engineered to be vertically panel – mounted, it fits neatly into industrial setups where space optimization and efficient cooling are priorities. The GE IS420PPNGH1A is an essential part of GE’s turbine control system offerings, commonly used in gas, hydro, and steam turbine systems to ensure smooth and precise control.

Technical Specifications

High – speed Communication: With its ability to enable high – speed data transfer between Mark VIe controllers and Profinet I/O devices, the GE IS420PPNGH1A ensures real – time control in industrial processes. This is especially crucial in applications where split – second decisions are required, such as in turbine control systems where rapid adjustments can prevent operational issues.

Powerful Processing: The 1066 MHz Intel processor (EP80579) provides robust processing power. It can handle complex data routing and translation tasks between the Profinet network and other connected systems or protocols, ensuring efficient communication flow. This high – end processing capability also allows for quick response times, enhancing the overall performance of the industrial automation system.

Reliable Design: As an air – cooled, battery – free, and fan – less module, the IS420PPNGH1A offers reliable operation. It reduces the risk of failures associated with battery degradation or fan malfunctions. The vertical panel – mount design not only saves space but also ensures proper ventilation for effective cooling, making it suitable for long – term operation in industrial environments.

Easy Integration: It is designed to be easily integrated into the Mark VIe / Mark Vies system. Its role as a Profinet gateway simplifies the connection between different devices in an industrial network, allowing for seamless communication between Profinet – based devices and other systems using different communication standards.

In power generation facilities, particularly those using gas, hydro, or steam turbines, the GE IS420PPNGH1A is of utmost importance. In a gas turbine power plant, for example, it enables the Mark VIe controller to communicate with various I/O devices involved in monitoring and controlling the turbine’s operation. This includes sensors that measure temperature, pressure, and speed, as well as actuators that adjust fuel flow and blade angles. By ensuring high – speed and reliable communication, it helps maintain the stable and efficient operation of the turbine, maximizing power output.

In industrial manufacturing plants that rely on complex automation systems, the IS420PPNGH1A plays a vital role. It can connect different components of an automated production line, such as programmable logic controllers (PLCs), sensors, and drives. For instance, in an automotive manufacturing plant, it can facilitate communication between the main control system and the I/O devices on the assembly line, ensuring that each robot, conveyor belt, and other equipment operate in sync, thus improving production efficiency and product quality.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IS420PPNGH1A, ensure that the power to the relevant system is turned off to prevent electrical hazards. Inspect the module for any visible signs of damage during transit, such as cracks in the casing or bent connectors. Verify that the installation area meets the module’s environmental requirements, with a temperature range of 22 to 149 °F. Since it is a vertical panel – mounted module, make sure the mounting location has sufficient space and is properly configured for vertical installation. Also, check the compatibility of the module with the existing Mark VIe / Mark Vies system components, including the associated switches and network infrastructure.

Maintenance recommendations: Regularly monitor the operational status of the IS420PPNGH1A through the system’s diagnostic tools. Check for any abnormal network communication patterns or performance degradation. Clean the module periodically to remove dust and debris, as this can affect its cooling efficiency, especially since it is air – cooled. Although it is a battery – free module, ensure that all connections remain secure. If any issues are detected, refer to the GE – provided manuals, such as GEH – 6725, for detailed troubleshooting steps. In case of complex problems, contact GE’s technical support for expert assistance to maintain the module’s optimal performance.

Product Guarantee

GE stands firmly behind the quality of the GE IS420PPNGH1A Profinet gateway module. It typically comes with a standard one – year warranty, covering defects in materials and workmanship under normal usage conditions. In the unlikely event that any issues arise within this period, GE’s dedicated technical support team is readily available to offer comprehensive assistance. Whether it’s providing installation guidance, helping with configuration issues, or troubleshooting operational problems, they ensure that customers can rely on the IS420PPNGH1A for their industrial automation needs. This commitment reflects GE’s confidence in the product’s durability and performance, providing customers with peace of mind when integrating it into their critical industrial systems.
