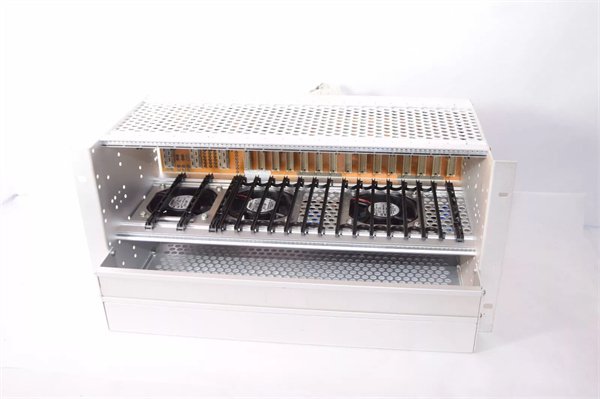

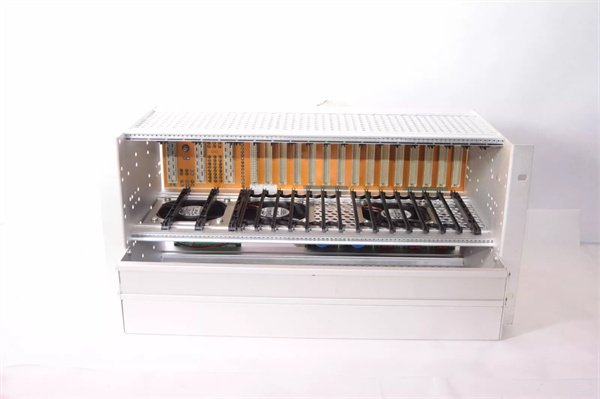

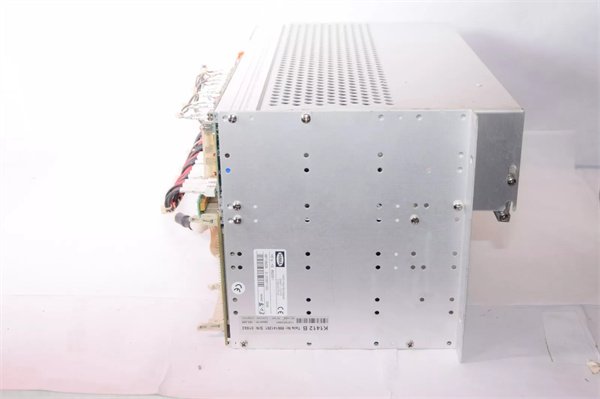

Hima H51Q-HS B5233-1 Industrial Safety System
Manufacturer: HIMA
Product Number: H51Q-HS (B5233-1)
Category: Industrial Safety System
Architecture: Quadruple modular redundant
Safety Integrity Level (SIL): SIL 3 certified
Power Supply: 24 V DC (redundant)
Processor: 32-bit RISC
Communication: Ethernet, Profibus, Modbus
Operating Temperature: -20°C to +60°C
Product Description
The HIMA H51Q-HS B5233-1 is a high-performance industrial safety system designed for critical applications. It features a modular design with redundant power supply and central modules, ensuring high reliability and safety.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | HIMA H51Q-HS B5233-1 |
| Manufacturer | HIMA |
| Product Category | Industrial Safety System |
| Operating Voltage | 24 V DC |
| Input Voltage Range | 24 V DC |
| Output Voltage | 5 V DC |
| Power Supply Modules | 3 x F7126 (24 V/5 V, 10 A each) |
| Redundancy | Triple power supply modules, dual central modules |
| Communication Protocols | Ethernet, Profibus-DP |
| Operating Temperature Range | -25°C to +60°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Dimensions | 19-inch rack, 5 height units |
| Certifications | TÜV Certified, SIL 3, CE Marking |
Core Advantages and Technical Highlights
High Reliability and Safety
The HIMA H51Q-HS B5233-1 features a triple power supply module redundancy and dual central modules, ensuring fail-safe operation. It complies with SIL 3 safety standards and is TÜV certified.
Modular Design
The system includes a 19-inch rack with 5 height units, allowing for flexible installation and integration into existing control systems. It supports up to 10 communication modules and 6 coprocessor modules.
Comprehensive Monitoring
The system includes modules for power supply decoupling and fusing, fan monitoring, and fuse monitoring. It also features watchdog circuits for independent safety shutdown in case of faults.
Typical Application Scenarios
The HIMA H51Q-HS B5233-1 is widely used in:
-
Oil and Gas: For monitoring and controlling critical processes in oil platforms and pipelines.
-
Power Generation: Ensuring the stable operation of power plants.
-
Chemical Processing: For precise control and safety monitoring in chemical plants.
Installation Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input and output cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation. Perform annual calibration checks and store calibration data in the module’s flash memory.
Service and Guarantee Commitment
The HIMA H51Q-HS B5233-1 is backed by a comprehensive warranty and after-sales service commitment. HIMA guarantees the quality of the product and provides reliable technical support and after-sales service to ensure user satisfaction.
