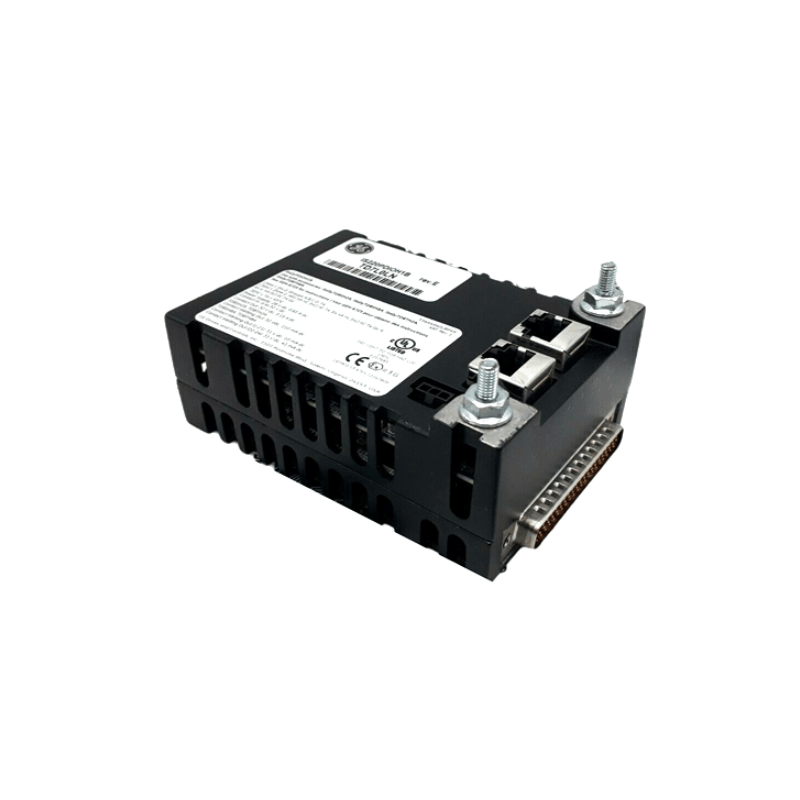

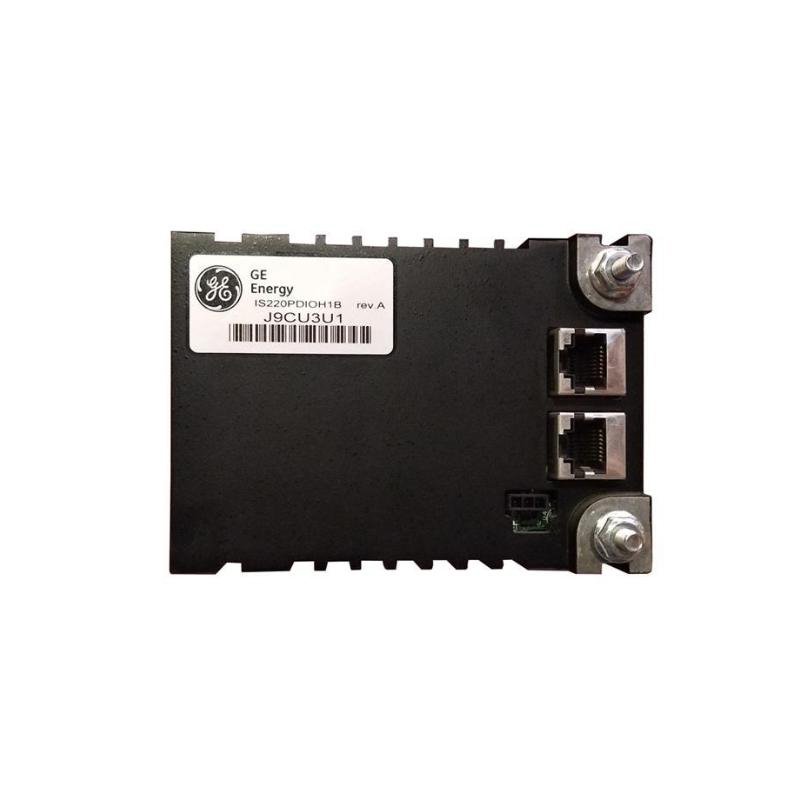

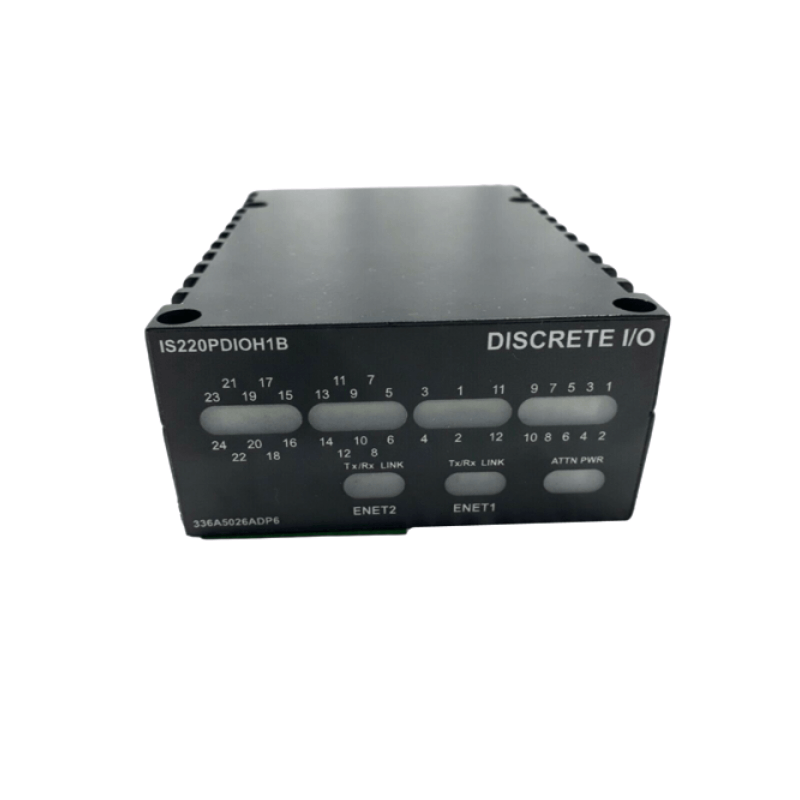

General Electric IS220PDIOH1B Discrete I/O Module

The GE IS220PDIOH1B is a high-performance Discrete I/O Modulemodule widely used in industrial control systems. Designed to work seamlessly with GE’s Mark VIe series controllers, this module provides reliable digital signal processing capabilities. The IS220PDIOH1B module is characterized by high precision, high reliability, and ease of integration, making it suitable for various industrial automation applications, including power, oil and gas, and chemical industries.

Product Features

High Reliability: Utilizes industrial-grade components to ensure stable operation in harsh environments.

Easy Integration: Seamlessly integrates with Mark VIe series controllers, simplifying system configuration and maintenance.

Versatility: Supports multiple digital input/output signal types to meet diverse application needs.

Compact Design: Small module size saves installation space.

Detailed Product Description

The GE IS220PDIOH1B Discrete I/O Module is a high-performance device designed for industrial automation. The module provides 16 digital input channels and 16 digital output channels, capable of handling various types of digital signals. The input channels support dry and wet contact signals, while the output channels use relay outputs to ensure reliability and stability in various industrial environments.

Input Characteristics

Input Voltage Range: 24V DC ±10%, suitable for most industrial standard voltages.

Input Current: Max 5mA, low power design reduces system energy consumption.

Input Signal Type: Supports dry and wet contact signals, flexible for different application scenarios.

Output Characteristics

Output Voltage Range: 24V DC ±10%, matches input voltage, simplifies power design.

Output Current: Max 500mA, capable of driving most industrial loads.

Output Signal Type: Relay output, provides high reliability and long life.

Environmental Adaptability

Operating Temperature Range: -40°C to +70°C, suitable for extreme temperature environments.

Storage Temperature Range: -40°C to +85°C, ensures safety in non-operating states.

Relative Humidity: 5% to 95% non-condensing, adapts to high humidity environments.

Protection Rating: IP20, provides basic dust and contact protection.

Physical Characteristics

Dimensions: 120mm x 80mm x 40mm, compact design saves installation space.

Weight: 0.5kg, lightweight for easy installation and maintenance.

Communication and Certifications

Communication Interface: Ethernet, supports high-speed data transmission and remote monitoring.

Certifications: CE, UL, CSA, ATEX, IECEx, complies with international standards and industry norms, ensuring product safety and reliability.
