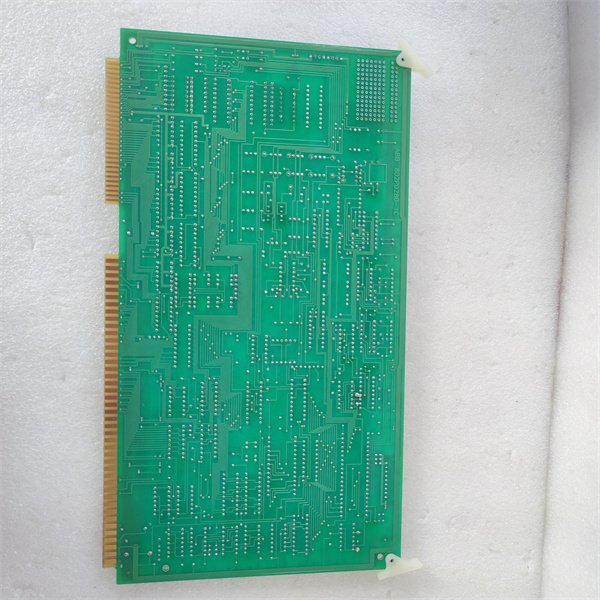

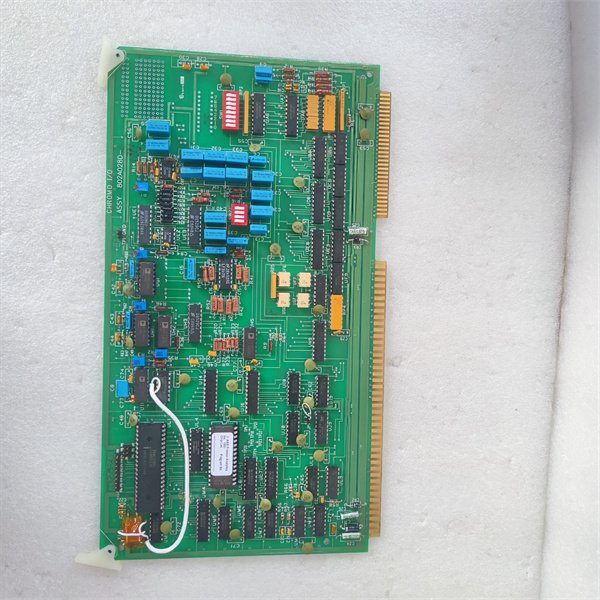

ABB 802A028D-3 Signal Conditioning and Interface Module
Manufacturer: ABB
Product Number: 802A028D-3
Category: Signal Conditioning and Interface Module
Function: Bridge between field devices (sensors, actuators) and control platforms
Number of Channels: 4
Input Signal Types: 4-20 mA, 0-10 V
Output Signal Types: 4-20 mA, 0-10 V
Isolation: 500 V
Operating Temperature: -20°C to +60°C
Product Description
The ABB 802A028D-3 is a high-performance signal conditioning and interface module designed for industrial automation systems. It acts as a bridge between field devices, such as sensors and actuators, and control platforms, ensuring seamless communication and data transfer.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB 802A028D-3 |
| Manufacturer | ABB |
| Product category | Signal Conditioning and Interface Module |
| Operating Voltage | 24 V DC (±10%) |
| Input Channels | 8-16 digital inputs (24V DC, source/sink) |
| Output Channels | 8-16 transistor/relay outputs (≤2A) |
| Analog Input Channels | 4-8 channels (0-10V, 4-20mA, 12-16 bit resolution) |
| Analog Output Channels | 2-4 channels (0-20mA, ±10V) |
| Communication Interfaces | RS-485, Ethernet |
| Supported Protocols | Modbus RTU, Profibus DP, CANopen, EtherNet/IP, PROFINET |
| Real-Time Clock | Battery-backed |
| UPS Function | 1-second integrated UPS power supply |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -55°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Class | IP67 |
| Dimensions | 100 mm × 50 mm × 30 mm |
| Weight | 0.25 kg |
| Certifications | CE, UL, cUL, RoHS compliant |
Core Advantages and Technical Highlights
-
High-Speed Signal Processing: The module features a 400 MHz ARM9 32-bit processor, ensuring rapid processing of complex signal transmission tasks.
-
Robust Design: The module is designed to withstand harsh industrial conditions, with a wide operating temperature range and IP67 protection rating.
-
Flexible Communication: Supports multiple communication protocols, including Modbus RTU, Profibus DP, CANopen, EtherNet/IP, and PROFINET, ensuring seamless integration with various industrial systems.
-
Compact Size: With dimensions of 100 mm × 50 mm × 30 mm and a weight of 0.25 kg, the module is easy to install and maintain.
-
Integrated UPS: Features a 1-second integrated UPS power supply to enhance system reliability.
Typical Application Scenarios
The ABB 802A028D-3 is widely used in various industrial applications, including:
-
Mechanical Manufacturing: Efficiently handles signal transmission between sensors and actuators to ensure stable and efficient production processes.
-
Petrochemical and Energy Industry: Ensures high reliability and real-time performance in harsh working environments.
-
Water Conservancy, Environmental Protection, and Power Industry: Improves the efficiency and accuracy of data transmission and optimizes resource allocation.
-
Building Automation: Used in HVAC systems, lighting management, and security systems.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB 802A028D-3, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (24 V DC) and that the operating temperature range (-40°C to +70°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ABB 802A028D-3. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The ABB 802A028D-3 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
