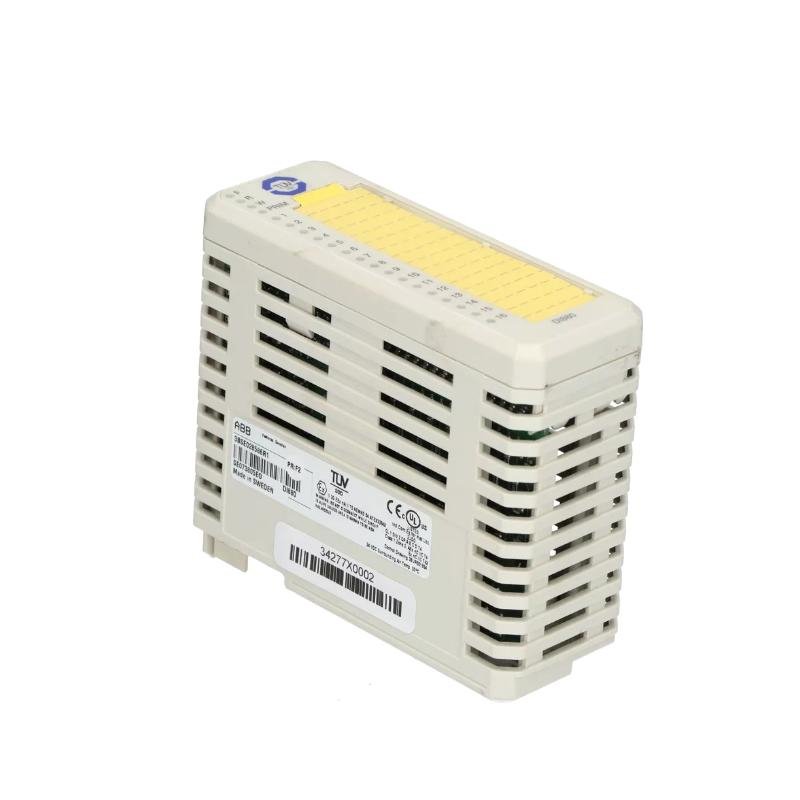

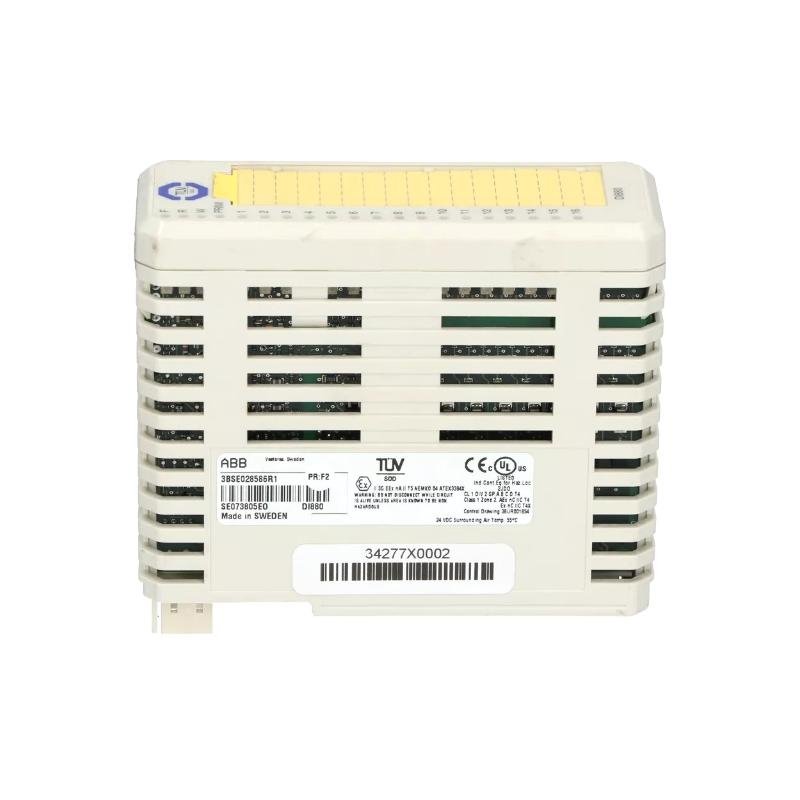

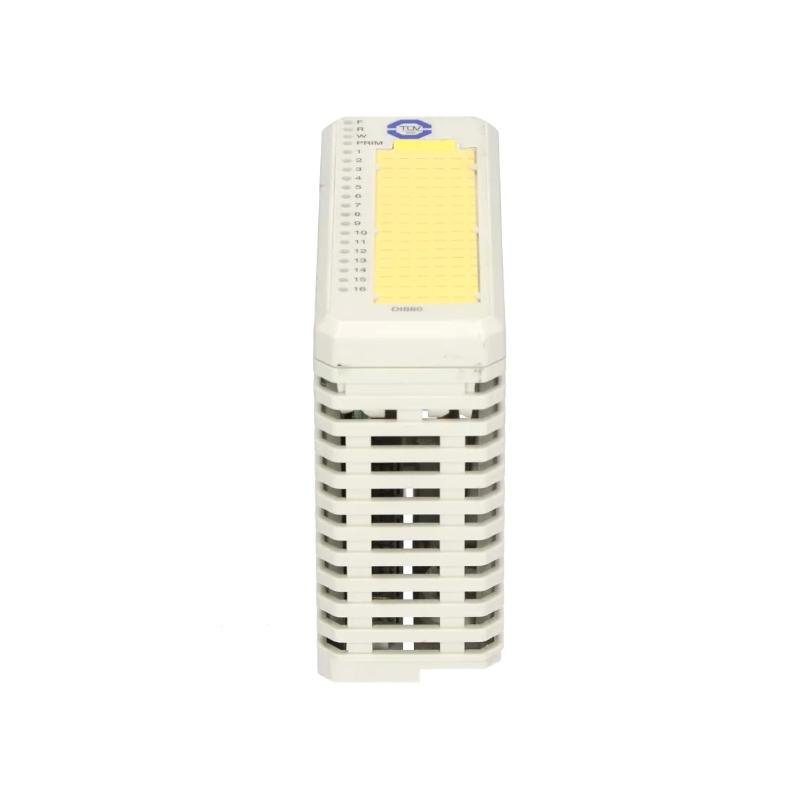

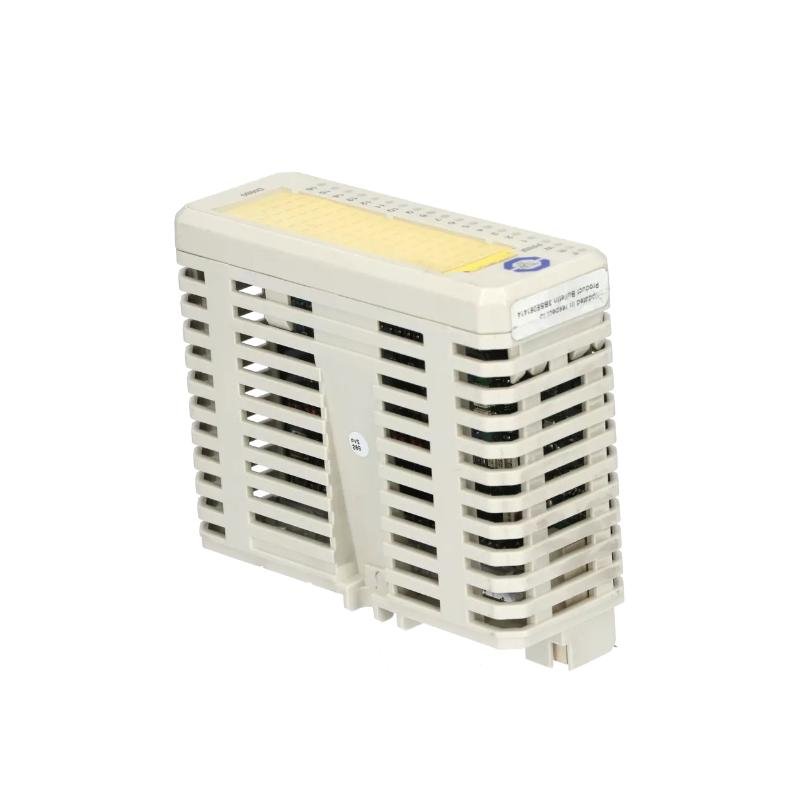

ABB DI880 3BSE028586R1 Digital Input Module
Manufacturer: ABB
Product Number: DI880 (3BSE028586R1)
Category: Digital Input Module (S800 I/O Series)
Number of Channels: 16
Input Type: 24 V d.c.
Groups: 2 groups of 8 channels
Isolation: Group-wise
Power Supply: 24 V DC
Operating Temperature: -20°C to +60°C
Application: Sensors, switches, pushbuttons
Product Description
The ABB DI880 3BSE028586R1 Digital Input Module is a high-performance module designed for use in industrial automation systems. It provides 16 channels for 24 V d.c. input signals, offering flexibility for various applications such as sensors, switches, and other digital signal devices. The module supports both redundant and single configurations, ensuring reliability and flexibility.
The DI880 module is ideal for applications that require high precision, stability, and robust signal processing capabilities. With its wide input voltage range and long cable support, it is suitable for large-scale industrial automation systems. It also includes advanced diagnostic features, event sequence functionality, and the ability to filter unwanted signals.
Key Features
- 16 Digital Input Channels: Supports 24 V d.c. input, ideal for industrial equipment.
- Individually Isolated Channels: Ensures reliable signal processing with isolation for each input.
- Wide Input Voltage Range: Accommodates 11-30 V input ranges for diverse environments.
- State Indication LEDs: Each channel has a LED indicator to show input status (“0” or “1”).
- Signal Filtering: Provides selectable digital signal filtering for improved signal stability.
- Event Sequence Functionality (SOE): Records input signal changes with a precision of 1 ms, ideal for precise timestamp logging.
- Redundant or Single Application: Suitable for both redundant and single applications, ensuring flexibility.
- Current Limited Sensor Supply per Channel: Ensures stable operation with built-in current-limited sensor power distribution.
Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Width | 45 mm |
| Height | 119 mm |
| Depth | 102 mm |
| Weight | 0.15 kg |
General Information
| Parameter | Value |
| Catalog Description | 16 Channels for 24 V d.c. Digital Input Module |
| Detailed Description | Includes CI814 Communication Interface and TP814 Baseplate |
| Product Type | Digital Input Module |
Electrical Performance
| Parameter | Value |
| Input Voltage Range (“0”) | -30..+5 V d.c. |
| Input Voltage Range (“1”) | 11..30 V d.c. |
| Input Impedance | 3.1 kΩ |
| Maximum Cable Length | 600 meters (656 yards) for d.c. |
| Power Consumption | Max 2.4 W |
Environmental and Certification
| Parameter | Value |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, Non-condensing |
| Protection Class | IP20 |
| Electrical Safety | IEC/EN 61010-1, UL 61010-1 |
| RoHS Compliance | Directive 2011/65/EU |
Industry Applications
The ABB DI880 3BSE028586R1 Digital Input Module is commonly used in industrial applications requiring reliable and efficient signal processing, event recording, and voltage supervision. Its wide voltage range and robust design make it ideal for diverse industrial automation, process control, and data acquisition systems.
Typical applications include:
- Industrial Automation Control Systems: Provides stable digital input for monitoring field devices.
- Process Automation: Real-time monitoring and control of process parameters.
- Device Management and Monitoring: Collects input signal data to monitor and manage industrial equipment.
- Redundant Systems: Suitable for redundant systems, enhancing system reliability.
- High-Precision Event Recording Systems: Provides event sequence functionality for timestamp logging in high-precision applications.
