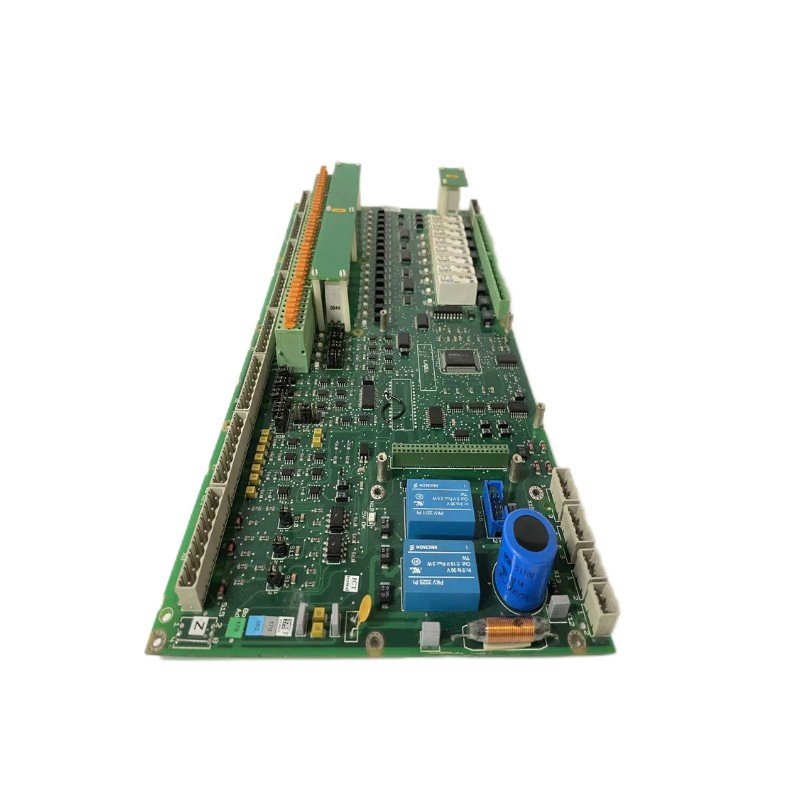

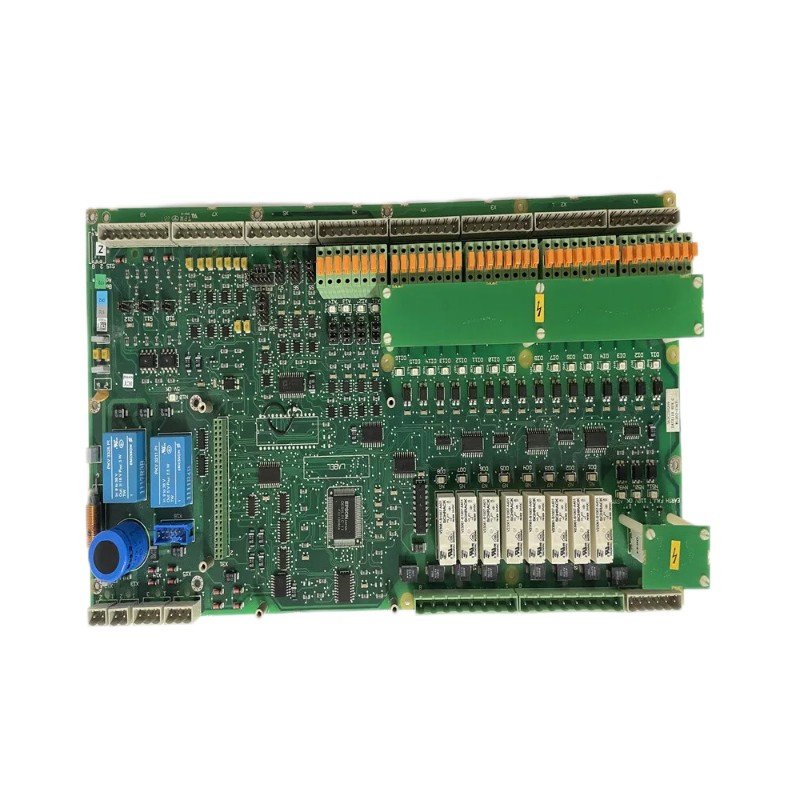

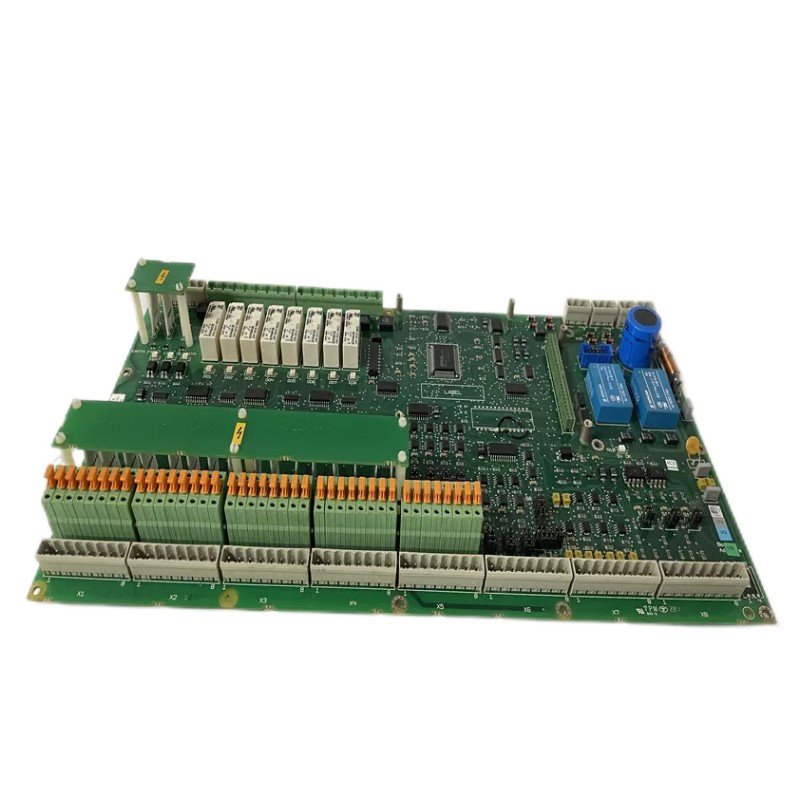

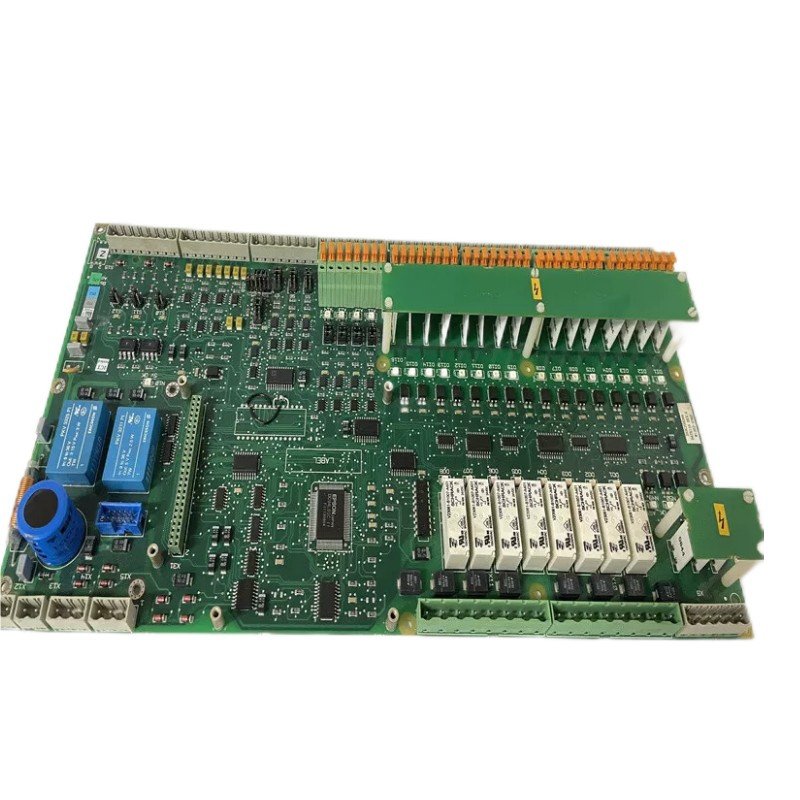

ABB DATX110 3ASC25H209 I/O Board
Manufacturer: ABB
Product Number: DATX110 (3ASC25H209)
Category: I/O Board (ASTAT System)
Number of Channels: 16 (typical)
Signal Types: Digital input/output, analog input/output
Communication Interface: RS-232, RS-485
Operating Temperature: -20°C to +60°C
Power Supply: 24 V DC
Application: Connection with control and feedback systems
Product Description
The ABB DATX110 3ASC25H209 I/O Board is part of the ASTAT system, providing advanced control and I/O communication functionalities in industrial automation systems. This module facilitates connection with control and feedback systems, including communication with modules like DARA, DAPM, and others used in crane and hoisting applications.
Product Overview
The ABB DATX110 I/O Board is specifically designed for use in the ASTAT system, enabling communication between various system components such as the control board, speed feedback, and the cabin I/O modules. It offers enhanced flexibility for system configuration, including support for master-follower motion control, overload protection, and specialized input/output configurations. This module plays a critical role in managing the I/O operations for motion control systems.
Key Features
- Modular designfor easy integration within ASTAT system.
- Fiber optic connectionsfor fast data exchange, including between control and feedback modules.
- Configurable I/O portsfor various industrial applications such as crane and hoist systems.
- Digital and analog inputs/outputsto support complex measurement and control tasks.
- Robust protection standardswith IP20 rating, ensuring durability in industrial environments.
Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Depth (Length) | 61 mm |
| Height | 110 mm |
| Width | 75 mm |
| Weight | 0.75 kg |
General Information
| Parameter | Value |
| Product ID | 3ASC25H209 |
| ABB Type Designation | DATX110 |
| Product Type | I/O Board |
| Power Supply | 24 V DC |
Electrical and Communication
| Parameter | Value |
| Input Voltage Range | 24 V DC |
| Input Current | 6 mA (typical) |
| Communication Protocol | Proprietary ASTAT System |
| Isolation | Yes, isolated groups |
| Maximum Field Cable Length | 600 meters |
Environment and Certification
| Parameter | Value |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5 to 95 %, non-condensing |
| Protection Class | IP20 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
Industry Applications
The ABB DATX110 I/O Board is primarily used in industrial motion control systems, including:
- Cranes and Hoists: Monitoring and controlling motor operations, speed feedback, and position.
- Overload Protection Systems: Ensuring safety through precise feedback mechanisms.
Heavy Industry Automation: Integration with advanced control systems for reliable operation in harsh conditions.
