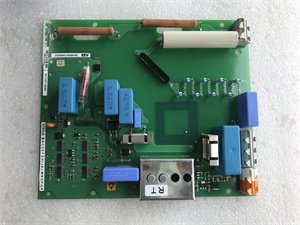

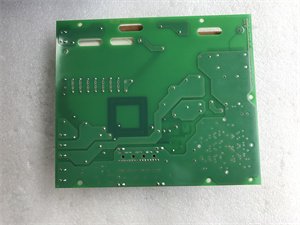

ABB XVC517AE02 3BHB004744R0002 Gate Driver Unit

The ABB XVC517AE02 3BHB004744R0002 is a high-reliability gate driver unit designed for medium-voltage (MV) industrial applications, particularly within ABB’s AC 800M DCS (Distributed Control System) framework. As a critical component for power electronics systems, this module provides precise control and monitoring of high-voltage devices such as IGCTs (Integrated Gate-Commutated Thyristors) or thyristors, ensuring stable operation in harsh industrial environments. The XVC517AE02 3BHB004744R0002 features a modular design with 2 Ethernet channels for seamless integration into distributed control networks, supporting real-time communication and diagnostics. Built with a rugged aluminum casing, it operates within a wide temperature range (+5°C to +55°C) and meets IP20 standards for DIN rail mounting. Its MPC860 processor (24 MHz clock) and 36 MB memory enable efficient signal processing, making it ideal for applications requiring high-power switching and fault protection.

Technical Specifications

Advantages and Features

• High-Power Control: Optimized for MV applications, delivering reliable switching for industrial drives, energy storage systems, and power distribution grids.
• Modular Design: Hot-swap capability reduces downtime, while standardized interfaces simplify maintenance and upgrades.
• Wide Environmental Tolerance: Operates in extreme temperatures (+5°C to +55°C) and withstands vibrations, ensuring durability in challenging settings.
• Advanced Diagnostics: Real-time fault logging and predictive maintenance features enhance system safety and efficiency.
• Energy Efficiency: Low power consumption (<5W) combined with high-frequency switching (52 Hz output) minimizes operational costs.

Application Areas and Use Cases

Industries:

• Energy (power plants, renewable energy integration)
• Manufacturing (heavy machinery, motor drives)
• Oil and gas (pump systems, compressor controls)
• Transportation (railway power conversion)

Case Study:

A German industrial complex deployed the XVC517AE02 3BHB004744R0002 in its MV motor drive system. The module’s precise gate control reduced harmonic distortion by 20%, improving motor lifespan and energy efficiency. Its redundant protection mechanisms also eliminated unplanned shutdowns, saving over €50,000 annually in maintenance costs.

Competitive Comparison

Compared to similar MV gate driver units:

• Superior Integration: Native compatibility with ABB’s AC 800M DCS reduces configuration complexity (vs. generic third-party modules).
• Extended Temperature Range: Operates reliably in higher temperatures (+55°C max) compared to standard units (typically +50°C).
• Diagnostic Depth: Built-in error logging and Ethernet connectivity enable proactive maintenance, outperforming modules with basic fault alerts.

Selection Recommendations

• System Compatibility: Ensure compatibility with ABB’s AC 800M series or MV-GDR platforms.
• Environment: Match operational temperature (+5°C to +55°C) and vibration requirements.
• Functionality: Verify Ethernet channel needs (2 channels standard for distributed control).
• Budget: Balance upfront cost (≈€1,200–€1,800) with long-term savings from reduced downtime and energy efficiency.

Installation and Maintenance Notes

• Safety: Disconnect power before installation; follow ESD precautions.
• Mounting: Secure via DIN rail (IP20) in a dust-free environment.
• Power Supply: Use stable 24 V DC with surge protection.
• Firmware: Update regularly via ABB’s official tools for optimal performance.
• Testing: Conduct dielectric tests (500 V AC) during commissioning and annual inspections.
