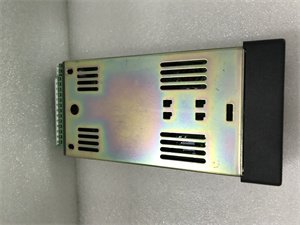

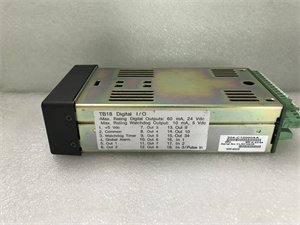

Watlow ANAFAZE CLS204 temperature controller
Manufacturer: Watlow
Product Number: ANAFAZE CLS204
Category: Temperature Controller (Anafaze Series)
Number of Control Loops: 4
Input Signal Compatibility: Thermocouple (J/K/T), RTD (Pt100)
Output Types: Relay, SSR drive, 4-20 mA
Control Algorithm: Advanced PID with auto-tuning
Accuracy: ±0.1°C
Operating Temperature: 0°C to +50°C
Product Description
The Watlow ANAFAZE CLS204 is a high-performance temperature controller designed for precise temperature control in various industrial applications. It features advanced control algorithms and multiple input/output options, making it suitable for a wide range of processes.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | Watlow ANAFAZE CLS204 |
| Control Algorithm | PID, ON/OFF |
| Input Types | Thermocouples, RTDs, mA, V |
| Output Types | Relay, Solid-State Relay (SSR), Analog |
| Display | LED or LCD (depending on configuration) |
| Power Supply | 110/220V AC (verify specific model details) |
| Operating Temperature | -20°C to +70°C |
| Communication | RS-485, Ethernet (optional) |
| Installation | Panel mount or DIN rail mount |
High-Precision Control: Utilizes advanced PID control algorithms to ensure precise temperature control.
Multiple Control Modes: Supports various control modes, including PID and ON/OFF, to meet different application needs.
Flexible Configuration: Offers multiple input and output options, making it suitable for a variety of temperature sensors and actuators.
User-Friendly Interface: Equipped with an intuitive display and control interface for easy setup and monitoring.
Reliable Performance: Designed for long-term operation in harsh industrial environments.
Wide Application Range: Suitable for applications in plastic processing, food processing, chemical processing, and more.
The Watlow ANAFAZE CLS204 is widely used in various industrial fields, including:
Plastic Processing: For temperature control in injection molding machines and extruders.
Food Processing: For temperature regulation in ovens and freezing equipment.
Chemical Processing: For temperature control in reactors and drying equipment.
Semiconductor Manufacturing: For precise temperature control in wafer heating and annealing processes.
Laboratory Equipment: For temperature control in experimental setups.
HVAC Systems: For managing heating and cooling systems.
Installation and Maintenance
Installation Preparation: Verify supply voltage stability (±5%) before mounting the CLS204 near high-frequency inverters. Use shielded twisted pairs for thermocouple connections in EMI-intensive environments.
Maintenance Recommendations: Calibrate input channels annually using traceable standards (NIST/IEC 60751). Clean ventilation slots quarterly in dusty environments using low-pressure air.
Product Guarantee
The Watlow ANAFAZE CLS204 is backed by a warranty from the supplier, ensuring the quality and reliability of the product.
