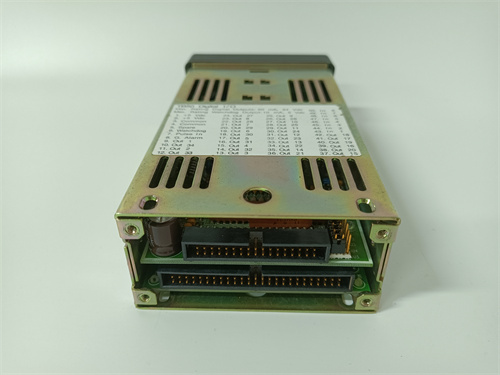

WATLOW ANAFAZE CLS208 Product Overview

WATLOW ANAFAZE CLS208 is a powerful system module.As part of the ANAFAZE modular process control system,it has a wide range of applications in industrial process control,thermal management,heating systems and other fields.The following is a detailed introduction to the product.

Manufacturer and compatibility

Manufacturer:Watlow Electric Manufacturing Company

Compatibility:ANAFAZE modular process control system

Input and output

Analog input:16(0-10VDC or 4-20mA)

Digital input:8(24VDC)

External reference input:1(0-10VDC)

Analog output:16(0-10VDC or 4-20mA)

Digital output:8(24VDC)

These input and output channels allow precise control of a wide range of process variables.

Control function

PID control:CLS208 supports proportional-integral-derivative(PID)control algorithm,which provides fast and precise temperature control,can reduce temperature fluctuations,and ensure that the temperature is maintained near the set value.

Switch control:In addition to PID control,switch control function is also supported to meet different control needs.

Ramp/holding control:Provides ramp and hold control functions to optimize the heating and cooling process.

Display and alarm

Display interface:Usually equipped with a digital display to display the current temperature,set value and other relevant information,which is convenient for users to view and control in real time.

Alarm function:When the temperature exceeds the set range,it has an alarm function to issue an alarm to remind users to take timely measures.

Communication and integration

Communication interface:Supports RS-232 serial communication and ANAFAZE communication protocol,which is convenient for data exchange with other devices or systems.

System integration:As part of the ANAFAZE modular process control system,CLS208 can work with other modules to achieve more complex control tasks.

VI.Power supply and working environment

Power supply requirements:90-250VAC,47-63Hz,maximum 180VA.

Working temperature:0 to 50 degrees Celsius.

Storage temperature:-20 to 70 degrees Celsius.

VII.Dimensions and Weight

Dimensions:43.2 cm x 38.1 cm x 8.9 cm(17 in x 15 in x 3.5 in).

Weight:6.4 kg(14.1 lbs).

Applications

WATLOW ANAFAZE CLS208 temperature controller is commonly used in a variety of industrial and laboratory applications,including heat treatment,chemical,pharmaceutical,food processing,laboratory equipment,etc.
