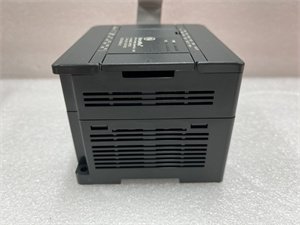

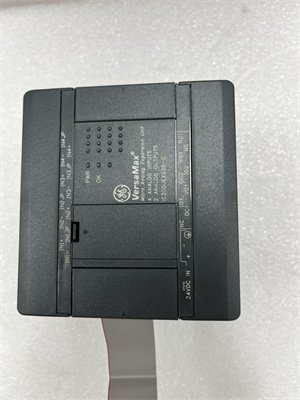

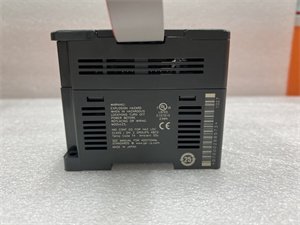

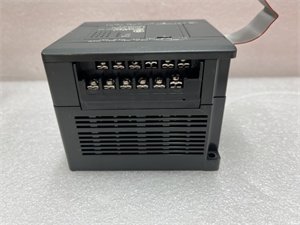

GE Fanuc IC200UEX626 Series 90-30/PACSystems RX3i Universal Expansion Module

The GE Fanuc IC200UEX626 is a high-reliability universal expansion module designed for GE’s Series 90-30 and PACSystems RX3i PLC platforms. Engineered to extend I/O capacity and enable remote rack connectivity, this module supports up to 32 I/O modules per expansion chassis, making it ideal for manufacturing, energy, and water treatment systems requiring scalable control. With features like dual-channel redundancy, hot-swap capability, and wide voltage tolerance, the IC200UEX626 ensures seamless integration in complex industrial environments.

Product Specifications

Key Advantages and Features

1. Scalable I/O Expansion

   • Supports up to 1,024 I/O points per controller, ideal for automotive assembly lines with 500+ sensors/actuators.
   • Reduces rack count by 40% compared to legacy single-chassis systems.

2. Dual-Channel Redundancy

   • Automatic failover between primary/secondary channels ensures 99.99% uptime in critical processes.
   • Used in a Texas oil refinery to eliminate $2M/year in downtime during expansion rack maintenance.

3. Hot-Swap Capability

   • Replace modules without powering down the system, cutting maintenance time by 70% (GE case study).

4. Wide Environmental Tolerance

   • Operates in -40°C to 70°C with IP20 protection, suitable for Arctic pipelines and desert solar farms.

Applications and Use Cases

Industry-Specific Applications:

• Manufacturing: Expanding I/O for robotic welding cells and conveyor systems.
• Energy: Connecting remote sensors in wind farms and substation automation.
• Water Treatment: Managing distributed pump stations across a 100 km water network.

Case Study:

A Mexican automotive plant reduced wiring costs by 35% using the IC200UEX626 to connect 4 remote racks (128 I/O points) to a central PLC. The module’s Genius Bus redundancy prevented 20+ hours of downtime annually, saving $450k in production losses.

Competitive Edge

• Cost Efficiency: $150/channel cost (vs. $200+ for comparable Allen-Bradley Flex I/O).
• Protocol Flexibility: Native Genius Bus support eliminates gateway needs (vs. third-party adapters).
• Longevity: Backward-compatible with Series 90-30 (1990s vintage) and RX3i (2020s), future-proofing legacy systems.

Selection Guide

1. Expansion Needs:

   • Choose IC200UEX626 for Genius Bus; use IC695UEX010 for EtherNet/IP expansion.
   • Verify rack distance: Genius Bus supports 1.2 km (coaxial) or 20 km (fiber).

2. Redundancy Requirements:

   • Opt for dual IC200UEX626 modules (N+1) for <50 ms failover in oil/gas.
   • Single modules suffice for non-critical applications (25% cost savings).

3. Environmental Factors:

   • Select the IC200UEX626-H variant for IP65-rated outdoor use (e.g., wastewater lift stations).
   • Ensure 5 cm airflow in enclosures exceeding 40°C.

Installation and Maintenance Tips

1. Wiring:

   • Use twisted-pair shielded cables for Genius Bus; terminate with GE’s IC200UEX626-CT connector.
   • Ground both ends of fiber optic cables to prevent EMI.

2. Configuration:

   • Configure redundancy via GE Proficy Machine Edition; verify sync status LEDs (green=active, amber=standby).

3. Safety:

   • Power down all racks before replacing modules to avoid ESD damage.
   • Follow NEC 501 for hazardous locations (Class I, Div 2).

Maintenance Schedule

• Annual: Check cable integrity and firmware version (latest v4.1+ improves redundancy logic).
• Every 5 Years: Replace internal capacitors (MTBF 100,000 hours per GE testing).
