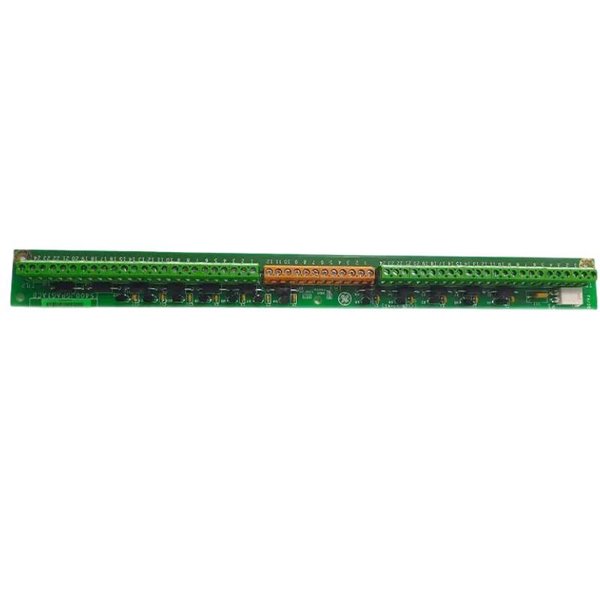

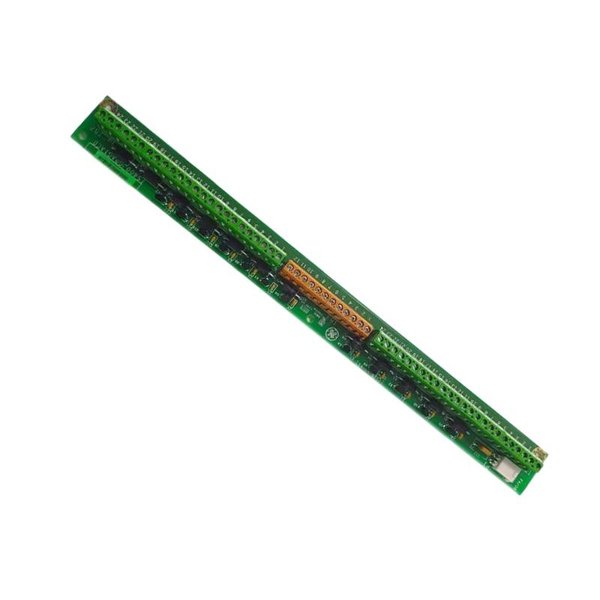

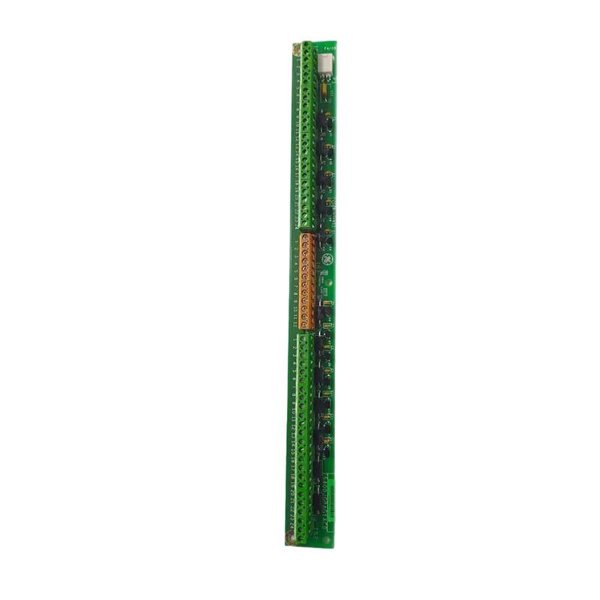

The GE IS400JGPAG1A Ground Terminal Board is an industrial-grade component designed for secure and efficient grounding in automation and control systems. It is part of the GE IS400 series, engineered to provide reliable electrical grounding for PLC racks, I/O modules, and associated industrial control devices.

The IS400JGPAG1A ensures safe dissipation of electrical currents to prevent equipment damage, reduce electrical noise, and maintain system stability. Its robust design is suitable for high-demand industrial environments, including manufacturing facilities, power distribution panels, and automation control cabinets.

This terminal board is particularly valued for its modular design, ease of installation, and compatibility with various IS400 series components, making it an essential part of industrial automation infrastructure.

Product Specifications

Applications

The IS400JGPAG1A Ground Terminal Board is widely used in industrial and automation sectors. Typical applications include:

• PLC Rack Grounding: Ensures safe grounding for IS400 series PLCs and associated modules.

• Control Cabinets: Provides centralized grounding for electrical components, reducing electrical noise and interference.

• Power Distribution Panels: Serves as a safe connection point for protective grounding of power lines.

• Automation Systems: Supports grounding of sensors, actuators, and I/O modules in industrial automation setups.

• Industrial Manufacturing: Used in production lines and process control systems to ensure electrical safety and system stability.

• Energy and Utility Systems: Supports grounding in substations, renewable energy systems, and critical infrastructure.

Advantages

The GE IS400JGPAG1A Ground Terminal Board offers several advantages for industrial applications:

• High Conductivity: Constructed from copper to ensure low-resistance grounding paths.

• Robust Design: Durable materials withstand industrial environmental conditions.

• Easy Installation: DIN rail and panel mounting options allow flexible integration.

• Safety Compliance: Meets UL and CE standards for electrical safety.

• Modular Configuration: Supports multiple connection points in a compact footprint.

• Noise Reduction: Helps minimize electrical noise and interference in sensitive automation systems.

• Versatility: Compatible with a wide range of GE IS400 series modules and PLC systems.

• Maintenance-Friendly: Clear labeling and easy-access terminals reduce installation and service time.

FAQ

1. What is the maximum current rating for each terminal on the IS400JGPAG1A?

   Each terminal can safely handle up to 30 A of current, providing robust grounding for industrial devices.

2. What types of devices can be grounded using this terminal board?

   PLCs, I/O modules, sensors, actuators, control panels, and associated industrial automation devices.

3. What is the voltage rating of the terminal board?

   The IS400JGPAG1A is rated for up to 600V AC or DC.

4. What materials are used in the construction of the board and terminals?

   High-conductivity copper terminals with a polyamide insulated base and protective coating.

5. Does the terminal board support DIN rail and panel mounting?

   Yes, the board can be mounted on standard DIN rails or directly to panels for flexible installation.

6. Can multiple wires be connected to a single terminal?

   Yes, screw terminals allow secure connection of multiple wires while maintaining electrical integrity.

7. Is the terminal board resistant to industrial environmental conditions?

   Yes, it operates reliably in temperatures from -20°C to 70°C and humidity up to 95% non-condensing.

8. Does this terminal board provide electrical noise reduction?

   Yes, it helps minimize electrical noise and interference by providing a centralized, low-resistance grounding point.

9. Is the terminal board compatible with other IS400 series modules?

   Yes, it is fully compatible with GE IS400 series PLCs, I/O modules, and associated automation components.

10. Are there safety certifications for industrial compliance?

    Yes, the IS400JGPAG1A is UL and CE certified, meeting standard industrial electrical safety requirements.
