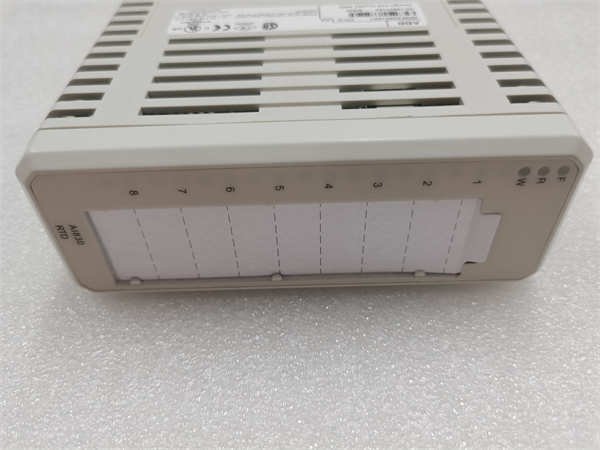

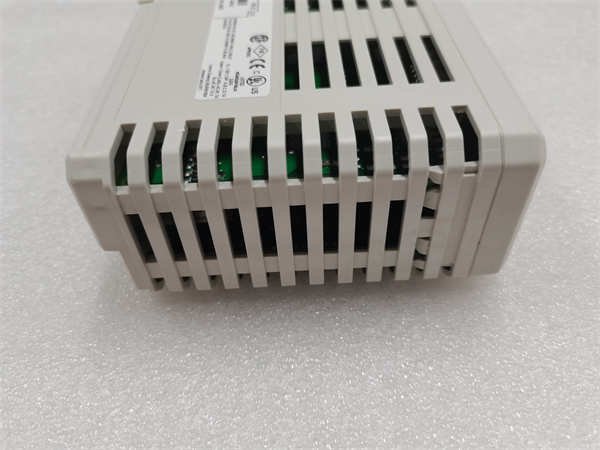

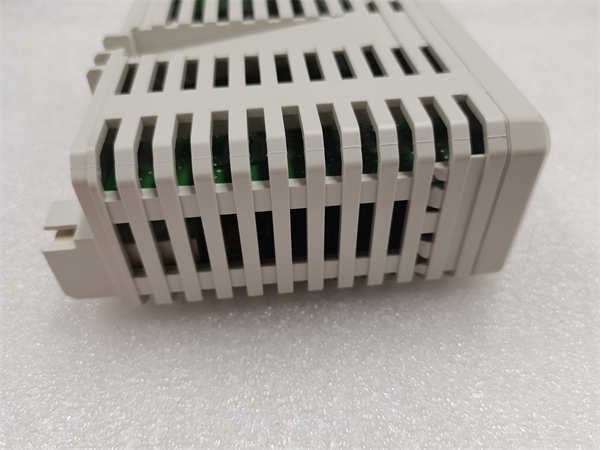

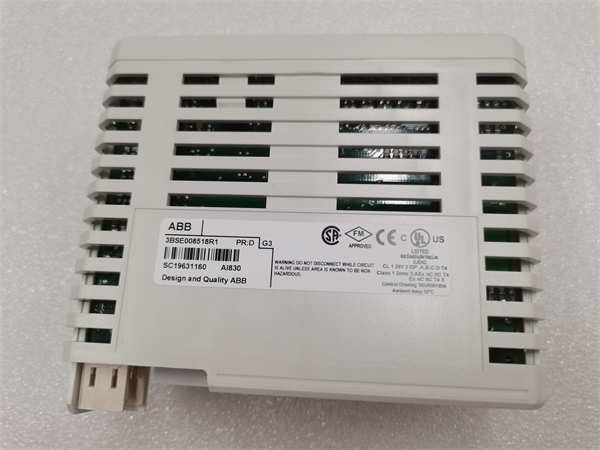

ABB AI830 Analog Input Module
Manufacturer: ABB
Product Number: AI830
Category: Analog Input Module (S800 I/O System)
Number of Channels: 8 RTD inputs
Supported RTD Types: Pt100, Ni100
Resolution: 16 bits
Accuracy: ±0.5°C
Isolation: 500 V
Operating Temperature: -20°C to +60°C
System Compatibility: ABB Advant controllers
Product Description
The ABB AI830 is a high-precision analog input module designed for measuring temperature using resistance temperature detectors (RTDs) in industrial automation systems. It is part of the ABB S800 I/O system and is compatible with ABB Advant S800 and Advant-800xA systems. This module features 8 channels that support various RTD types, including Pt100, Cu10, Ni100, and Ni120, as well as resistive sensors. With a 14-bit resolution and 3-wire connection, the AI830 ensures accurate temperature measurements and reliable performance in demanding industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AI830 |
| Manufacturer | ABB |
| Product category | Analog Input Module |
| Input Channels | 8 channels |
| Signal Types | RTD (Pt100, Cu10, Ni100, Ni120, and resistive sensors) |
| Connection Type | 3-wire connection |
| Resolution | 14-bit |
| Isolation | 50V rated isolation |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Dimensions | 119 mm (H) x 102 mm (D) x 45 mm (W) |
| Weight | 0.22 kg |
Core Advantages and Technical Highlights
High Precision and Versatility: The ABB AI830 offers high-precision temperature measurement with a 14-bit resolution, ensuring accurate data acquisition. It supports multiple RTD types and resistive sensors, making it suitable for various industrial applications.
Robust Design: Designed for industrial environments, the ABB AI830 operates reliably within a wide temperature range of 0°C to +55°C. Its IP20 protection rating ensures protection against dust and non-condensing moisture.
Monitoring and Diagnostics: The module monitors inputs for open-circuit, short-circuit, and grounded sensor conditions, enhancing system reliability and safety. Each channel can be individually configured, providing flexibility for different measurement requirements.
Easy Integration: The ABB AI830 integrates seamlessly with ABB’s S800 I/O system and other industrial control systems, simplifying setup and maintenance. It supports PROFIBUS DP and Modbus RTU communication protocols, facilitating integration into existing automation systems.
Typical Application Scenarios
The ABB AI830 is widely used in industries where precise temperature measurement is critical. In manufacturing plants, it monitors process temperatures to ensure product quality and process efficiency. In HVAC systems, the module measures ambient and equipment temperatures for optimal climate control. In chemical processing facilities, it provides accurate temperature data for reaction control and safety monitoring. The ABB AI830 is an ideal solution for applications requiring high precision, fast data processing, and reliable performance.
Installation Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AI830, ensure the environment meets the specified temperature and humidity requirements (0°C to +55°C, 5% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for DIN rail mounting, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the module with a static-free cloth to ensure optimal heat dissipation. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AI830, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the module, ensuring optimal performance and efficiency in their industrial applications.
