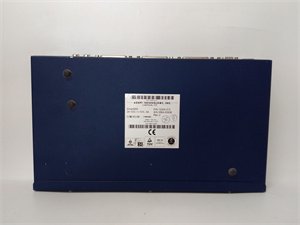

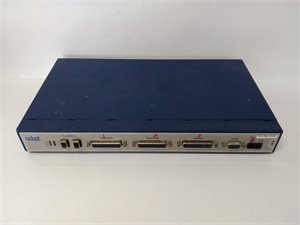

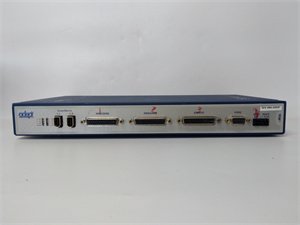

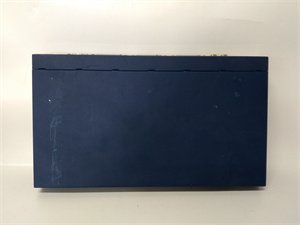

DEIF ADEPT 12000-310 motion control interface module

ADEPT 12000-310 is a high-performance motion control interface module designed for precision automation and robotics applications. As a core component of industrial control systems, ADEPT 12000-310 integrates advanced motion control algorithms, multi-axis synchronization, and robust communication protocols to manage complex tasks in robotics, CNC machining, and automated production lines. Its modular design supports seamless integration with servo drives, PLCs, and SCADA systems, delivering high-speed, high-accuracy control with positioning accuracy up to ±0.1 µm.

Product Parameters

Advantages and Features

• Ultra-High Precision: Achieves sub-micron positioning accuracy (±0.1 µm) through advanced PID algorithms and 16-bit encoders.
• Multi-Axis Synchronization: Controls up to 32 axes simultaneously, enabling complex robotic arm movements.
• Industrial Durability: Operates in harsh conditions (-20°C to +60°C) with IP65 dust/water resistance.
• Energy Efficiency: Dynamic power management reduces standby consumption by 25%.
• Flexible Programming: Supports IEC 61131-3 languages and preconfigured motion profiles (e.g., S-curve, trapezoidal).

Application Fields and Case Studies

Key Industries:

• Robotics: Multi-axis control for pick-and-place, welding, and 3D printing.
• Manufacturing: CNC machine tools, packaging machinery, and laser cutting systems.
• Energy: Wind turbine pitch control and solar tracking systems.

Case Study:

A semiconductor manufacturing facility implemented ADEPT 12000-310 for wafer handling robots:

• Reduced positioning errors by 95%, achieving alignment accuracy of ±0.05 µm.
• Synchronized 8-axis robotic arms with a cycle time of 1.2 seconds per operation.

Competitive Comparison

• 3× Higher Axis Capacity: 32 axes vs. typical 8–12 axes in similar modules.
• 2× Faster Pulse Frequency: 20 MHz vs. industry average 10 MHz.
• Enhanced Environmental Tolerance: Operates at -20°C, outperforming competitors limited to 0°C.

Selection Guidance

1. System Compatibility: Verify compatibility with servo drives (e.g., Yaskawa, Siemens) and PLC networks.
2. Environmental Needs: Use IP65 enclosures for dusty or wet environments.
3. Scalability: Add expansion modules for additional analog/digital channels.
4. Budget Optimization: Consider refurbished units for non-critical applications.

Important Notes

• Installation:
  • Maintain ≥50 mm clearance from high-voltage (>480 VAC) cables to prevent EMI.
  • Ground the module with ≤1 Ω resistance.
• Maintenance:
  • Update firmware quarterly to patch vulnerabilities.
  • Clean terminals annually with non-conductive solvents.
• Safety:
  • Disable automatic synchronization during manual maintenance.
