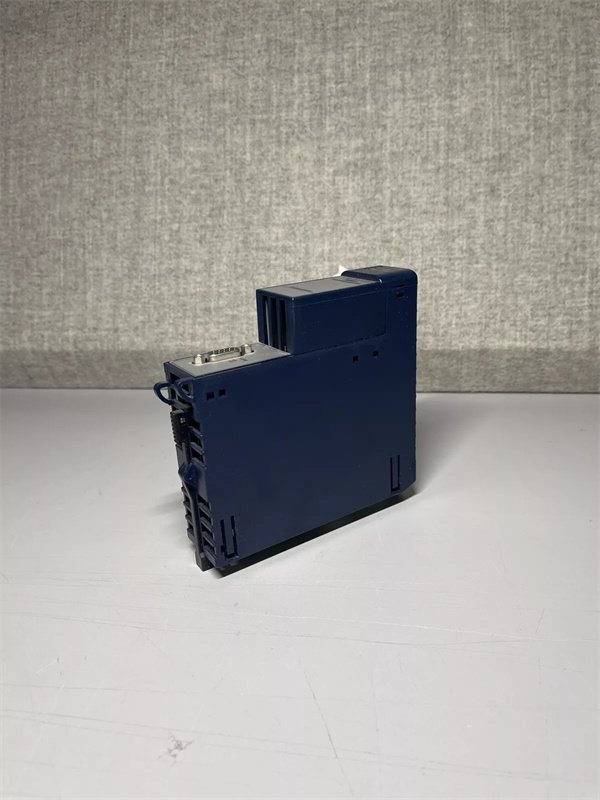

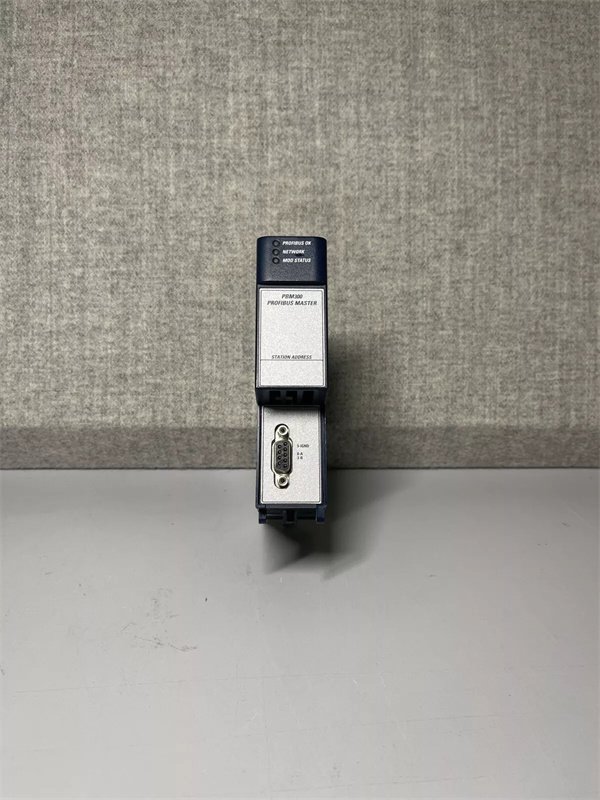

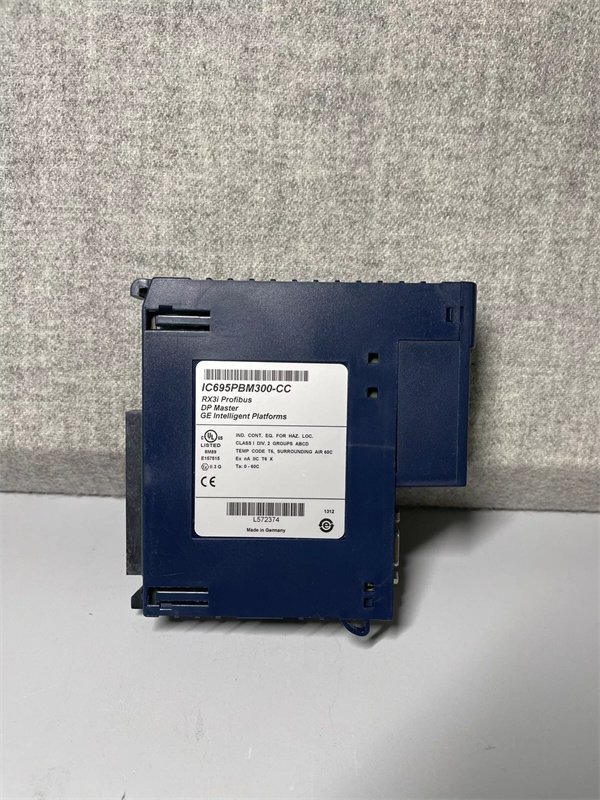

GE Fanuc IC695PBM300 Power Bus Module
Manufacturer: GE Fanuc (Emerson)
Product Number: IC695PBM300
Category: Power Bus Module (90-70 Series PLC)
Output Voltage: 24 V DC
Communication: PROFIBUS DP
Data Rate: Up to 12 Mbps
Operating Temperature: 0°C to +60°C
Application: Provides power and high-speed PROFIBUS communication to PLC racks
Product Description
The IC695PBM300 – CC is a Power Bus Module (PBM) crafted for GE Fanuc’s 90 – 70 Series PLC systems. It acts as a vital component, offering stable 24V DC power to PLC racks and facilitating high – speed PROFIBUS – DP communication for industrial automation setups. With its redundant power input and advanced diagnostic capabilities, the IC695PBM300 – CC is well – suited for mission – critical applications in manufacturing, energy, and transportation.
The IC695PBM300 – CC combines power distribution and communication functions within a single slot. Key aspects are as follows:
- Dual Power Redundancy: It can operate with 120/240V AC input (auto – sensing) and supports redundant power sources, ensuring 99.99% uptime.
- PROFIBUS – DP Master: It can manage up to 125 slave devices at a speed of 12 Mbps, making it suitable for large – scale distributed control systems.
- Real – Time Monitoring: It provides current and voltage feedback through built – in sensors, enabling predictive maintenance and fault detection.
- Compatibility: It is designed for GE 90 – 70 racks such as the IC695CHS02, and it is backward – compatible with legacy modules.
Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | Power Bus Module (Communication – Enabled) |
| Input Voltage | 120/240V AC (50/60 Hz, ±10%) |
| Output Voltage | 24V DC (±5%) |
| Max Output Current | 10A (continuous) |
| Communication | PROFIBUS – DP (DP – V1), 12 Mbps |
| Interfaces | 1x 9 – pin D – sub (PROFIBUS), 2x power terminals |
| Compatibility | GE 90 – 70 PLCs (IC695CPU310/320) |
| Operating Temperature | 0°C–55°C (storage: – 40°C–70°C) |
| Weight | 1.8 lbs (0.8 kg) |
Advantages and Features
- Reliability: It has a MTBF of 600,000 hours (per GE testing) and comes with overload/short – circuit protection, which reduces downtime by 25% compared to non – redundant modules.
- Space Efficiency: It integrates power and communication in one slot, saving 30% rack space compared to separate power and gateway modules.
- Cost Savings: A U.S. automotive plant saved $100,000 annually by using the IC695PBM300 – CC to replace outdated discrete components.
Application Areas and Cases
Industries:
- Automotive (robotics, conveyor systems)
- Water treatment (pump stations)
- Oil & gas (pipeline monitoring)
Case Study:
A German chemical plant employed IC695PBM300 – CC modules to power 8 PLC racks and connect 75 field devices via PROFIBUS – DP. This integration cut wiring costs by 40% and improved alarm response time from 500ms to 100ms.
Competitor Comparison
The IC695PBM300 – CC has the following advantages over similar modules:
- Higher Power Capacity: 10A output vs. 5–8A for most alternatives.
- Native PROFIBUS Support: Eliminates the need for external gateways, unlike generic power modules.
- Wide Voltage Range: It can handle 120/240V AC input without manual switching.
Selection Recommendations
- System Type: Choose the IC695PBM300 – CC for GE 90 – 70 systems; for newer RX3i systems, opt for the IC697PCM711P.
- Redundancy Needs: Use dual IC695PBM300 – CC modules for critical systems to achieve N + 1 redundancy.
Precautions
- Wiring: Use 12AWG wires for power inputs and shielded PROFIBUS cables to prevent EMI.
- Termination: Set the PROFIBUS terminator switch to “ON” when it is the last device on the bus.
- Firmware: Update using Proficy Machine Edition v5.0+ to ensure DP – V1 compatibility.
- Cooling: Ensure a 5cm clearance around the module for proper ventilation.
