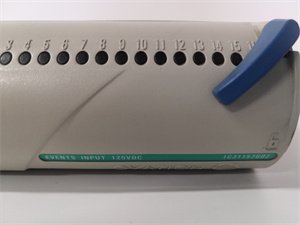

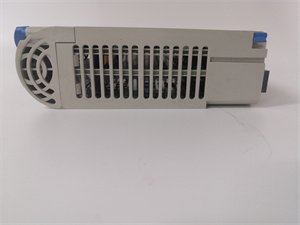

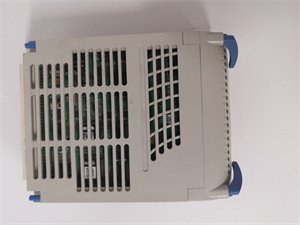

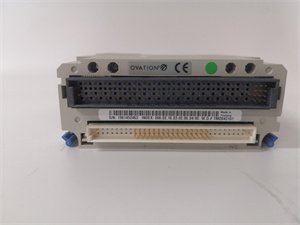

OVATION 1C31157G02 Event Sequence and Control Pulse Module
Manufacturer: Emerson
Product Number: 1C31157G02
Category: Event Sequence and Control Pulse Module (Ovation DCS)
Function: Provides precise event sequence and control pulse functions
Application: Industrial automation and control systems requiring high-performance event logging
Operating Temperature: -20°C to +60°C
Product Description
The Emerson Ovation 1C31157G02 is a high-performance event sequence and control pulse module designed for industrial automation and control systems. It is part of the Ovation™ DCS (Distributed Control System) and is engineered to provide precise control and monitoring capabilities in demanding industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1C31157G02 |
| Manufacturer | Emerson (formerly Westinghouse) |
| Product Category | Event Sequence and Control Pulse Module |
| Operating Voltage | 220 V AC |
| Output Frequency | 30 kHz |
| Number of Channels | 8 channels |
| Communication Protocols | Modbus, Profibus |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L×W×H) | 126.5 mm × 221.5 mm × 65 mm |
| Weight | 1.27 kg |
| Certifications | CE, UL, RoHS |
Core Advantages and Technical Highlights
Event Sequence and Logic Control: The 1C31157G02 supports complex event sequence management and logic control, making it ideal for process automation and equipment coordination. It allows for flexible programming through the Ovation system, enabling users to define custom event triggers and response logic.
High-Speed Pulse Control: The module features high-speed, high-precision pulse signal generation with a frequency range of 50-60 Hz. This capability is essential for applications such as motor control and sensor signal synchronization.
Robust Industrial Design: The 1C31157G02 is designed for industrial environments, featuring an operating temperature range of -20°C to +60°C and a humidity range of 5% to 95% non-condensing. It also has an IP65 protection rating against dust and water ingress.
Communication and Integration: The module supports multiple industrial communication protocols, including Modbus and Profibus, ensuring seamless integration with PLCs and DCS systems. It also provides standard RS232/RS485 communication interfaces.
Compact and Efficient: With dimensions of 126.5 mm × 221.5 mm × 65 mm and a weight of 1.27 kg, the 1C31157G02 is compact and lightweight, making it easy to install and integrate into existing systems.
Typical Application Scenarios
The Emerson Ovation 1C31157G02 is widely used in various industrial sectors, including power plants, manufacturing facilities, and process control systems. It is particularly useful for:
-
Process Control: Monitoring and controlling parameters such as temperature, pressure, and flow rates in chemical plants and power stations.
-
Motor Control: Synchronizing mechanical arms, conveyor belts, and other equipment in manufacturing lines.
-
Power Systems: Monitoring and controlling circuit breakers and transformers in substations.
-
Building Automation: Managing elevator and fire system signals in commercial buildings.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Emerson Ovation 1C31157G02, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1C31157G02 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Emerson Ovation 1C31157G02 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. The module comes with a standard one-year warranty, covering any manufacturing defects. Emerson offers 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1C31157G02 will deliver reliable performance for years to come.
