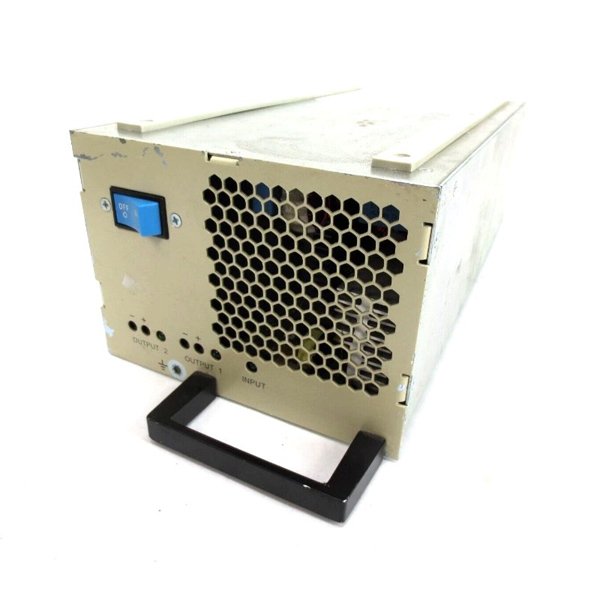

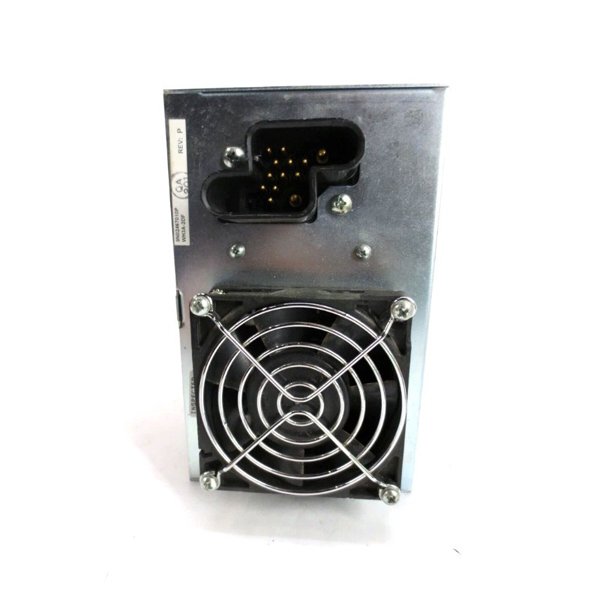

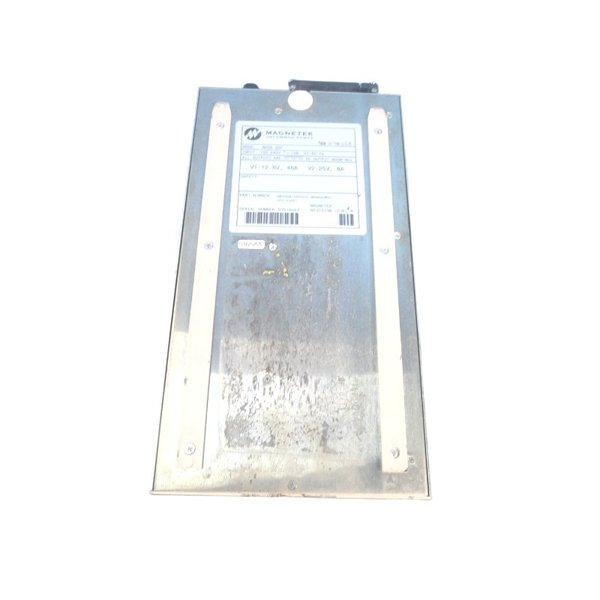

The OVATION 1X00163H01 Power Supply Module is a robust and reliable component designed for Emerson’s Ovation Distributed Control System (DCS). It delivers regulated and stable power to controllers, I/O modules, and communication interfaces, ensuring smooth and uninterrupted process automation.

This module is built with industrial-grade components to withstand harsh environments, providing high efficiency and dependable operation. It plays a critical role in guaranteeing continuous plant performance in industries where downtime is not acceptable.

Product Advantages

• High Reliability: Designed to maintain stable operation in demanding industrial conditions.

• Regulated Power Output: Ensures consistent voltage and current for sensitive control equipment.

• Hot-Swappable Design: Allows replacement without shutting down the entire system.

• Wide Compatibility: Seamlessly integrates into Ovation systems with various modules.

• Fault Protection: Includes overvoltage, overcurrent, and thermal protection features.

• Industrial Durability: Built to handle temperature variations, vibration, and electrical noise.

Technical Specifications

Product Applications

• Power generation plants (thermal, nuclear, hydro, renewable)

• Oil and gas production and refining facilities

• Chemical and petrochemical industries

• Pulp and paper manufacturing

• Water and wastewater treatment plants

• Steel and heavy industrial automation environments

FAQ

Q1: What type of power input does the OVATION 1X00163H01 support?

A1: It supports an input range of 85–264 VAC at 47–63 Hz.

Q2: Can this power supply module operate with redundant configurations?

A2: Yes, it supports redundant configurations for uninterrupted operation.

Q3: How does the module protect against overvoltage conditions?

A3: It uses built-in electronic protection circuits that automatically limit voltage output.

Q4: Is the output isolated from the input?

A4: Yes, galvanic isolation is provided between input and output for system safety.

Q5: Can the power supply module be hot-swapped during operation?

A5: Yes, it is designed to be hot-swappable to avoid system downtime.

Q6: Does the module support DC input in addition to AC?

A6: Some versions allow DC input, but the standard 1X00163H01 is optimized for AC.

Q7: What cooling method is applied to the module?

A7: It primarily uses natural convection, with support for forced air if required.

Q8: How does the module handle load variations?

A8: The regulated output ensures voltage remains stable despite load changes.

Q9: Is there built-in monitoring for power status?

A9: Yes, the module provides status indicators for input and output conditions.

Q10: Can multiple power supply modules be paralleled for higher load capacity?

A10: Yes, modules can be paralleled to increase available current.
