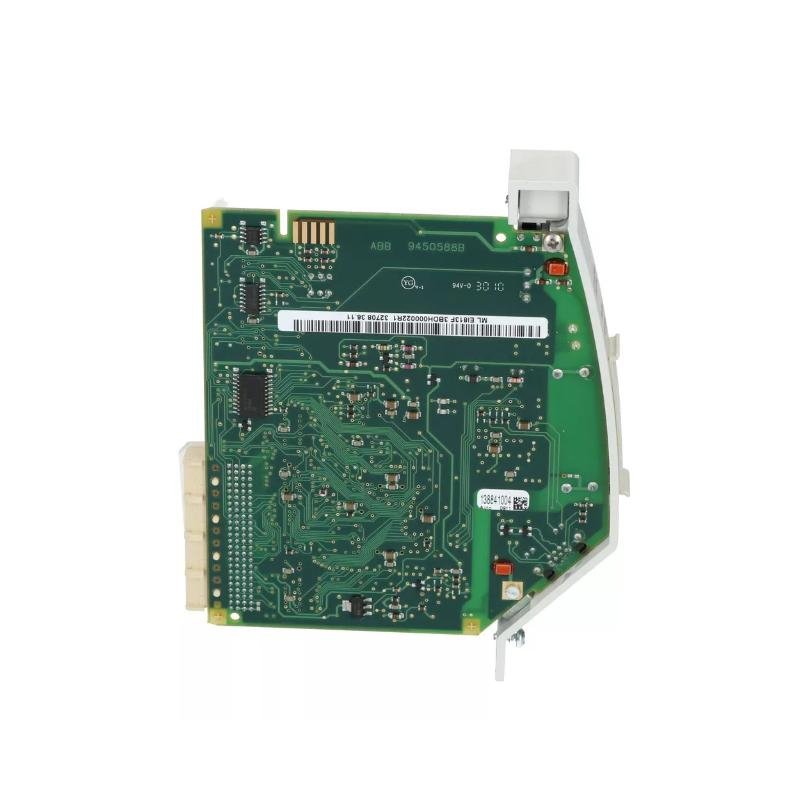

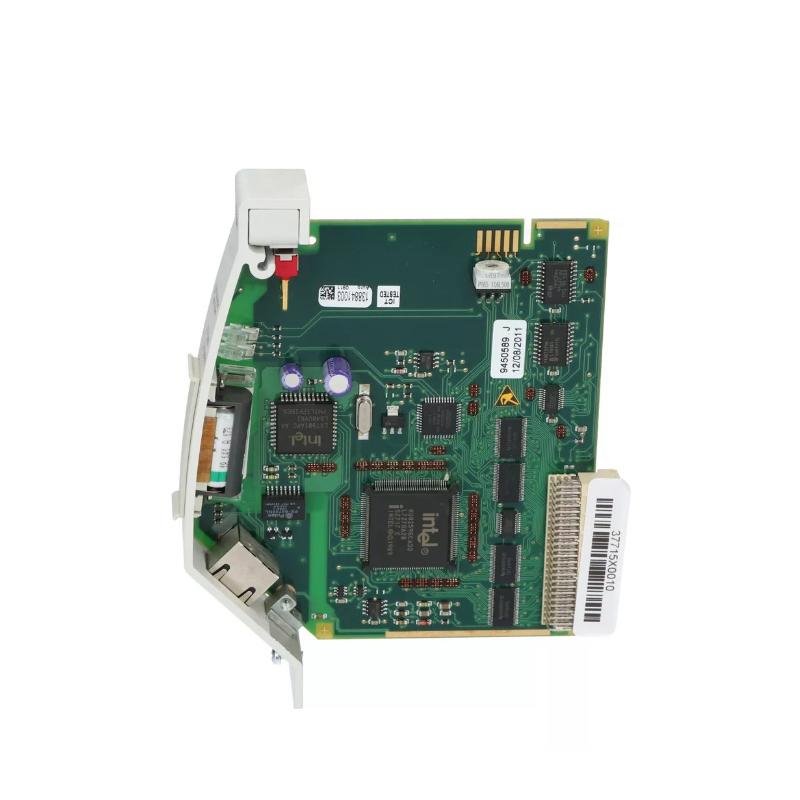

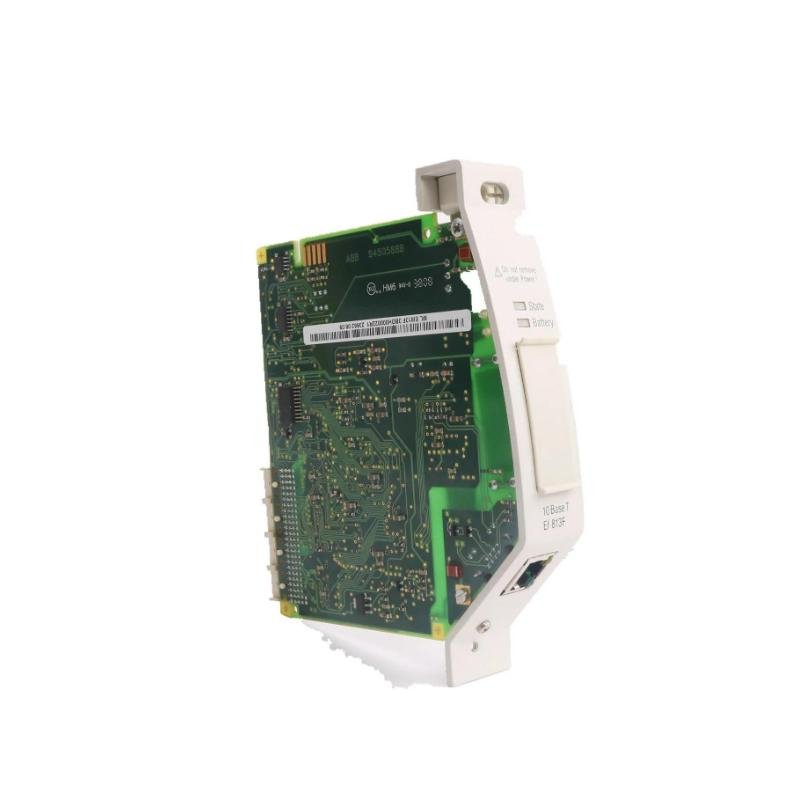

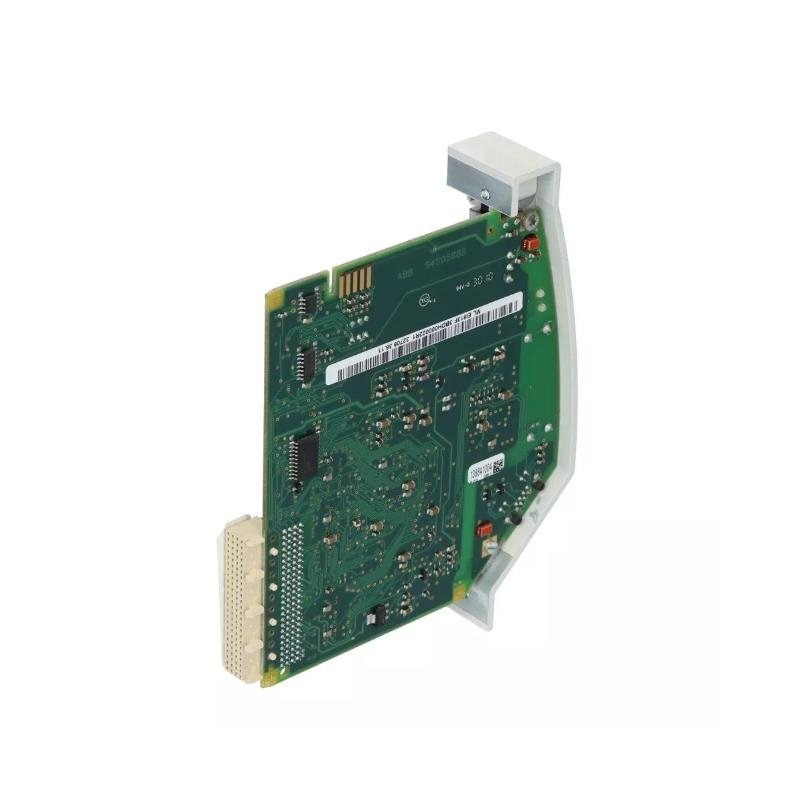

ABB EI 813F 3BDH000022R1 Ethernet Module
Manufacturer: ABB
Product Number: EI 813F (3BDH000022R1)
Category: Ethernet Module (PM 802F / PM 803F Compatible)
Communication: 10BaseT (twisted pair) Ethernet
Data Rate: 10 Mbps
Operating Temperature: -20°C to +60°C
Power Supply: 24 V DC
Product Description
The ABB EI 813F 3BDH000022R1 Ethernet Module is a communication module designed for use with PM 802F or PM 803F. It supports 10BaseT (twisted pair) Ethernet communication technology, enabling efficient data exchange between devices. This module is compact, lightweight, and easy to install, making it suitable for a variety of industrial control and automation applications.
Key Features
- Efficient Communication:Provides reliable Ethernet communication for data exchange between devices like PM 802F and PM 803F.
- Compact Design:The module’s compact size allows for easy installation in spaces with limited room.
- Twisted Pair Connection:Supports 10BaseT Ethernet communication with a standard twisted pair connection, ensuring reliable connectivity.
- Broad Applicability:Suitable for use in various industrial control and automation systems, widely applied in modern manufacturing and equipment monitoring.
- High Reliability:Designed to meet industrial standards, ensuring long-term stable operation in harsh environments.
Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Product Depth/Length | 125 mm |
| Product Height | 155 mm |
| Product Width | 28 mm |
| Product Net Weight | 0.15 kg |
General Information
| Product Type | Communication Module |
| Compatible Devices | PM 802F, PM 803F |
| Battery Included | Not Included |
| Connection Type | 10BaseT Twisted Pair |
Performance Parameters
| Parameter | Value |
| Communication Type | Ethernet (Ethernet) |
| Network Interface | 10BaseT |
| Maximum Data Rate | 10 Mbps |
Industry Applications
- Automation Control Systems:The EI 813F module integrates into automation control systems for communication between various devices, enabling coordinated operations.
- Industrial Equipment Monitoring:The module supports data transmission in equipment monitoring systems, ensuring real-time monitoring and data collection.
Manufacturing Industry: In smart manufacturing, the EI 813F Ethernet module connects various production equipment, ensuring real-time data exchange and efficient operation of control systems.
