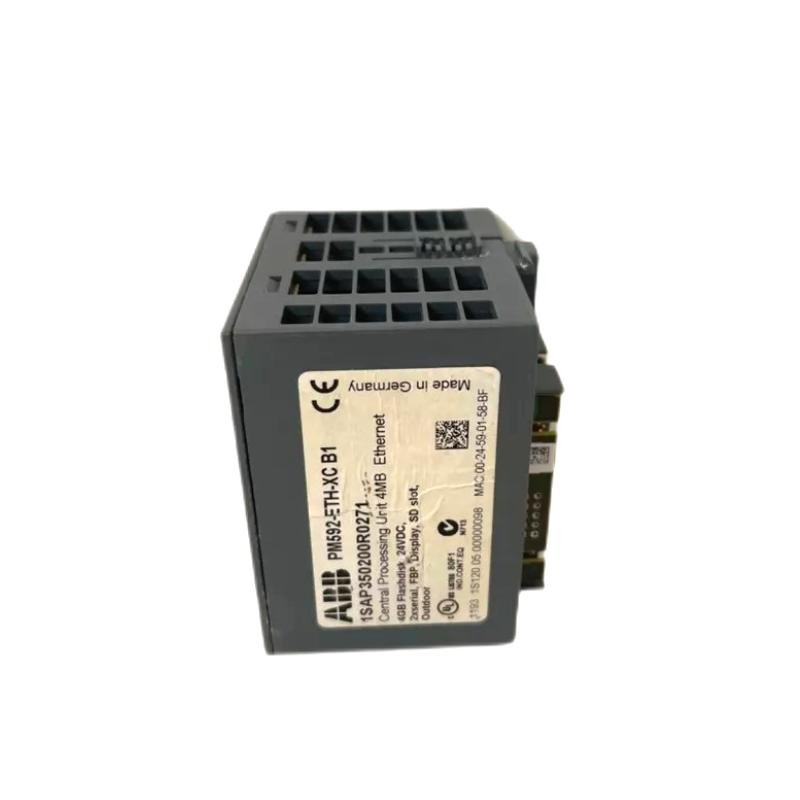

ABB PM592-ETH 1SAP150200R0271 AC500 Processor Module
Manufacturer: ABB
Product Number: PM592-ETH (1SAP150200R0271)
Category: AC500 Processor Module
Processor: 32-bit RISC
Memory: 4 MB RAM, 2 MB Flash
Communication: Ethernet, RS-232, RS-485
I/O Capacity: Up to 1024 points
Operating Temperature: -20°C to +60°C
Application: Reliable processing power for industrial automation systems with robust communication interfaces
Product Description
The ABB PM592-ETH 1SAP150200R0271 AC500 Processor Module is a high-performance and versatile controller designed to offer reliable processing power for industrial automation systems. It integrates a robust suite of communication interfaces, memory, and processing capabilities that make it ideal for managing complex control processes in various industrial applications. The processor module is equipped with 4MB of memory, 4GB of flash storage, and several communication interfaces, including Ethernet, RS232/485, and FBP. It features an LCD display for easy monitoring and interaction.
This processor module is particularly well-suited for operations requiring a high degree of flexibility and control over automation tasks. With its compact design, wide temperature range, and IP20 protection rating, the PM592-ETH can handle demanding environments in industries like manufacturing, energy, and process control systems.
Key Features
- Memory: 4MB total memory, with user data storage of 5632 KB and user program storage of 4096 KB.
- Interfaces: Industrial Ethernet, 2x RS232/485, and FBP for enhanced communication flexibility.
- Flash Storage: 4GB Flashdisk for secure data storage.
- Display: LCD screen for real-time system monitoring and diagnostics.
- Protection Rating: IP20, offering adequate protection for use in industrial environments.
- Temperature Range: Operating range from 0°C to +60°C, with storage from -40°C to +70°C.
- Voltage Supply: 24V DC supply with a wide voltage range of 20.4 to 28.8 V DC.
- Processing Time: Extremely low processing time of just 0.000002 ms, ensuring fast system response.
Technical Specifications
1. Dimensions and Weight
| Parameter | Value |
|---|---|
| Dimensions (W × H × D) | 62 × 76 × 67.5 mm |
| Weight | 0.153 kg |
2. General Information
| Feature | Specification |
|---|---|
| Product Type | AC500 Processor Module |
| Product Code | 1SAP150200R0271 |
| Series | PM592-ETH |
| Degree of Protection | IP20 |
| Rated Voltage (Ur) | 24 V DC |
| Supply Voltage | 20.4 … 28.8 V DC |
| Ambient Temperature | Operation: 0 … +60°C, Storage: -40 … +70°C |
| Controller Processing Time | 0.000002 ms |
3. Memory and Storage
| Memory Parameter | Value |
|---|---|
| Total Memory | 4MB |
| User Data Memory | 5632 KB |
| User Program Memory | 4096 KB |
| Memory Type | RAM |
| Flash Storage | 4GB |
4. Communication Interfaces
| Interface Type | Quantity |
|---|---|
| Ethernet | 1 |
| RS232/485 | 2 |
| FBP | 1 |
5. Display and I/O
| Display Type | LCD |
|---|---|
| Number of Digital I/Os | 0 |
| Number of Configurable I/Os | 0 |
Industry Applications
The ABB PM592-ETH AC500 Processor Module is highly adaptable and suitable for a wide range of industrial applications. Some of the key sectors include:
-
Manufacturing Automation: The processor module is ideal for managing production lines, controlling machinery, and automating repetitive tasks. Its fast processing capabilities and robust memory make it an excellent choice for real-time process control.
-
Energy Management: In energy and utilities, the PM592-ETH can be used for monitoring and controlling power distribution systems, energy grids, and renewable energy installations. The ability to handle multiple communication interfaces ensures seamless integration with different systems.
-
Process Control: In industries such as chemicals, food and beverages, and pharmaceuticals, this processor module is capable of controlling complex, continuous processes that require real-time adjustments and monitoring. The extended temperature range makes it suitable for both cold storage facilities and high-temperature industrial environments.
-
Building Automation: The PM592-ETH is also a great fit for controlling HVAC systems, lighting, and security in large commercial or industrial buildings, offering efficient energy use and system management.
