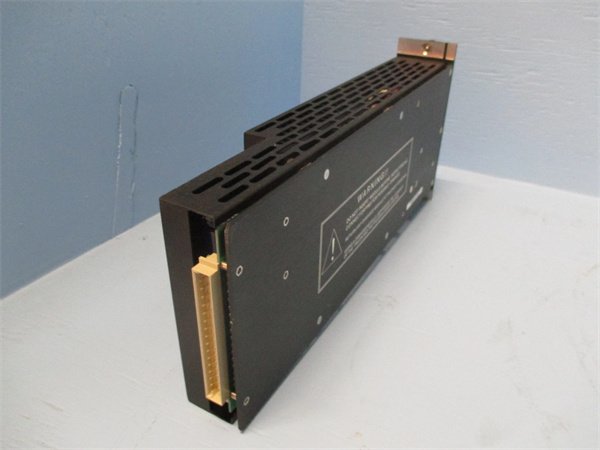

Triconex 8305A analog input module
Manufacturer: Triconex
Product Number: 8305A
Category: Analog Input Module (TMR Control Systems)
Number of Channels: 8
Input Signal Types: 4-20 mA, 0-10 V
Resolution: 16 bits
Architecture: Triple Modular Redundancy (TMR)
Safety Integrity Level (SIL): SIL 3 capable
Application: Safety-critical industrial environments requiring precise and secure signal acquisition
Product Description
Triconex 8305A is a high-reliability analog input module designed for Triconex’s triplex (TMR) control systems, engineered to deliver precise and secure signal acquisition in safety-critical industrial environments. As a key component of the Triconex platform, the 8305A module is built to interface with a wide range of analog sensors, converting raw sensor signals into digital data for processing by the control system. With its triple modular redundancy (TMR) architecture, the 8305A ensures fault tolerance and data integrity, making it ideal for applications where system failure is not an option. The module’s robust design and advanced diagnostics enable seamless integration into industries requiring strict compliance with safety standards, such as oil and gas, power generation, and chemical processing.
Product Parameters
| Parameter | Description |
|---|---|
| Input Channels | 16 isolated analog input channels (configurable for voltage/current signals) |
| Signal Types | 4–20 mA current, 0–10 VDC voltage, RTD, thermocouple (via optional modules) |
| Resolution | 16-bit analog-to-digital conversion with ±0.1% accuracy |
| Redundancy | TMR architecture with self-diagnostic and fault voting capabilities |
| Update Rate | <10 ms per channel (typical) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Certifications | SIL 3 compliant (IEC 61508), ATEX/IECEx for hazardous areas |
| Dimensions | [X] mm (W) × [X] mm (H) × [X] mm (D) (rack-mountable design) |
Advantages and Features
The Triconex 8305A offers enhanced fault tolerance through its TMR design, where each channel is triplicated, and discrepancies are resolved by a majority vote, ensuring that single-point failures do not compromise system integrity. Its advanced diagnostics provide real-time monitoring of channel health, with built-in self-tests (BIST) that detect open/short circuits or signal drift, reducing mean time to repair (MTTR) by up to 50%. The module’s high-speed sampling and noise immunity (EMC/EMI compliance) make it suitable for noisy industrial environments, maintaining signal accuracy even in the presence of electromagnetic interference. Additionally, the hot-swappable design allows for module replacement without powering down the system, minimizing downtime during maintenance.
Application Areas and Use Cases
The 8305A is widely used in industries requiring precise analog signal monitoring, such as:
- Oil and Gas: Monitoring pressure, temperature, and flow rates in refineries and offshore platforms.
- Power Generation: Capturing analog data from turbines, boilers, and generators in power plants.
- Chemical Processing: Controlling reactor conditions and material levels in production lines.
Example Application: In a large natural gas processing plant, the Triconex 8305A was deployed to monitor critical process variables (e.g., pipeline pressure, compressor temperature) in the safety instrumented system (SIS). The module’s TMR architecture ensured that even when one channel detected a fault (e.g., a transient voltage spike), the redundant channels continued to provide accurate data, preventing false trips and maintaining uninterrupted operation.
Competitive Comparison
Compared to non-redundant analog input modules, the 8305A offers superior safety integrity with its SIL 3 certification and TMR architecture, reducing the risk of undetected faults by over 90%. Its wide signal compatibility (supporting multiple sensor types without additional hardware) outperforms single-purpose modules, simplifying inventory management. The module’s real-time diagnostics and hot-swappable design also provide operational advantages over legacy systems, which often require manual calibration and system shutdowns for maintenance.
Selection Recommendations
When selecting the Triconex 8305A, consider:
- Signal Requirements: Ensure the module supports the sensor types (e.g., RTD, thermocouple) and signal ranges in your application.
- Redundancy Needs: Evaluate whether TMR is necessary for your safety integrity level (SIL) requirements.
- Channel Density: Match the number of input channels to your system’s monitoring needs (e.g., 16 channels for medium-scale applications).
- Environmental Conditions: Confirm the module’s temperature and vibration ratings for harsh industrial settings.
Precautions
- Electrical Isolation: Ensure proper grounding and shielding to prevent noise interference with analog signals.
- Hot-Swap Procedure: Follow Triconex’s guidelines for safe module replacement to avoid data corruption or system disruptions.
- Calibration: Regularly verify channel accuracy using Triconex’s recommended tools and procedures (e.g., annual calibration checks).
- Firmware Updates: Keep the module’s firmware up to date to benefit from the latest diagnostics and compatibility improvements.
