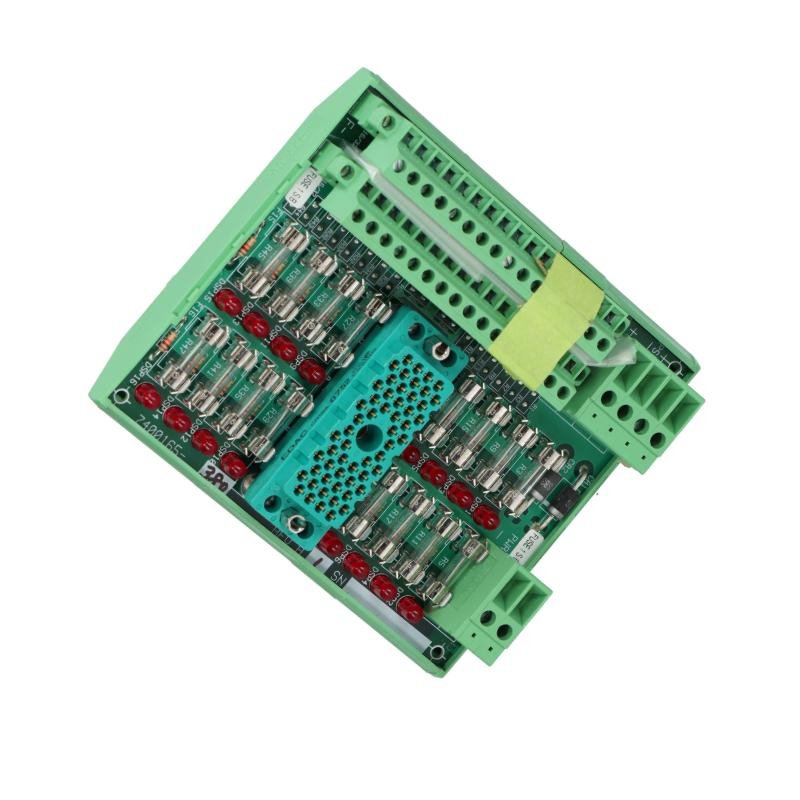

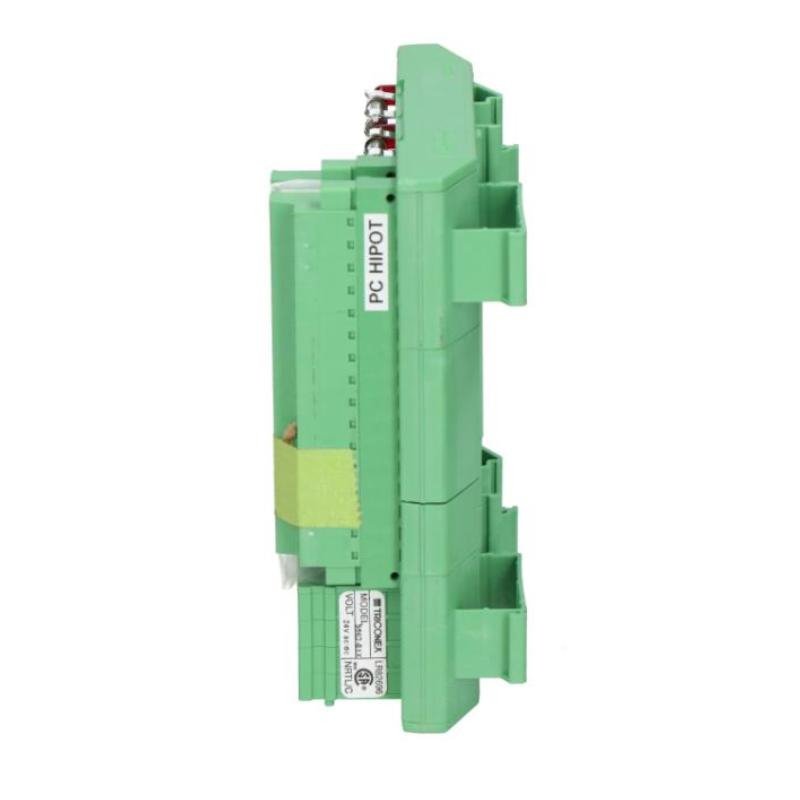

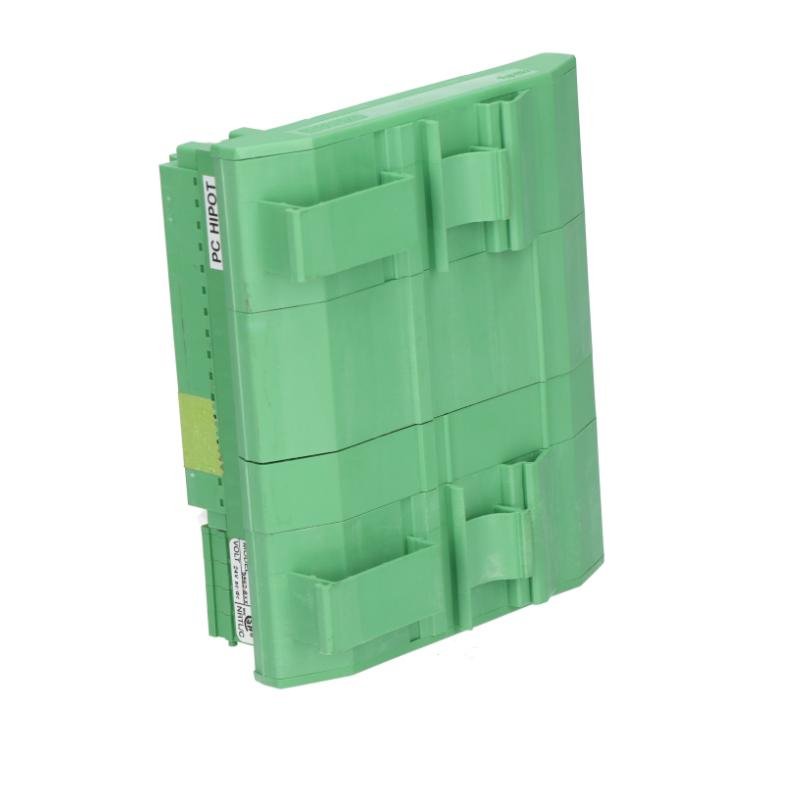

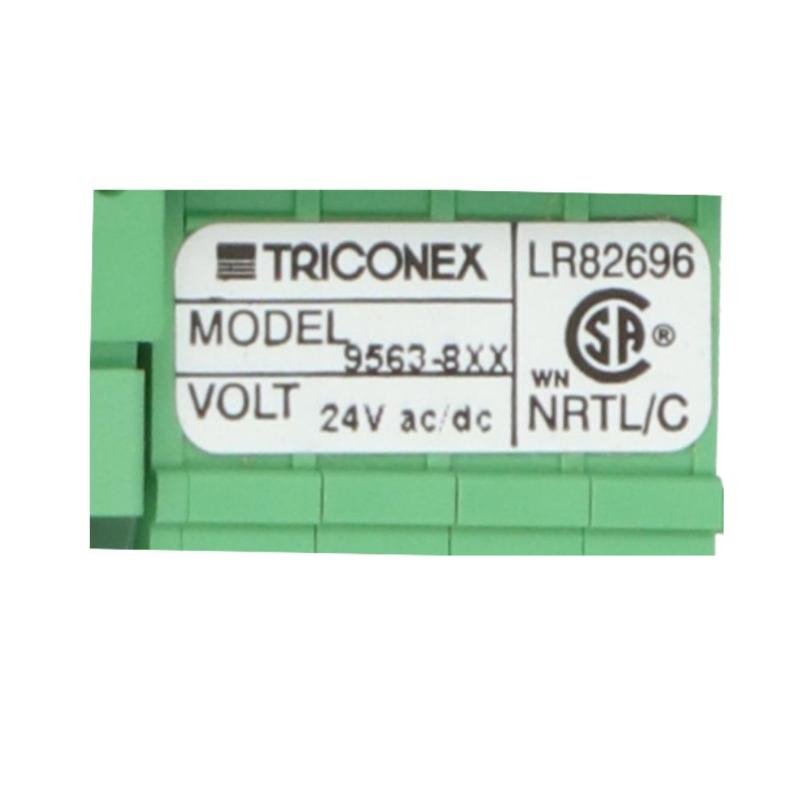

Triconex 9563-8XX Digital Input Terminal Panel
Manufacturer: Triconex
Product Number: 9563-8XX
Category: Digital Input Terminal Panel
Number of Inputs: 32 (typical)
Input Type: 24 V DC
Application: Provides reliable, safe, and accurate digital input handling for critical industrial processes
Product Description
The Triconex 9563-8XX Digital Input Terminal Panel is a crucial component in Triconex’s high-performance safety and control systems. This module provides reliable, safe, and accurate digital input handling for critical industrial processes, ensuring system integrity and real-time monitoring. Designed for use in hazardous and demanding environments, the 9563-8XX offers superior performance for a variety of applications in industries such as oil & gas, chemical processing, and power generation.
Featuring built-in diagnostics and robust construction, the 9563-8XX ensures high availability and low maintenance, making it an ideal choice for systems where uptime is critical. Its ease of integration with other Triconex control systems and support for various communication protocols ensures seamless operation in complex, distributed control systems.
Key Features
-
High Availability: Provides reliable digital input handling to ensure continuous system monitoring and control.
-
Integrated Diagnostics: Built-in diagnostics with LED indicators for easy troubleshooting and fault detection.
-
Real-Time Performance: Optimized for use in time-sensitive applications where fast response times are crucial.
-
Flexible Integration: Compatible with other Triconex and third-party control systems, offering easy system expansion.
-
Harsh Environment Ready: Designed to withstand challenging industrial environments, including high vibration and extreme temperatures.
-
Hot Swappable: Modules can be replaced without shutting down the system, minimizing downtime during maintenance.
-
Built-In Protection: Features such as overvoltage and overcurrent protection to safeguard connected devices and ensure long-term system reliability.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 0.38 kg |
General Information
| Item | Specification |
|---|---|
| Model | 9563-8XX |
| Manufacturer | Triconex |
| Installation | Panel Mount / DIN Rail Mount |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Communication & Performance
| Item | Specification |
|---|---|
| Communication Protocol | Triconex proprietary protocol |
| Max. Digital Inputs | Up to 32 channels per module |
| LED Indicators | Power, Status, Error |
| MTBF | > 200,000 hours |
| EMC Compliance | IEC 61000 series |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Consumption | Max 5 W |
| Current Draw | Max 0.3 A |
| Status Indicators | LEDs for power, communication, fault |
Industry Applications
-
Oil & Gas: Ensures reliable and continuous monitoring and control of critical systems in oil drilling and refinery operations.
-
Chemical Processing: Facilitates real-time data acquisition and process control for chemical manufacturing and processing plants.
-
Power Generation: Provides reliable input handling for safety-critical systems in power plants and energy management.
-
Industrial Automation: Integrates seamlessly with automation systems for monitoring and controlling a wide variety of industrial processes.
-
Water Treatment: Supports control systems in water and wastewater management plants, ensuring stable operations and system integrity.
-
Safety Systems: Used in emergency shutdown systems, fire and gas detection systems, and other safety-critical applications.
The Triconex 9563-8XX Digital Input Terminal Panel is a vital component in ensuring the reliability and safety of industrial control systems. Its robust construction, high performance, and ease of integration make it ideal for use in mission-critical applications across various industries.
