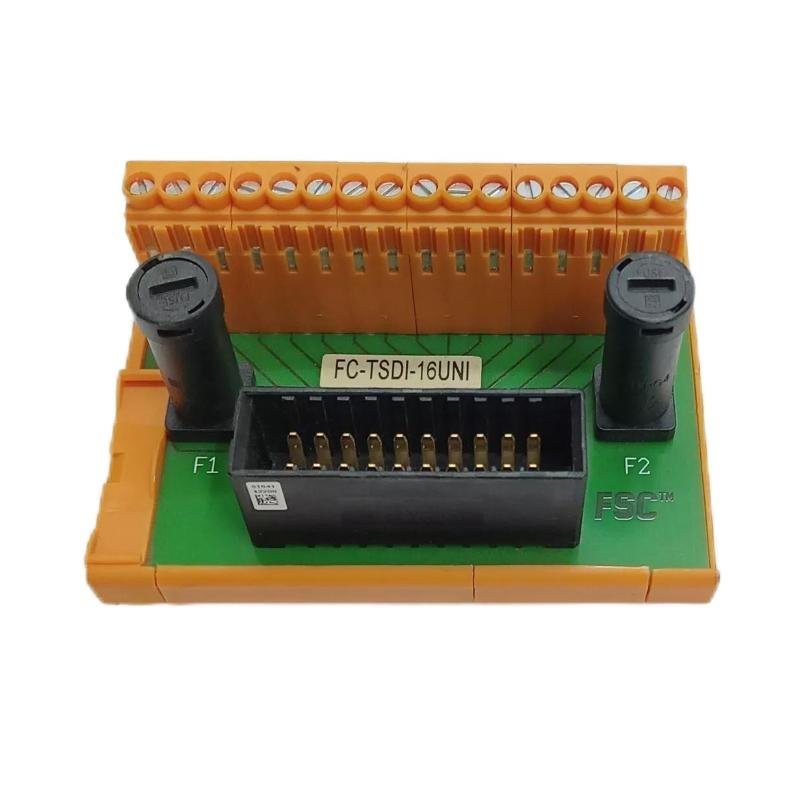

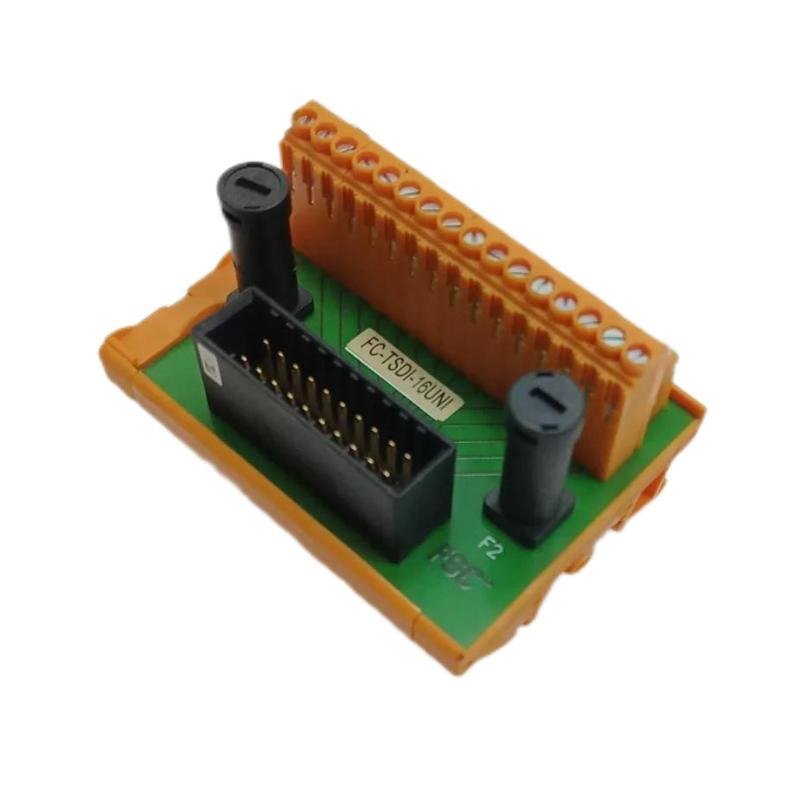

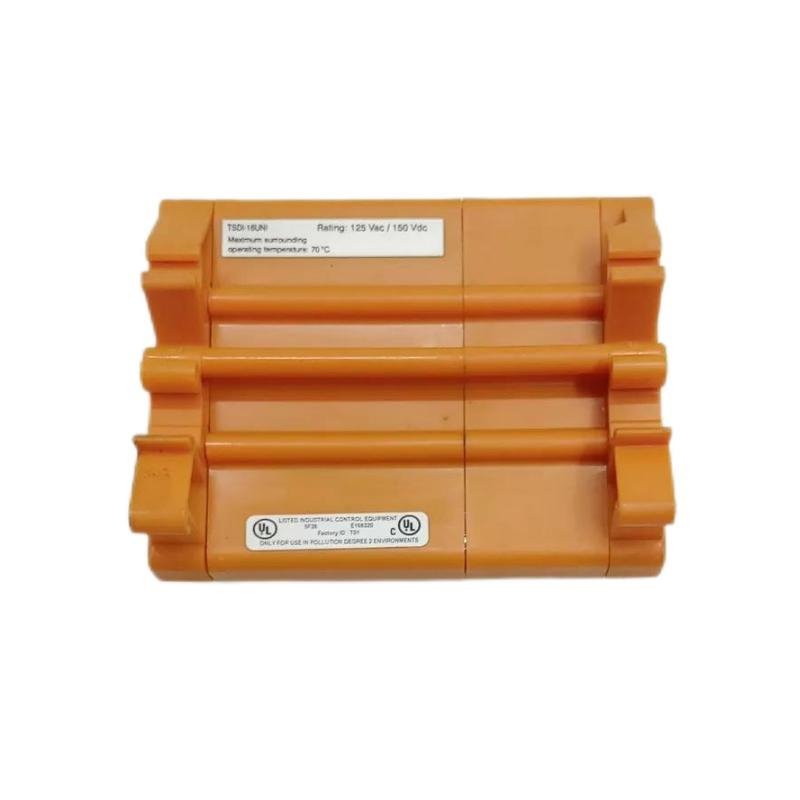

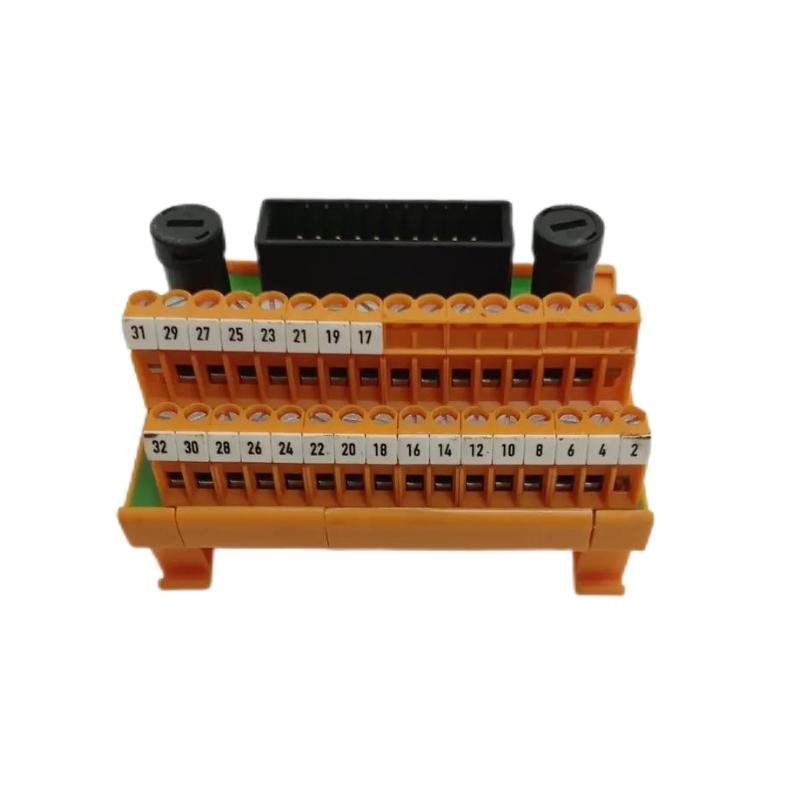

Honeywell FC-TSDI-16UNI Safety Active/Passive Digital Input FTA
Manufacturer: Honeywell
Product Number: FC-TSDI-16UNI
Category: Safety Active/Passive Digital Input Field Termination Assembly (FTA)
Number of Channels: 16
Input Types: Active and passive digital inputs
System Compatibility: Honeywell Safety Manager, Fail-Safe Controller (FSC) systems
Operating Temperature: -40°C to +70°C
Product Description
The Honeywell FC-TSDI-16UNI Safety Active/Passive Digital Input FTA is a versatile and reliable input module designed for use in Honeywell’s Safety Manager and Fail-Safe Controller (FSC) systems. It offers 16 channels for both active and passive digital inputs, providing critical functionality for safety instrumented systems (SIS) in various industrial applications. The module supports a wide range of safety applications, including monitoring critical processes, ensuring system reliability, and meeting stringent safety standards.
The FC-TSDI-16UNI is engineered to work in hazardous environments, offering a high level of protection against electrical noise and ensuring accurate, real-time data acquisition. This module is fully compatible with Honeywell’s FSC and Experion PKS systems, and it is designed to ensure safety and operational efficiency in demanding industrial settings.
Key Features
-
16 Digital Inputs: Offers 16 channels for active and passive digital signals, allowing flexible input configurations.
-
Safety Compliance: Meets global safety standards such as IEC 61508, IEC 61511, and ISO 13849 for SIL (Safety Integrity Level) applications.
-
Active/Passive Input Modes: Supports both active and passive digital input signals for greater versatility in various system configurations.
-
Robust Environmental Design: Designed for reliable operation in challenging industrial environments with high immunity to electrical noise.
-
Easy Integration: Compatible with Honeywell Safety Manager and Fail-Safe Controller systems, providing seamless integration into safety systems.
-
Diagnostic LEDs: Features diagnostic LEDs for real-time monitoring of input status and system health.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 × 70 × 58 mm |
| Weight | 0.36 kg |
General Information
| Item | Specification |
|---|---|
| Model | FC-TSDI-16UNI |
| Manufacturer | Honeywell Process Solutions |
| Product Type | Safety Active/Passive Digital Input FTA |
| Mounting | DIN rail mounted |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC ±10% |
| Input Type | Active and passive digital inputs |
| Input Channels | 16 |
| Input Impedance | 3 kΩ (active), 10 kΩ (passive) |
| Isolation | 1500 V isolation between channels |
| Response Time | ≤ 10 ms |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Altitude | Up to 2000 m |
| Vibration | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
| Enclosure | IP20 (according to IEC 60529) |
Approvals
| Item | Specification |
|---|---|
| CE Certified | Yes |
| UL/CSA Approved | Yes |
| RoHS Compliant | Yes |
| Safety Compliance | IEC 61508, IEC 61511, ISO 13849 (SIL) |
Industry Applications
The Honeywell FC-TSDI-16UNI Safety Active/Passive Digital Input FTA is designed for critical applications in industries where safety and reliability are paramount:
-
Oil & Gas: Essential for monitoring safety-critical systems in upstream and downstream operations.
-
Chemical Processing: Provides reliable input monitoring for safety systems in chemical plants and refineries.
-
Power Generation: Ensures safe and accurate input monitoring for safety systems in thermal, nuclear, and renewable power plants.
-
Water and Wastewater Treatment: Supports safety applications in water treatment and wastewater management systems.
-
Manufacturing: Used in manufacturing plants where system safety and operational continuity are crucial.
With its robust design and compliance with industry-leading safety standards, the FC-TSDI-16UNI ensures reliable and secure digital input monitoring in a variety of safety-critical environments.
