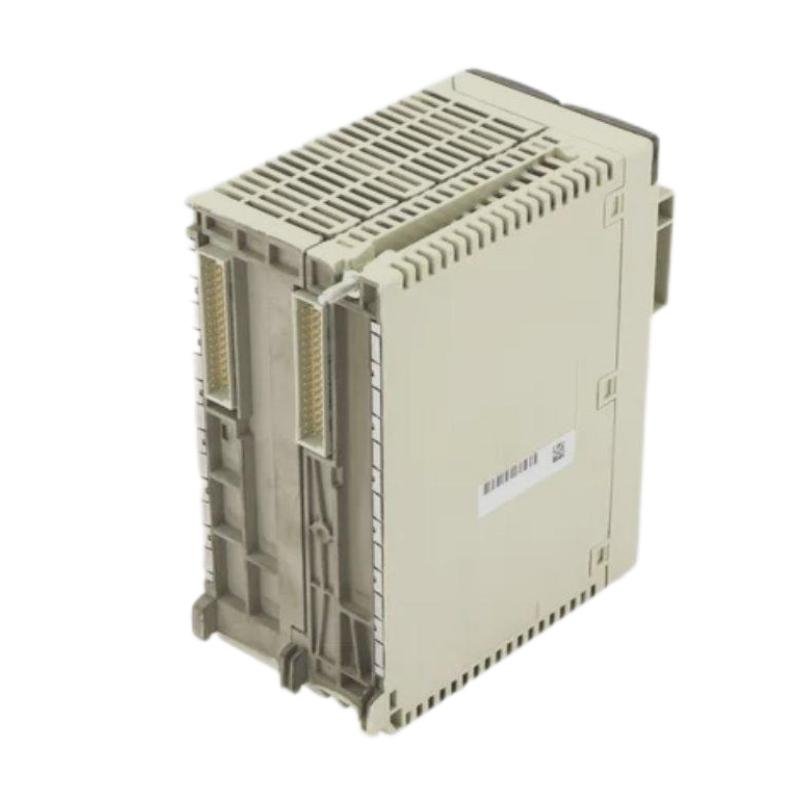

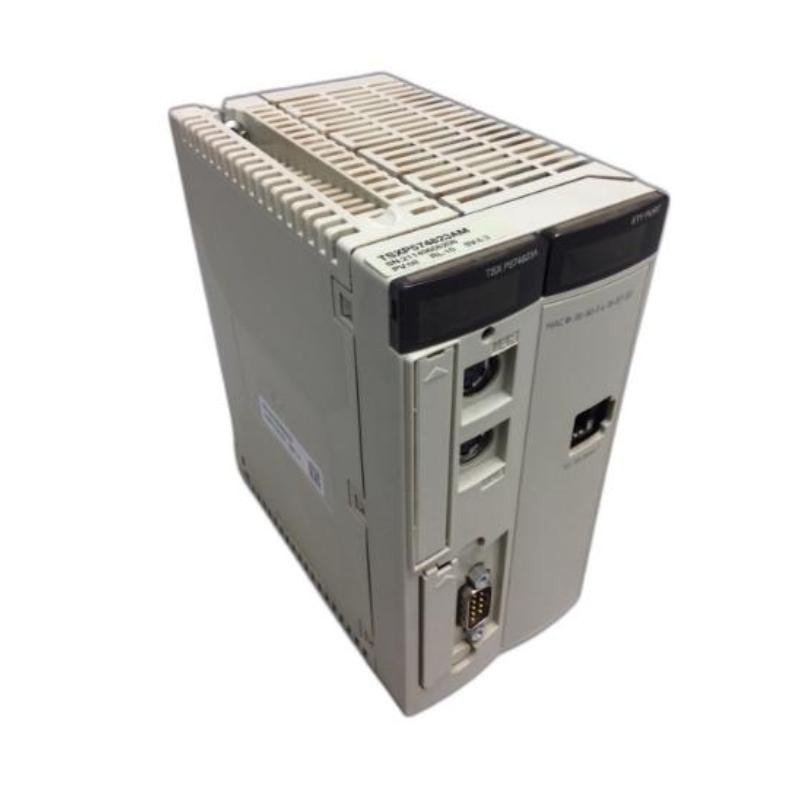

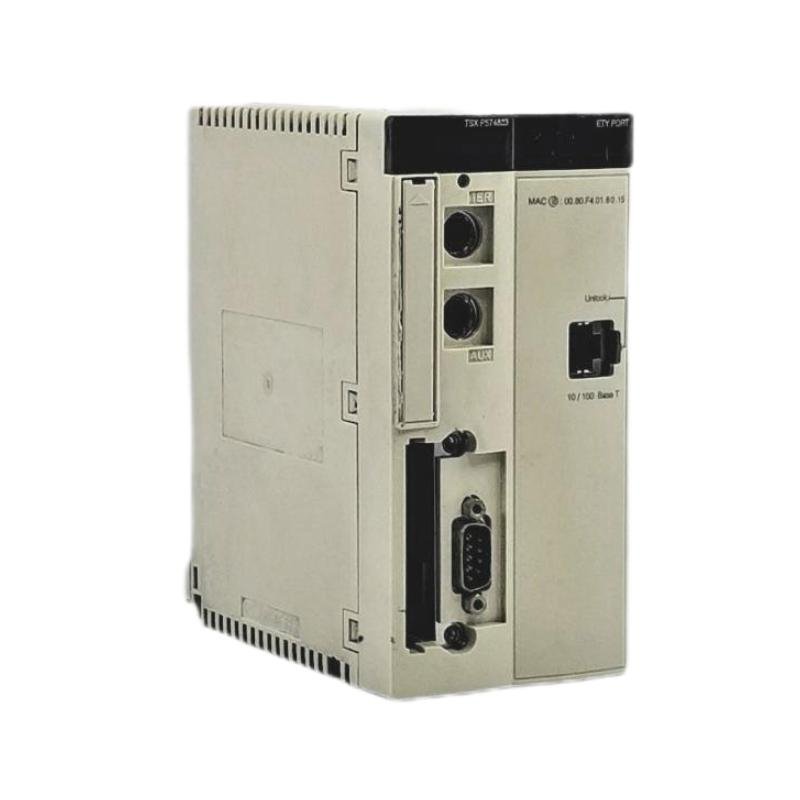

Schneider TSXP574823AM Dual Format PL7 Processor
Manufacturer: Schneider Electric
Product Number: TSXP574823AM
Category: Dual Format PL7 Processor (Modicon Premium series)
Programming Environments: Supports both PL7 and Unity Pro
Application: Critical automation applications requiring powerful processing
Performance: High-performance dual-format processor
Product Description
The Schneider TSXP574823AM is a high-performance dual-format processor module from the Modicon Premium series, designed to support both PL7 and Unity Pro programming environments. Tailored for critical automation applications, it offers powerful processing capabilities, robust memory management, and flexible communication options. This processor is ideal for use in large-scale industrial control systems, where versatility, scalability, and system integration are essential.
With dual-format support, the TSXP574823AM enables seamless upgrades from legacy PL7 applications to Unity Pro environments, providing long-term investment protection and operational flexibility.
Key Features
-
Dual Programming Format: Supports both PL7 and Unity Pro programming environments
-
High Processing Speed: Executes complex control tasks with rapid scan times
-
Integrated Communication: Includes built-in Ethernet and serial ports for versatile connectivity
-
Advanced Memory Capacity: Features expandable memory for large automation programs
-
Modular Design: Compatible with a wide range of I/O, communication, and specialty modules
-
Real-Time Diagnostics: LED indicators and integrated tools for quick troubleshooting
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 95x 180x 260mm |
| Weight | 0.776 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | TSXP574823AM |
| Product Series | Modicon Premium |
| Processor Type | Dual Format Processor (PL7/Unity Pro) |
| User Memory | 2 MB (expandable with PCMCIA card) |
| Battery Backup | Yes |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Power Supply Voltage | 5 V DC (supplied via rack) |
| Current Consumption | 1200 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Protection Rating | IP20 |
Communication and Interface
| Item | Specification |
|---|---|
| Ethernet Port | 10/100 Mbps (RJ45) |
| Serial Ports | 1 x RS-232 / RS-485 |
| Programming Interfaces | USB, Serial, Ethernet |
| Supported Protocols | Modbus, TCP/IP, UDP, Ethernet/IP |
| Compatible Software | PL7, Unity Pro |
Industry Applications
-
Oil & Gas: Controls wellhead automation, pipeline SCADA, and compressor stations
-
Automotive: Manages complex assembly lines and robotic operations
-
Food & Beverage: Supports high-speed bottling, packaging, and batch processes
-
Energy & Utilities: Oversees substation automation and power distribution systems
-
Chemical Processing: Ensures safe and efficient control of hazardous processes
-
Infrastructure: Integrates systems in water treatment plants, airports, and rail systems
The Schneider TSXP574823AM Dual Format PL7 Processor is the ideal solution for projects requiring robust control, flexible programming options, and seamless scalability. Its dual-format capability allows easy migration from legacy systems while maintaining high performance and communication versatility.
