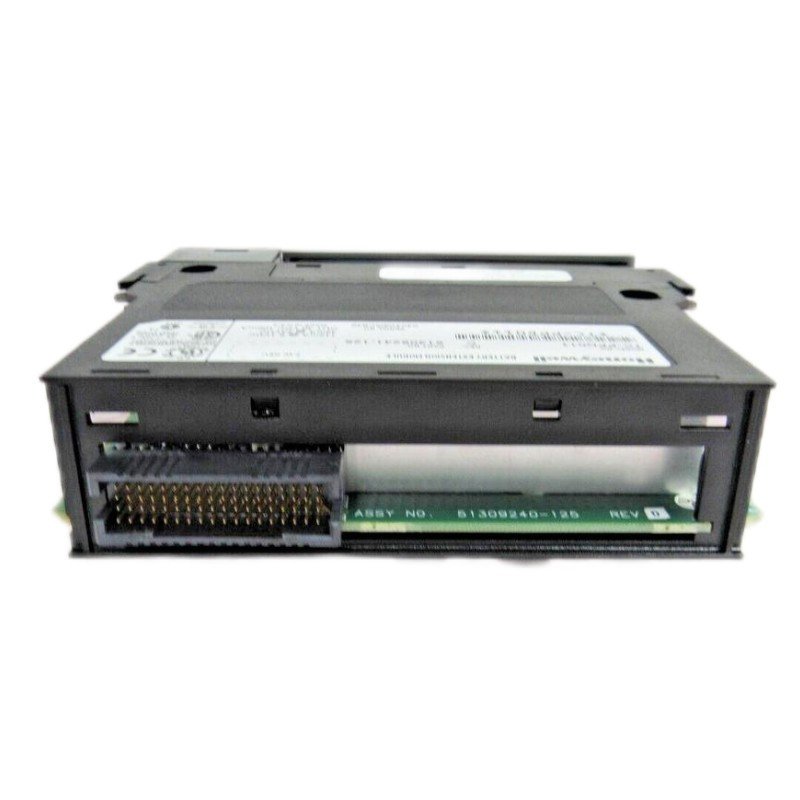

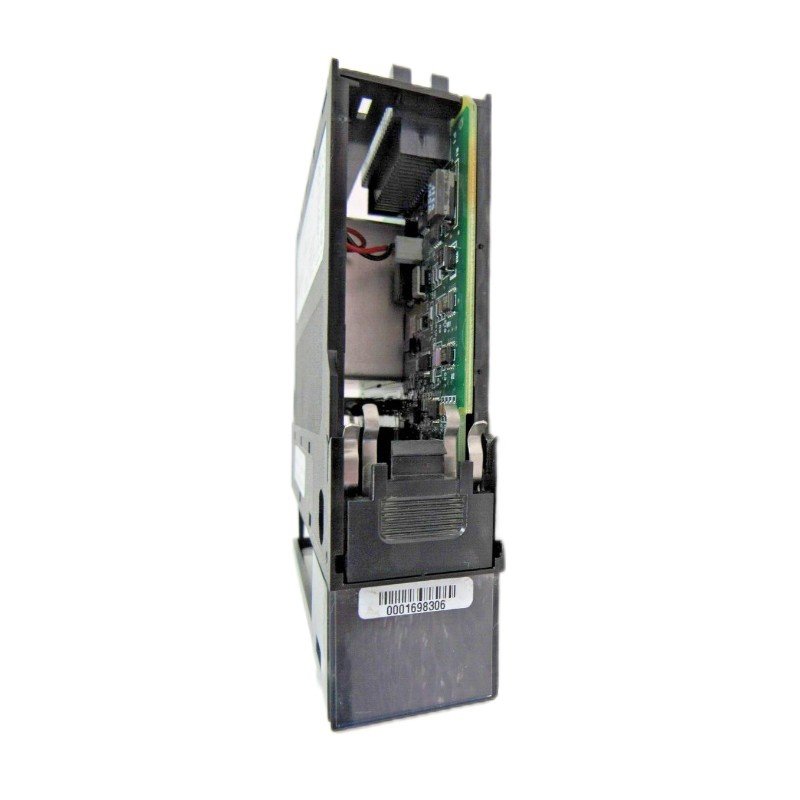

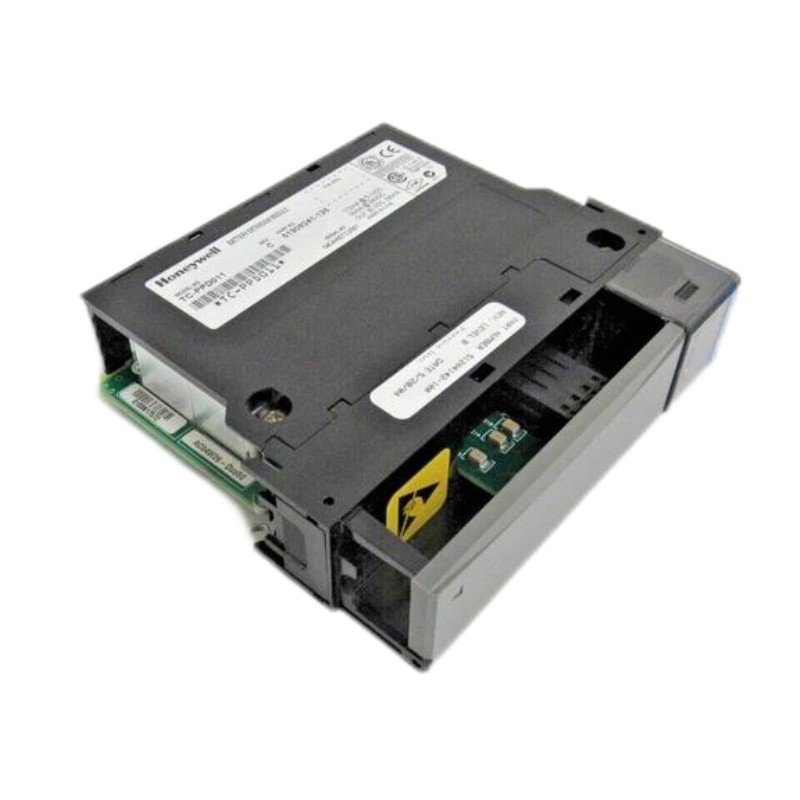

Honeywell TC-PPD011 51309241-125 Experion LS Battery Expansion Module
Manufacturer: Honeywell
Product Number: TC-PPD011 (51309241-125)
Category: Experion LS Battery Expansion Module
System Compatibility: Honeywell Experion LS DCS
Function: Provides extended power backup capabilities for uninterrupted system operation
Application: Ensuring system integrity during power interruptions
Product Description
The Honeywell TC-PPD011 51309241-125 Experion LS Battery Expansion Module is designed to provide extended power backup capabilities for the Honeywell Experion LS distributed control system. This module ensures uninterrupted system operation during power outages or disturbances, making it a crucial component in mission-critical applications where reliability and uptime are essential. It can be easily integrated with the Experion LS system to enhance the overall power management and ensure continuous control.
By adding the TC-PPD011 Battery Expansion Module to the system, users can extend the battery life, allowing for longer operation times during power failures. This module is built to be highly reliable, ensuring that the Experion LS system remains operational even in the most demanding environments.
Key Features
-
Power Backup Capability: Extends backup power for the Experion LS system during power interruptions, ensuring continuous operation.
-
Easy Integration: Seamlessly integrates into the Honeywell Experion LS platform, offering an efficient solution for power management.
-
High Reliability: Designed to provide long-lasting power support, even in harsh industrial environments.
-
Flexible Configuration: Allows for battery expansion to meet the specific needs of the system’s power requirements.
-
Compact Design: Space-efficient design for easy installation within control cabinets or panels.
-
Battery Monitoring: Includes built-in battery monitoring functionality to ensure the health and efficiency of the power backup system.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 170 x 80 x 45 mm |
| Weight | 0.36 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | TC-PPD011 51309241-125 |
| Part Number | 51309241-125 |
| Module Type | Battery Expansion Module |
| Expansion Type | Battery Backup |
| Mounting | DIN Rail or Panel Mount |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC |
| Input Voltage Range | 18–30 V DC |
| Battery Type | Sealed Lead Acid (SLA) |
| Battery Capacity | Dependent on battery configuration |
| Operating Temp | –40°C to +70°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Honeywell Experion LS |
| Communication Protocol | Universal Control Network (UCN) |
| Configuration Tool | Honeywell Engineering Tools |
| Battery Monitoring | Yes |
Industry Applications
-
Energy and Utilities: Ensures uninterrupted operation of control systems in power plants and grid management during power failures.
-
Oil & Gas: Provides reliable power backup for critical control systems in refineries, offshore rigs, and pipelines.
-
Manufacturing: Maintains operation of control systems and machinery during power disturbances or shutdowns.
-
Chemical Processing: Supports safety-critical control systems in chemical plants, ensuring continued monitoring and control in case of power loss.
-
Water and Wastewater Treatment: Guarantees the operation of water treatment systems during power failures, ensuring reliable monitoring and control of pumps, valves, and filtration systems.
The Honeywell TC-PPD011 51309241-125 Experion LS Battery Expansion Module is a vital addition to the Experion LS system, providing critical backup power and ensuring continuous operation in industrial environments where power reliability is essential. Its seamless integration, high reliability, and ability to monitor battery health make it an indispensable component for mission-critical applications.
