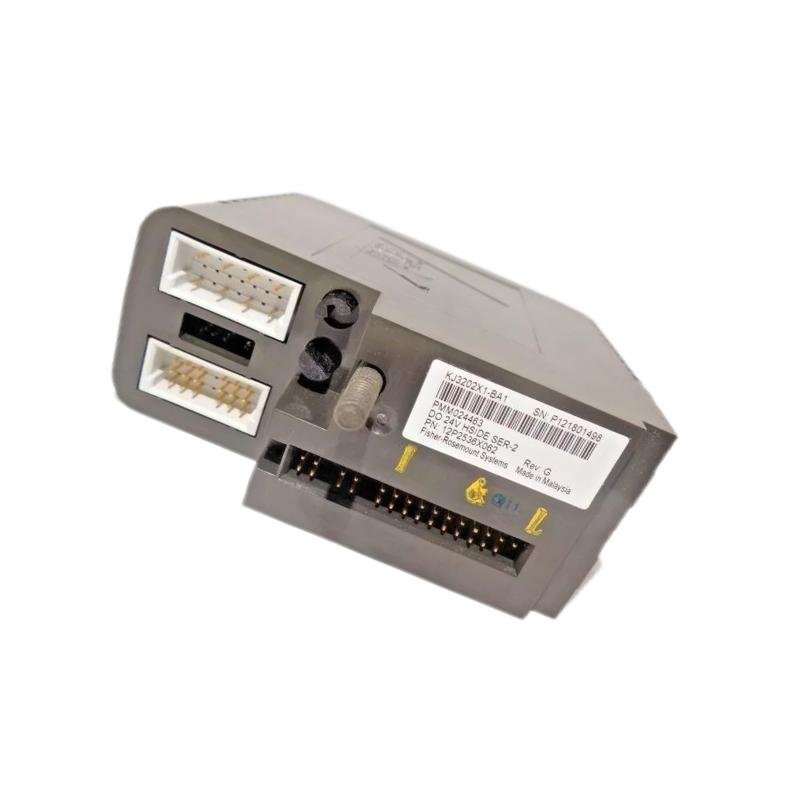

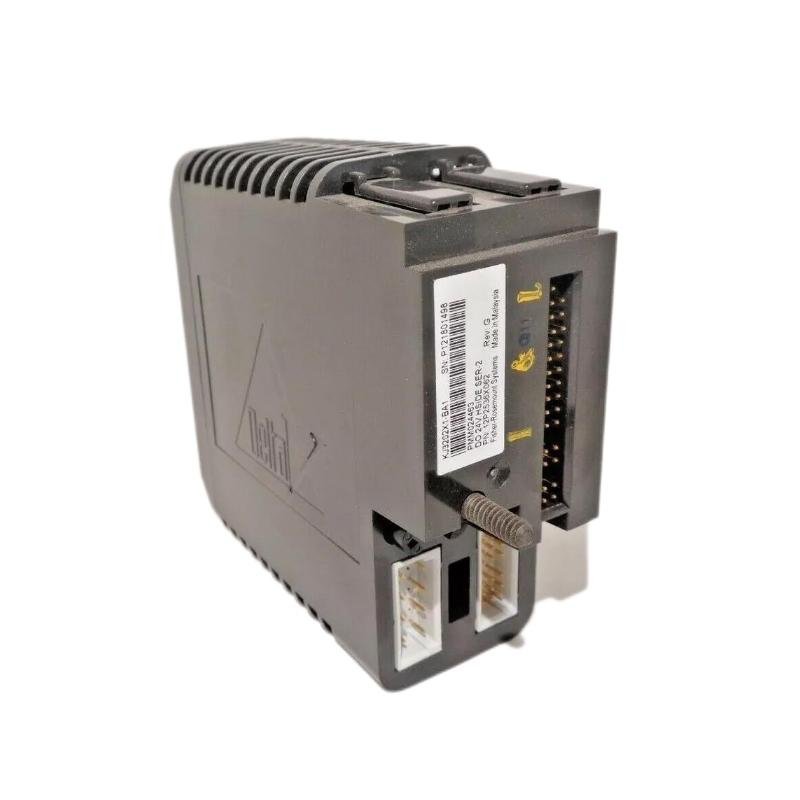

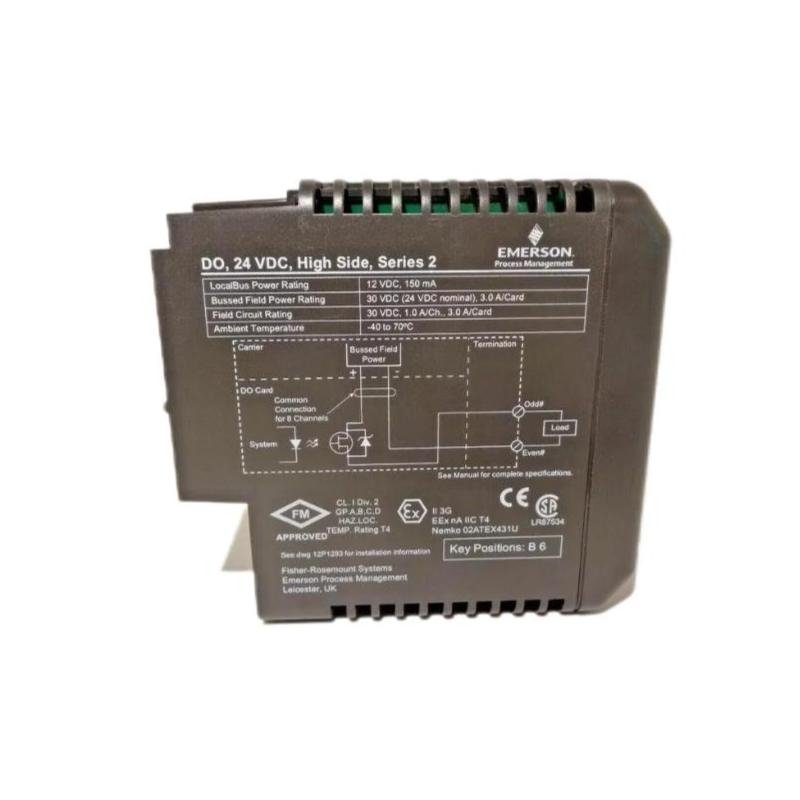

Emerson KJ3202X1-BA1 Output Module
Manufacturer: Emerson
Product Number: KJ3202X1-BA1
Category: Output Module
System Compatibility: Emerson DeltaV digital automation systems
Number of Outputs: Typically 16 or 32
Output Type: 24V DC digital output
Function: Provides reliable and precise control of field devices by converting digital control signals into output commands
Product Description
The Emerson KJ3202X1-BA1 Output Module is a high-performance module designed for use in Emerson’s DeltaV™ digital automation systems. This module provides reliable and precise control of field devices by converting digital control signals into analog outputs. It is ideal for industrial applications where high accuracy and reliable operation of analog devices, such as actuators, valves, and motors, are essential.
The KJ3202X1-BA1 Output Module supports a variety of industrial control applications and is engineered to deliver consistent, stable, and efficient performance under demanding conditions. Its flexible design allows it to be integrated seamlessly into Emerson’s DeltaV™ system, providing easy configuration and diagnostics through the system’s advanced software tools.
Key Features
-
High Accuracy: Delivers precise and reliable analog output signals for accurate control of field devices.
-
Multiple Output Types: Supports both 4-20 mA and 0-10 V output signals, providing flexibility for various application requirements.
-
High Channel Density: Capable of handling up to 8 analog outputs in a compact and space-efficient design.
-
Built-in Diagnostics: Features LED indicators for monitoring the status of the module and detecting potential faults in real-time.
-
Seamless Integration: Easily integrates with Emerson’s DeltaV™ control system, simplifying system configuration and operation.
-
Rugged Design: Built to withstand industrial environments, ensuring long-term durability and reliability.
-
Wide Operating Temperature Range: Suitable for use in a variety of environmental conditions, from -20°C to +60°C.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.2 kg |
General Information
| Item | Specification |
|---|---|
| Model | KJ3202X1-BA1 |
| Manufacturer | Emerson |
| Installation | DIN Rail / Panel Mount |
| Power Supply | Supplied via system backplane |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Performance Characteristics
| Item | Specification |
|---|---|
| Number of Outputs | 8 analog outputs |
| Output Range | 4-20 mA or 0-10 V |
| Resolution | 16-bit |
| Output Accuracy | ±0.1% FS |
| Output Load | 600 Ω (4-20 mA) / > 10 kΩ (0-10 V) |
| Output Channel Isolation | Channel-to-channel isolation |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% |
| Power Consumption | Approx. 3 W |
| Operating Current | ≤ 0.15 A |
| Status Indicators | LEDs for power, fault, and output condition |
Industry Applications
-
Chemical Processing: Provides reliable control of dosing systems, valves, and mixing equipment in chemical processing applications.
-
Energy & Power Generation: Used to control actuators, motors, and other critical devices in power plants, ensuring stable and efficient operations.
-
Manufacturing: Supports automated systems by providing reliable outputs for controlling production equipment, robotic arms, and conveyors.
-
Water Treatment: Powers control valves and actuators for regulating water flow and filtration processes in municipal water treatment systems.
-
Building Automation: Controls HVAC systems, lighting, and other building systems to optimize energy usage and maintain comfortable environmental conditions.
The Emerson KJ3202X1-BA1 Output Module is a reliable and versatile solution for providing precise control of field devices in industrial automation systems. With its high accuracy, flexibility in output types, and seamless integration with Emerson’s DeltaV™ system, it is an ideal choice for a wide range of industrial applications. Whether in chemical processing, energy generation, or manufacturing, this module ensures optimal performance and reliability in demanding operational environments.
