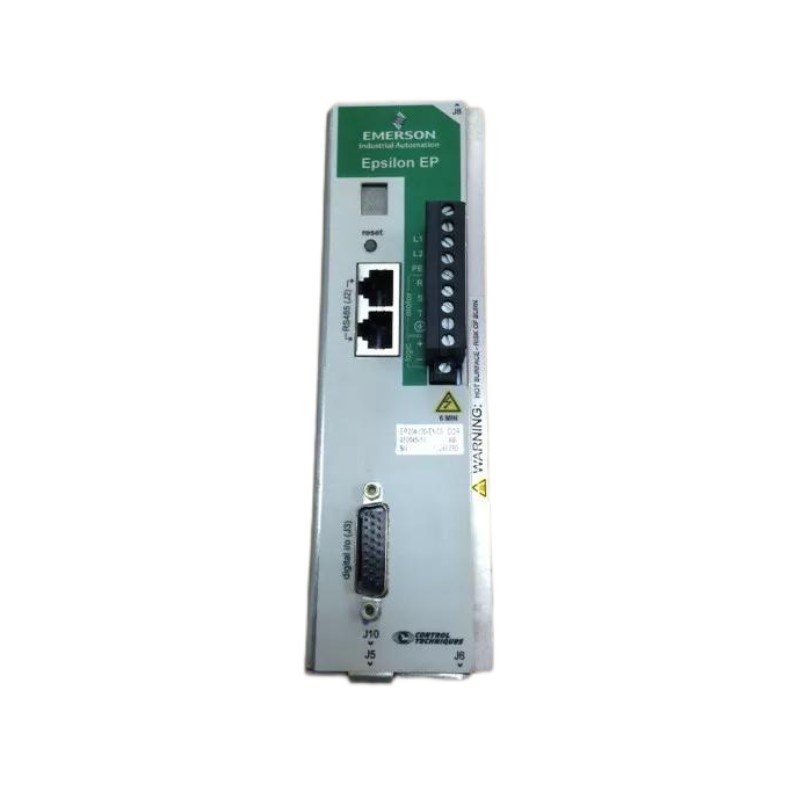

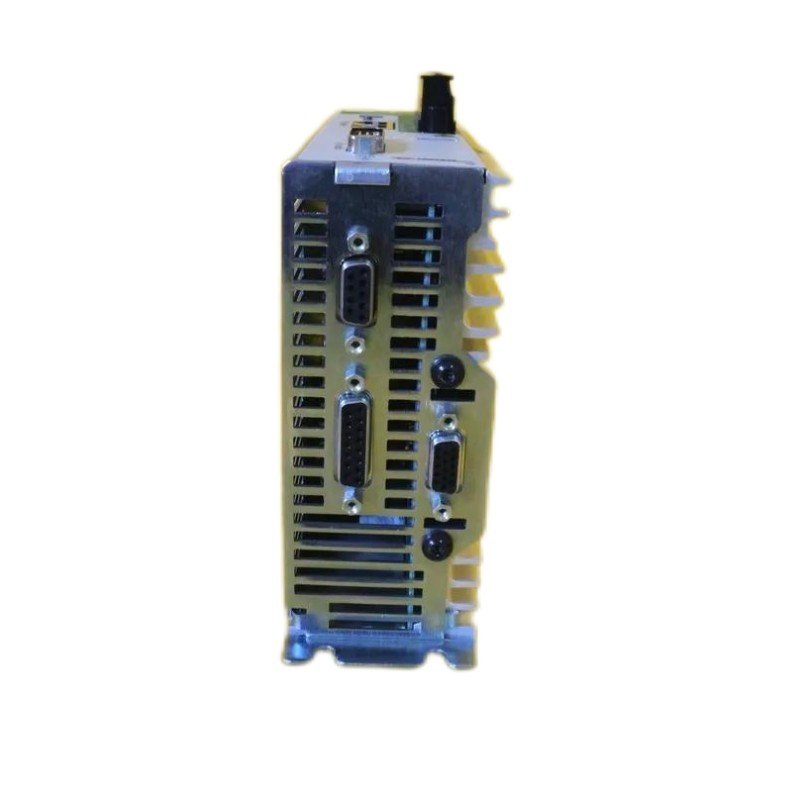

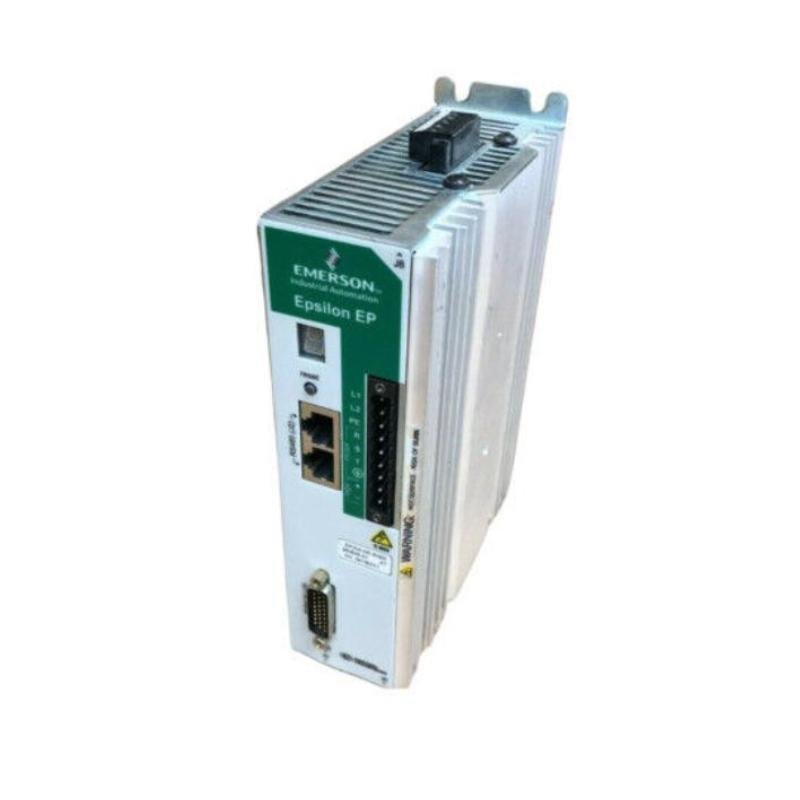

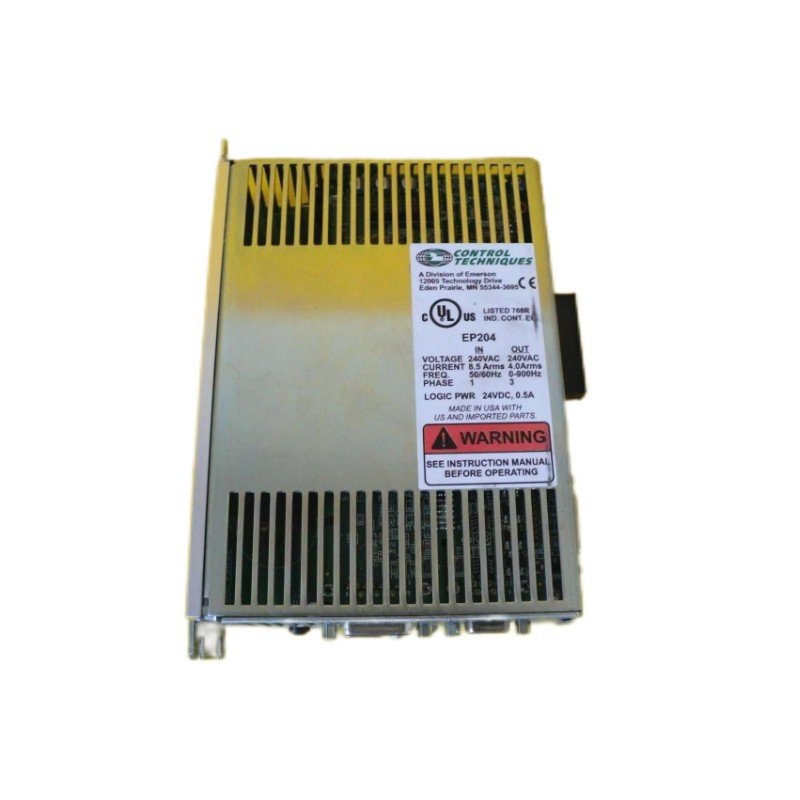

Emerson EP204-I00-EN00 Servo Drives
Manufacturer: Emerson
Product Number: EP204-I00-EN00
Category: Digital Servo Drive (Epsilon EP Series)
Input Voltage: 230VAC ±10% (Single/Three-Phase)
Continuous Output Current: 4A RMS
Peak Output Current: 8A (up to 3 seconds)
Feedback Interface: Incremental Encoder (Differential A/B/Z)
Communication: RS-485 Modbus RTU
Control Modes: Torque, Velocity, Position (PVT)
Product Description
The Emerson EP204-I00-EN00 Servo Drive is a high-performance drive unit designed for use in precision motion control applications. It is part of the Epsilon EP series and provides a robust solution for industries such as robotics, industrial automation, and CNC machines. With a continuous output current of 4A and peak output current of 8A, the EP204-I00-EN00 is designed to handle high-performance tasks efficiently.
This servo drive features encoder feedback for accurate positioning, flexible communication options, and a wide input voltage range of 90V to 264V AC, making it suitable for a variety of applications. The drive also integrates a 24V DC logic power supply, ensuring ease of integration into complex systems.
Key Features
-
High Performance: Delivers precise motion control with a continuous current output of 4A and peak output of 8A.
-
Encoder Feedback: Utilizes encoder feedback for accurate positioning and synchronization with connected motors.
-
Flexible Voltage Range: Accepts input voltages from 90V to 264V AC, providing flexibility in power configurations.
-
Programmable Encoder Output: Supports programmable encoder outputs for versatile integration with different systems.
-
24V DC Logic Power Supply: Includes a 24V DC input for the logic power supply, simplifying system integration.
-
Easy Installation and Operation: Designed for straightforward setup, reducing commissioning time and operational complexity.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 53.59 x 205.72 x 150.88 mm |
| Weight | 1.63kg |
General Information
| Item | Specification |
|---|---|
| Model | EP204-I00-EN00 |
| Manufacturer | Emerson (Control Techniques) |
| System Compatibility | Epsilon EP Series |
| Mounting | Designed for panel mounting |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -20°C to 60°C |
| Humidity Range | 5%–95% RH (non-condensing) |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | AC 90V to 264V |
| Output Current | 4A RMS continuous, 8A peak |
| Encoder Feedback | Incremental encoder input |
| Logic Power Supply | 24 VDC input |
| Communication Ports | Not specified (refer to official documentation) |
System Features
-
Overload Protection: Incorporates solid-state overload protection to safeguard the drive and connected motors.
-
Status Indicators: Equipped with LED indicators for power, fault, and operational status monitoring.
-
Programmable Functions: Allows customization of various parameters to suit specific application requirements.
-
Compliance: Meets international safety and EMC standards, including UL and CE certifications.
Industry Applications
The Emerson EP204-I00-EN00 Servo Drive is ideal for use in a variety of precision motion control applications, including:
-
Robotics: Provides accurate and responsive control for robotic arms and systems.
-
CNC Machines: Ensures precise movement and positioning in computer numerical control machinery.
-
Industrial Automation: Integrates seamlessly into automated production lines and machinery for enhanced efficiency.
-
Packaging: Offers reliable performance in packaging equipment requiring consistent motion control.
-
Textile Machinery: Delivers precise control in textile manufacturing processes.
With its high reliability and advanced features, the EP204-I00-EN00 is a core component in applications requiring high-performance motion control and precision.
