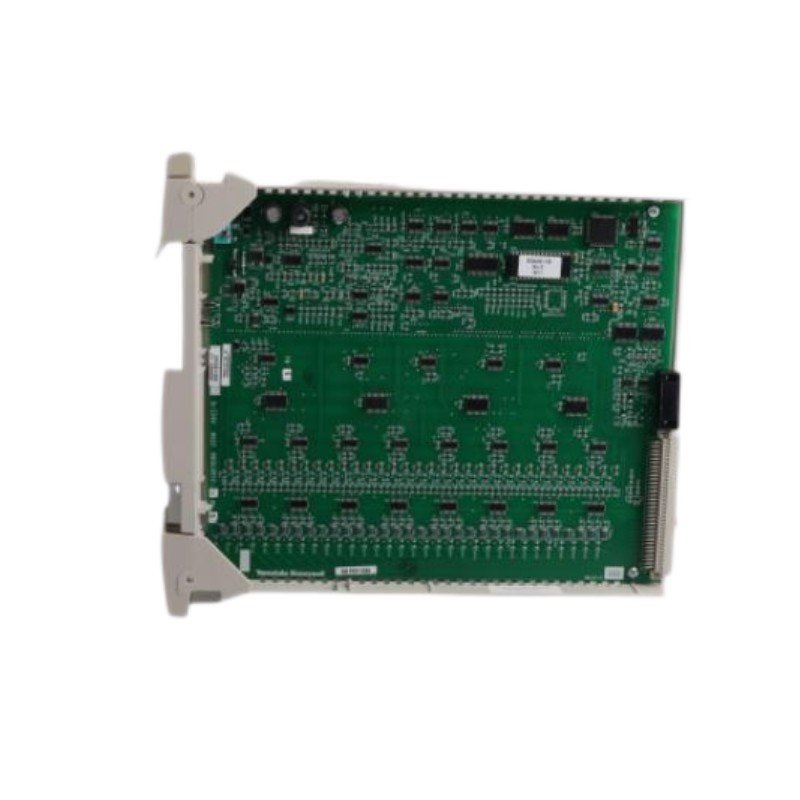

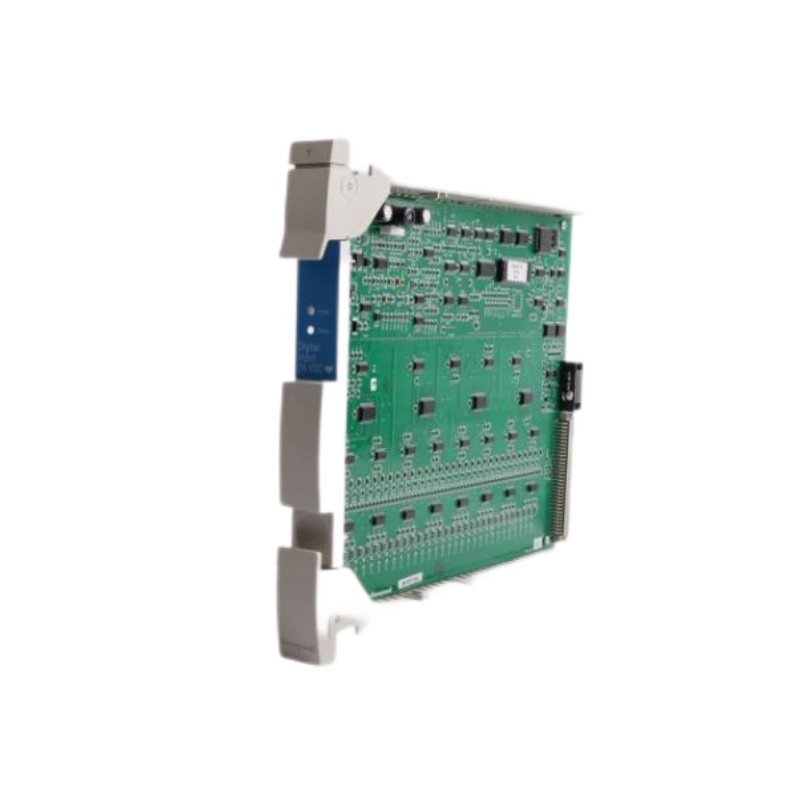

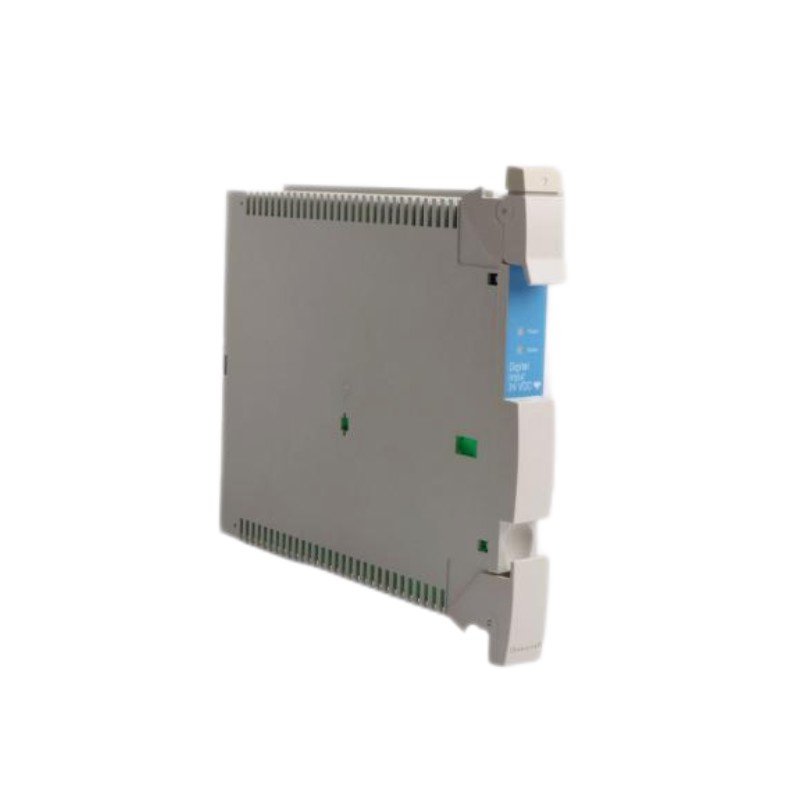

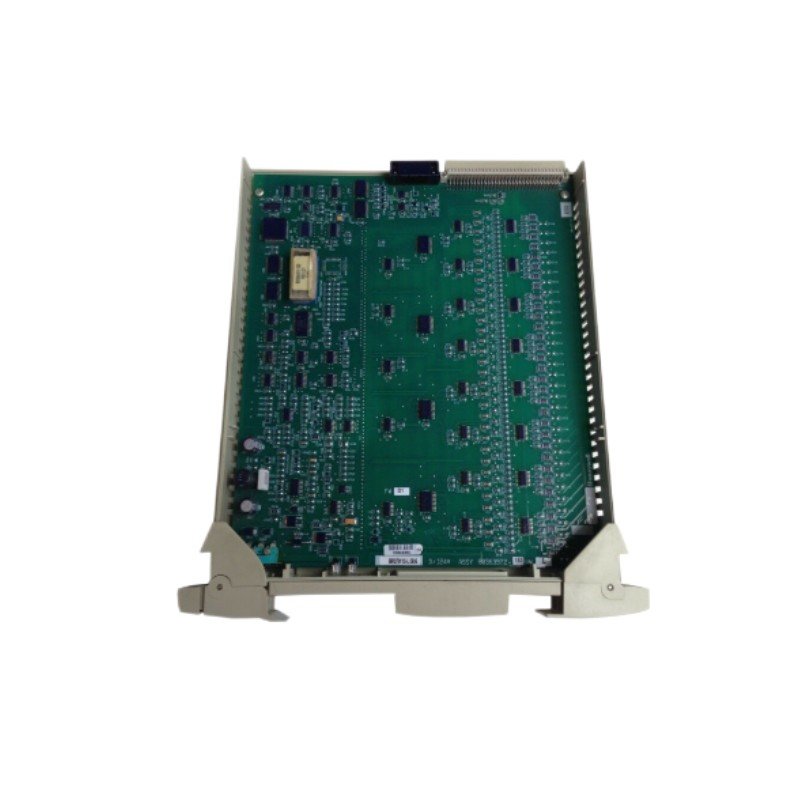

Honeywell MC-PDIY22 80363972-150 Digital Input Modules
Manufacturer: Honeywell
Product Number: MC-PDIY22 (80363972-150)
Category: Digital Input Module
Channels: 16 (typical)
Input Type: 24V DC digital input
System Compatibility: Honeywell industrial automation systems
Function: Precise digital signal acquisition for control and monitoring
Product Description
The Honeywell MC-PDIY22 80363972-150 Digital Input Module is designed for precise digital signal acquisition in industrial automation systems. This module provides reliable and accurate input for control and monitoring applications, enabling seamless integration with Honeywell’s control systems. It is primarily used to interface with various digital sensors, switches, and devices in harsh industrial environments, ensuring stable and real-time signal transmission for accurate process control.
The MC-PDIY22 module supports multiple input configurations and is highly compatible with Honeywell’s distributed control systems. With its robust design and high reliability, this module is well-suited for critical applications requiring continuous data acquisition and fault-free performance.
Key Features
-
High Precision Digital Inputs: Ensures accurate and real-time digital signal acquisition from connected devices.
-
Industrial-Grade Durability: Designed to operate in harsh industrial environments with high resistance to interference and vibration.
-
Flexible Configuration: Supports a variety of input configurations to meet specific application needs.
-
Seamless Integration: Fully compatible with Honeywell’s control systems for simple installation and easy setup.
-
Enhanced Fault Tolerance: Features built-in diagnostics for detecting faults and ensuring consistent performance.
-
DIN Rail Mounting: Easy installation with DIN rail mounting, reducing setup time and operational costs.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 300 mm x 318 mm x 277 mm |
| Weight | 0.51 kg |
General Information
| Item | Specification |
|---|---|
| Model | MC-PDIY22 80363972-150 |
| Manufacturer | Honeywell |
| Power Supply | 24 V DC |
| Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Installation | DIN Rail Mount |
Performance Parameters
| Item | Specification |
|---|---|
| Input Type | Digital Inputs (On/Off) |
| Number of Inputs | 16 Channels (per module) |
| Input Voltage | 24 V DC (Nominal) |
| Input Response Time | ≤ 5 ms |
| Isolation | 1500 V (Between Channels) |
| Signal Level | 0-24 V DC |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 5 W |
| Operating Current | ≤ 0.2 A |
Industry Applications
The Honeywell MC-PDIY22 80363972-150 Digital Input Module is widely used in industries that require accurate, reliable, and fault-tolerant signal acquisition. Some of the typical applications include:
-
Manufacturing Automation: Ensures accurate digital input for controlling and monitoring equipment in production processes.
-
Energy Management: Used for digital signal acquisition in energy systems for monitoring equipment and controlling processes.
-
Building Automation: Provides input for building management systems, supporting monitoring and controlling heating, ventilation, and lighting systems.
-
Oil & Gas: Applied in hazardous environments for monitoring critical equipment and systems.
-
Water Treatment and Environmental Protection: Ensures precise input acquisition in systems controlling water and wastewater treatment processes.
The MC-PDIY22 digital input module is vital for reliable digital signal acquisition and contributes significantly to system efficiency, uptime, and performance across various industrial applications.
