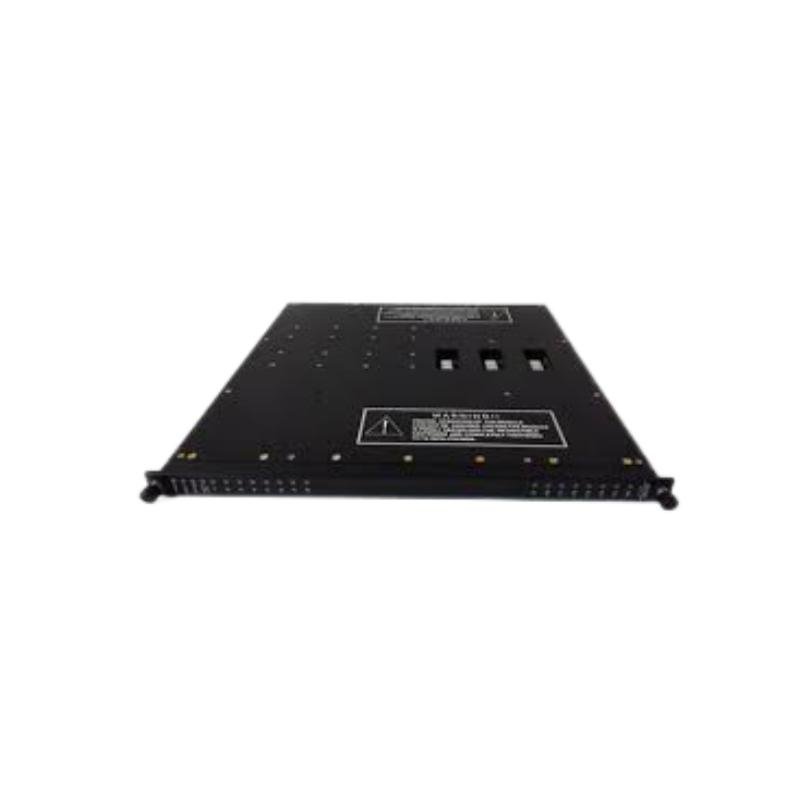

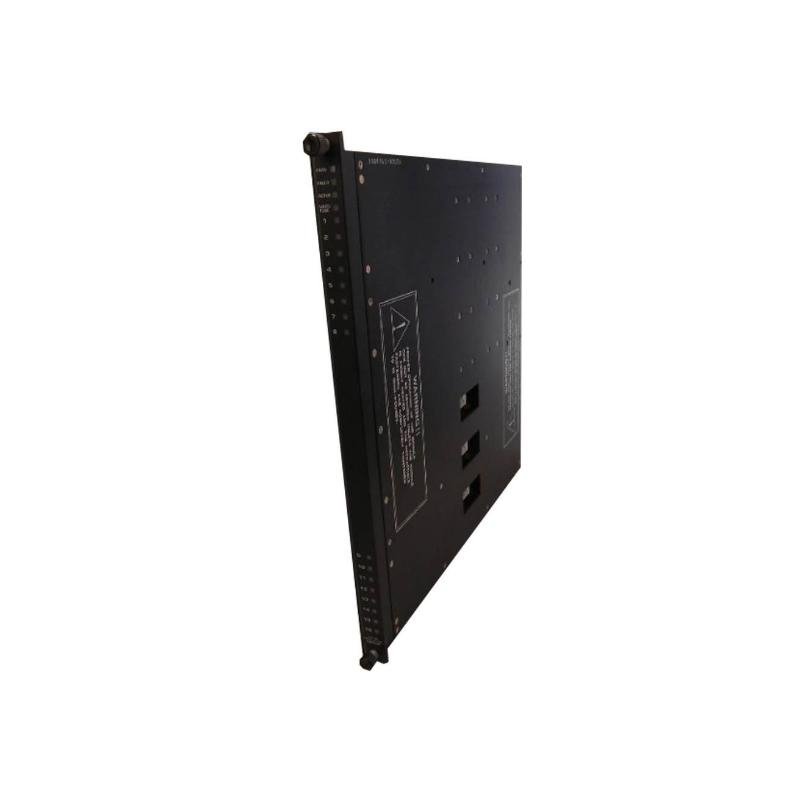

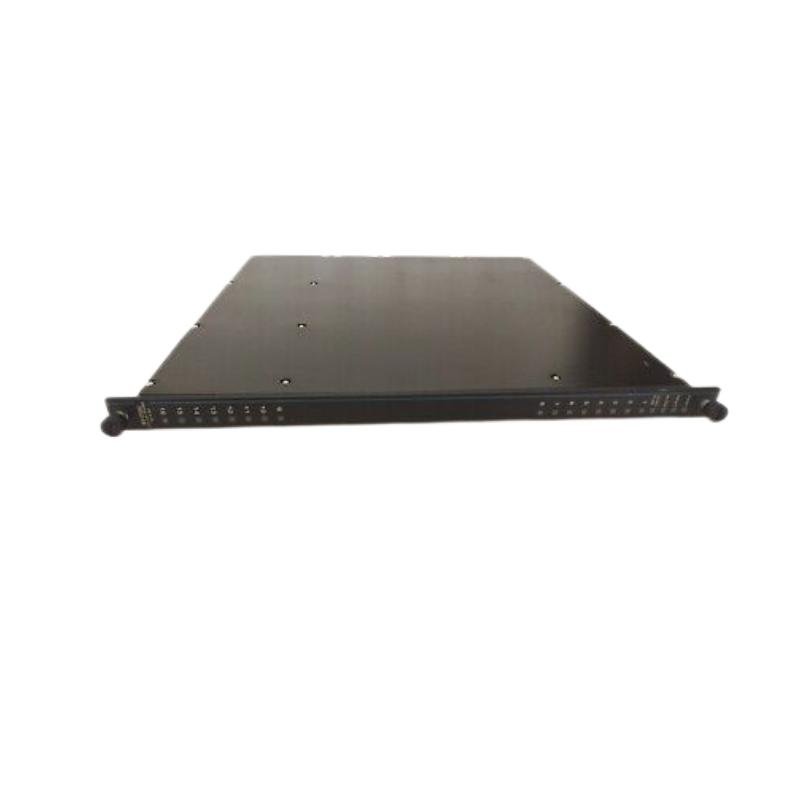

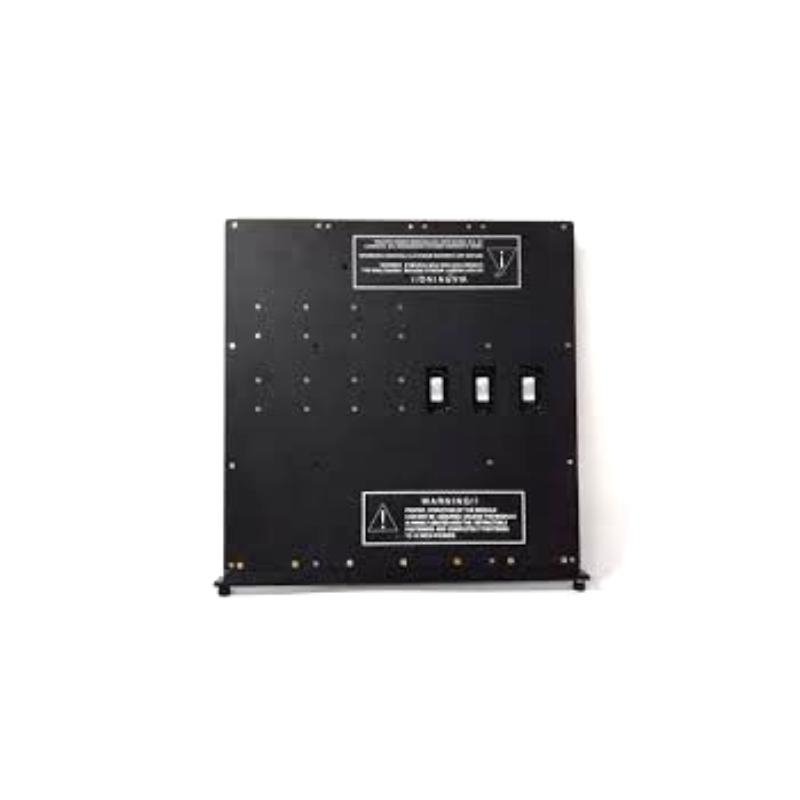

Triconex 3604 Digital output module

The ABB Triconex 3604 is a highly reliable and advanced safety instrumented system (SIS) module designed for critical control applications in industrial environments. It is part of the Triconex family, which is renowned for its triple modular redundancy (TMR) architecture, ensuring maximum fault tolerance and system availability. The Triconex 3604 module is specifically engineered to provide robust performance in harsh conditions, making it ideal for industries such as oil and gas, chemical, power generation, and pharmaceuticals.

The module is designed to meet the highest safety standards, including SIL 3 (Safety Integrity Level 3) certification, ensuring it can handle the most demanding safety-critical applications. Its modular design allows for easy integration into existing systems, while its advanced diagnostics and monitoring capabilities ensure optimal performance and quick fault detection.

Product Advantages

1. Triple Modular Redundancy (TMR): The Triconex 3604 employs a TMR architecture, which ensures that even if one module fails, the system continues to operate without interruption, providing unparalleled reliability.
2. High Safety Integrity: With SIL 3 certification, the module is capable of handling the most safety-critical applications, ensuring compliance with international safety standards.
3. Advanced Diagnostics: The module features comprehensive diagnostic capabilities, allowing for real-time monitoring and quick identification of potential issues, reducing downtime and maintenance costs.
4. Robust Design: Built to withstand harsh industrial environments, the Triconex 3604 is resistant to extreme temperatures, vibrations, and electromagnetic interference.
5. Ease of Integration: The modular design and compatibility with other Triconex products make it easy to integrate into existing systems, reducing installation time and costs.
6. Scalability: The system can be easily expanded to accommodate growing operational needs, making it a future-proof investment.

Technical Parameters

Product Applications

The ABB Triconex 3604 is widely used in industries where safety and reliability are paramount. Key applications include:

1. Oil and Gas: For emergency shutdown systems (ESD), fire and gas detection, and pipeline monitoring.
2. Chemical Plants: For process safety systems and critical control applications.
3. Power Generation: For turbine control and safety systems in nuclear and thermal power plants.
4. Pharmaceuticals: For ensuring compliance with safety standards in production processes.
5. Manufacturing: For automated safety systems in high-risk manufacturing environments.

Installation Instructions

1. Preparation: Ensure the power supply is turned off before installation. Verify that the mounting location is clean, dry, and free from excessive vibration.
2. Mounting: Secure the Triconex 3604 module to the DIN rail using the provided clips. Ensure the module is firmly in place.
3. Wiring: Connect the power supply (24 V DC) to the designated terminals. Follow the wiring diagram provided in the user manual to connect input/output signals.
4. Configuration: Use the Triconex configuration software to set up the module. Ensure all parameters are correctly configured for your specific application.
5. Testing: After installation, perform a thorough system test to verify proper operation. Check all diagnostics and ensure there are no fault indicators.
6. Documentation: Record all installation details, including wiring diagrams and configuration settings, for future reference.

Frequently Asked Questions (FAQ)

Q1: What is the operating voltage range for the Triconex 3604?

A1: The operating voltage range is 18 V DC to 32 V DC, with a nominal voltage of 24 V DC.

Q2: Is the Triconex 3604 suitable for use in hazardous environments?

A2: Yes, the module is designed to operate in harsh industrial environments and is resistant to extreme temperatures, vibrations, and electromagnetic interference.

Q3: What certifications does the Triconex 3604 hold?

A3: The module is SIL 3 certified and complies with IEC 61508 and IEC 61511 standards.

Q4: Can the Triconex 3604 be integrated with existing systems?

A4: Yes, the module is designed for easy integration with other Triconex products and systems.

Q5: What is the MTBF (Mean Time Between Failures) of the Triconex 3604?

A5: The MTBF is greater than 100 years, ensuring long-term reliability.

Q6: Does the Triconex 3604 support remote diagnostics?

A6: Yes, the module features advanced diagnostics and can be monitored remotely using Triconex software.
