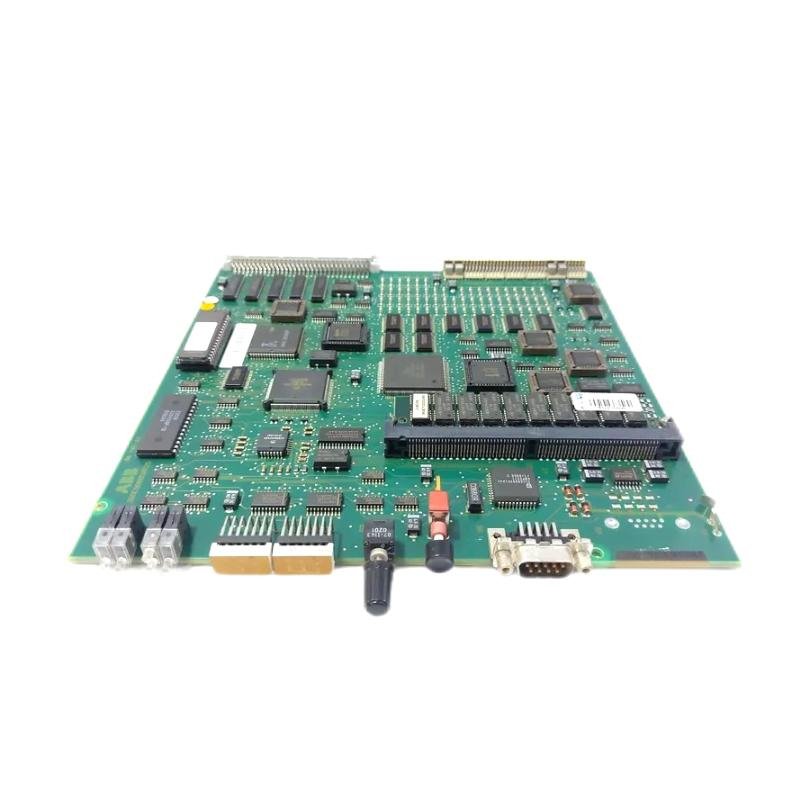

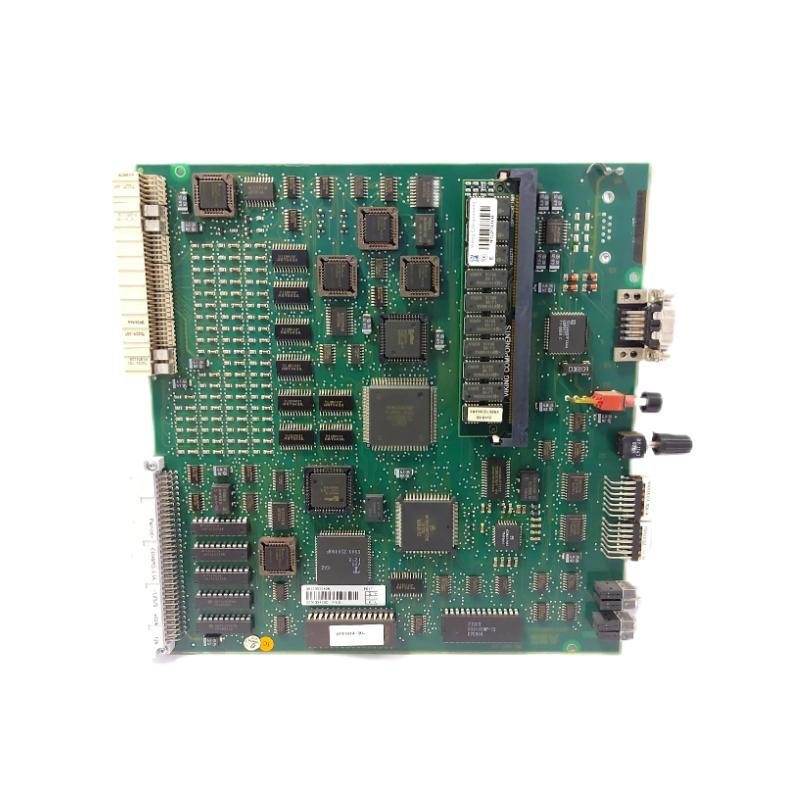

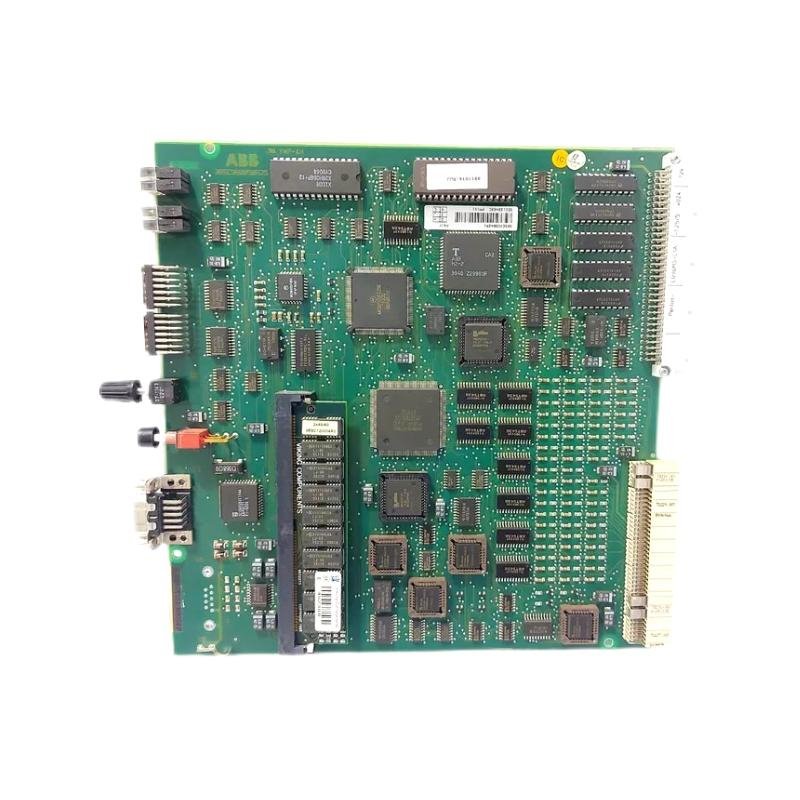

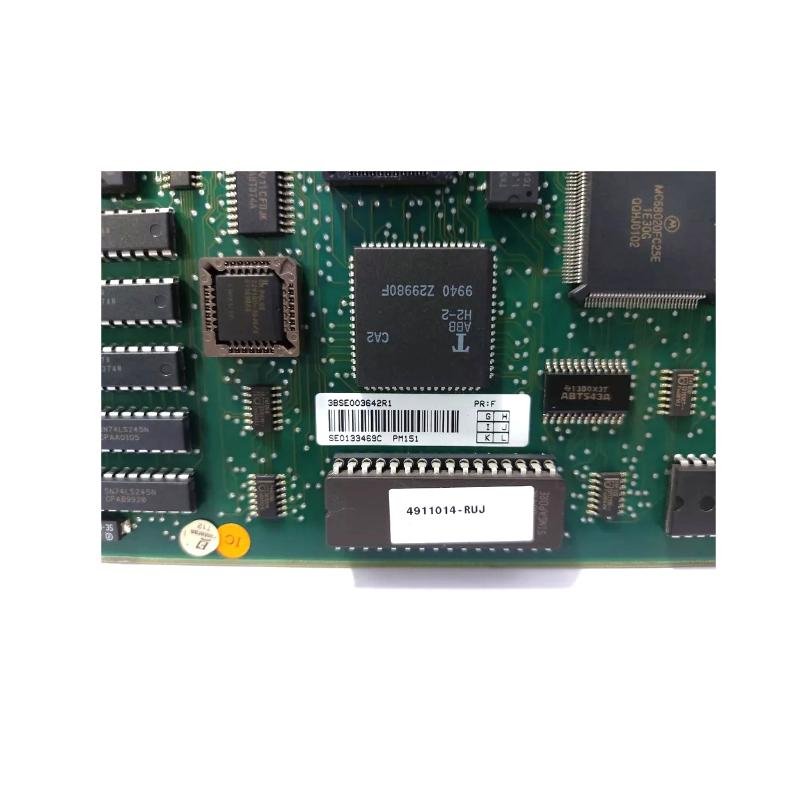

ABB PM151 3BSE003642R1 Analog Input Module
Manufacturer: ABB
Product Number: PM151 (3BSE003642R1)
Category: Analog Input Module (AC800F Freelance field controller)
Input Types: Voltage, current, resistance signals from sensors
Function: Converts analog signals into digital data for industrial automation
Application: Industrial automation requiring precise analog signal acquisition
Product Description
The ABB PM151 3BSE003642R1 is an analog input module designed for the AC800F Freelance field controller system. It converts analog signals from sensors (e.g., voltage, current, resistance) into digital data for industrial automation. Featuring high accuracy, isolation, and modularity, it is widely used in harsh environments such as oil refineries, chemical plants, and power stations.
Key Features
- Multi-Channel Input: 8 or 16 isolated channels for simultaneous sensor connectivity.
- Signal Compatibility: Supports voltage (single-ended/differential), current (0–20 mA, 4–20 mA), and resistance (RTD, thermistor).
- High Resolution: 16-bit ADC with ±0.1% FSR accuracy.
- Isolation: 500 V channel-to-system isolation for noise immunity.
- Fast Communication: S800 bus interface with ≤5 ms response time.
- Diagnostics: Built-in self-test and fault reporting.
- Scalability: Modular design for system expansion.
Technical Specifications
Table 1: Physical Parameters
| Parameter | Specification |
|---|---|
| Dimensions (W×H×D) | 24 mm × 125 mm × 120 mm |
| Weight | 0.35 kg |
| Mounting | DIN rail or panel-mounted |
| Housing Material | Flame-retardant plastic (UL94 V-0) |
Table 2: General Information
| Parameter | Specification |
|---|---|
| Model | PM151 3BSE003642R1 |
| Compatible System | AC800F Freelance |
| Input Channels | 8 or 16 (configurable) |
| Signal Types | Voltage (±10 V), Current (0–20 mA), Resistance |
| Resolution | 16-bit |
| Accuracy | ±0.1% FSR |
| Communication | S800 Bus |
| Operating Temperature | -25°C to +70°C |
| Power Supply | 24 V DC ±10% |
| Isolation Voltage | 500 V (channel-to-system) |
| Certifications | CE, UL, IEC 61131-2 |
Table 3: Input Signal Specifications
| Signal Type | Range | Input Impedance | Overload Protection |
|---|---|---|---|
| Voltage (Single-Ended) | 0–10 V, ±10 V | 1 MΩ | ±30 V |
| Voltage (Differential) | ±5 V, ±10 V | 1 MΩ | ±30 V |
| Current | 0–20 mA, 4–20 mA | 250 Ω | 30 mA |
| Resistance (RTD) | Pt100, Pt1000 | 10 kΩ | 10 V |
Table 4: Electrical & Environmental Parameters
| Parameter | Specification |
|---|---|
| Power Consumption | 2.5 W (typical) |
| Sampling Rate | 10 samples/sec per channel |
| CMRR | >100 dB (50/60 Hz) |
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration Resistance | 5–500 Hz, 3 g RMS |
| Shock Resistance | 15 g (11 ms duration) |
Industry Applications
- Oil & Gas: Tank level monitoring, pipeline pressure sensing.
- Chemical Processing: Reactor temperature control, gas detection.
- Power Generation: Transformer monitoring, grid current measurement.
- Water Treatment: Pump station pressure feedback, conductivity analysis.
- Manufacturing: CNC machine load monitoring, production line sensors.
- Pharma & Food: Cleanroom temperature/humidity tracking under GMP standards.
