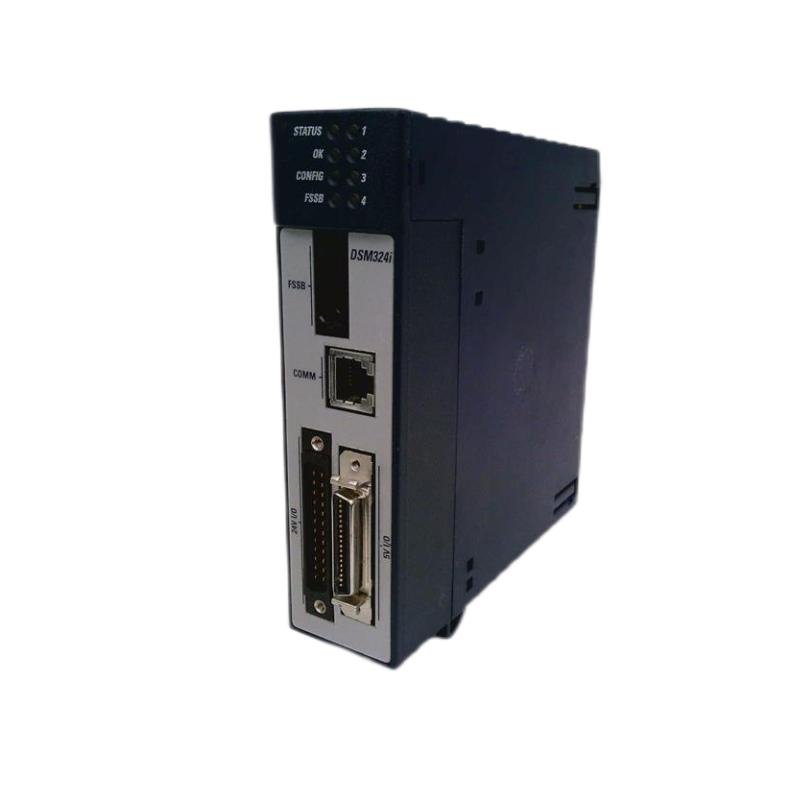

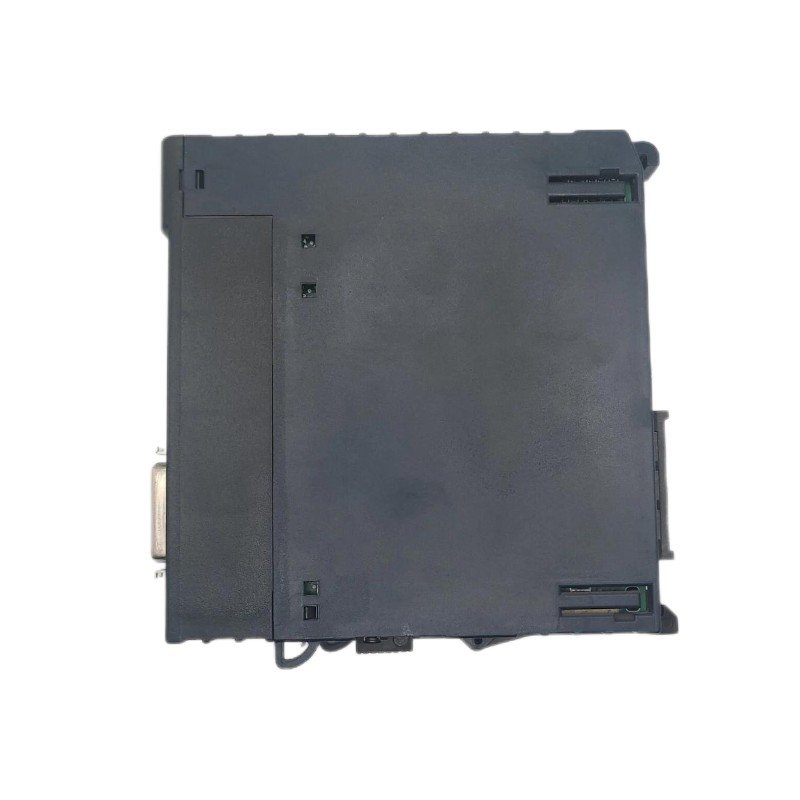

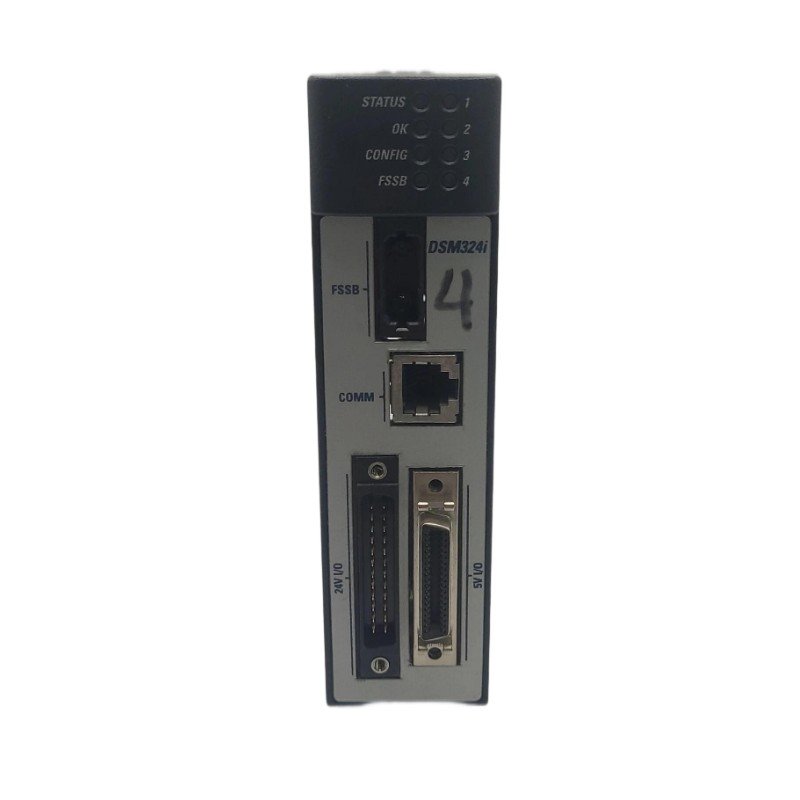

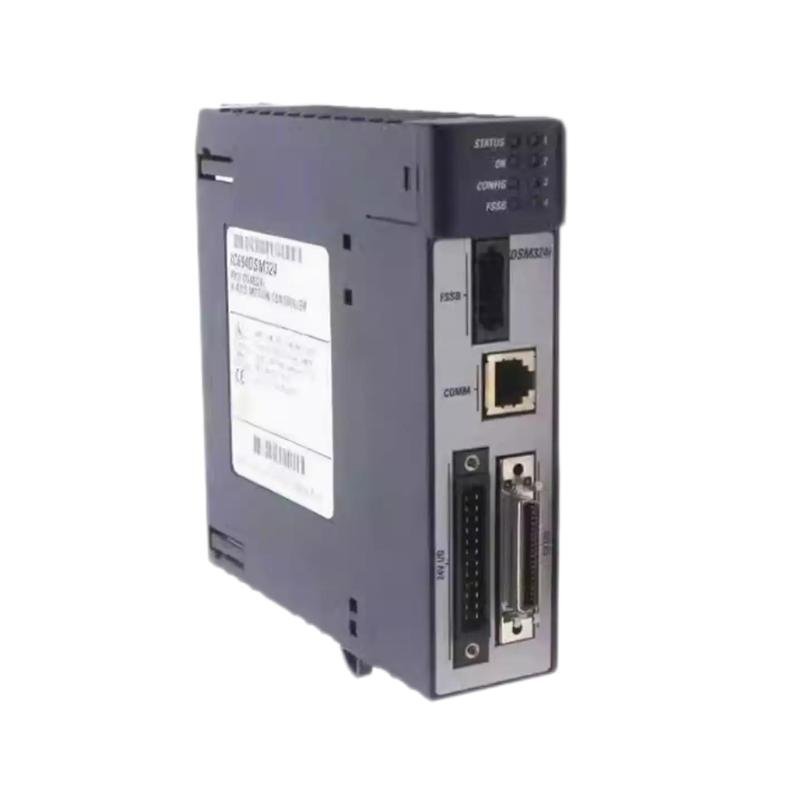

GE Fanuc IC694DSM324 Motion Controller Module

Name: GE Fanuc IC694DSM324 Motion Controller Module
Brand: GE Fanuc
Availability: InStock

Manufacturer: GE Fanuc

Product Number: IC694DSM324

Category: Motion Controller Module (PACSystems RX3i platform)

System Compatibility: PACSystems RX3i platform

Function: Supports advanced control of servo and stepper motors for precise and synchronized motion control

Application: Industrial automation requiring precise multi-axis motion control

Contact Sales

Product Description

The GE Fanuc IC694DSM324 is a powerful Motion Controller Module designed for precise and synchronized motion control within the PACSystems RX3i platform. It supports advanced control of servo and stepper motors and integrates seamlessly with GE Fanuc’s automation systems. With high-speed processing, real-time feedback, and deterministic control loops, the DSM324 module is ideal for demanding motion control applications in packaging, material handling, CNC machines, and robotics.

Key Features

Multi-Axis Control: Supports control of up to two independent axes of motion, enabling complex coordinated movement.
High-Speed Communication: Utilizes fiber-optic SERCOS interface for fast, noise-immune communication with servo drives.
Integrated Motion Functions: Offers built-in capabilities for position, velocity, torque, homing, and camming operations.
Real-Time Feedback: Provides deterministic control loops with high-speed feedback for precise motion control.
Easy Configuration: Compatible with GE Fanuc’s programming tools, simplifying setup and reducing engineering time.
Diagnostics and Status Monitoring: Built-in LED indicators and software diagnostics for quick fault detection and resolution.
Robust Design: Designed to withstand industrial environments with wide operating temperature range and high immunity to interference.

Technical Specifications

Dimensions and Weight

Item	Specification
Dimensions	130 mm (H) × 35 mm (W) × 120 mm (D)
Weight	0.3 kg

Module Information

Item	Specification
Model Number	IC694DSM324
Module Type	Motion Controller Module
Communication Interface	SERCOS (fiber-optic)
Axes Supported	2 independent or coordinated axes
Motion Functions	Position, Velocity, Torque, Camming, Homing

Electrical and Physical Characteristics

Item	Specification
Input Voltage	Supplied via RX3i backplane
Power Consumption	< 6 W
Operating Temp	0°C to +60°C
Storage Temp	-40°C to +85°C
Humidity	5% to 95% RH, non-condensing
Protection Class	IP20

System Compatibility

Item	Specification
Compatible Platform	GE Fanuc PACSystems RX3i
Programming Software	Machine Edition (Proficy Logic Developer)
Servo Interface	SERCOS fiber-optic

Industry Applications

Packaging Machinery: Enables precise synchronization for high-speed packaging lines.
Material Handling: Controls conveyor systems and robotic arms for flexible automation.
CNC Machines: Drives coordinated motion in milling, turning, and grinding machines.
Robotics: Offers deterministic motion control for robotic joints and automated systems.
Assembly Automation: Supports pick-and-place and repetitive motion sequences in manufacturing lines.

The GE Fanuc IC694DSM324 Motion Controller Module delivers high-performance, real-time motion control tailored to industrial automation environments. Its seamless integration with the RX3i platform and robust motion capabilities make it an essential choice for precision-driven applications.
