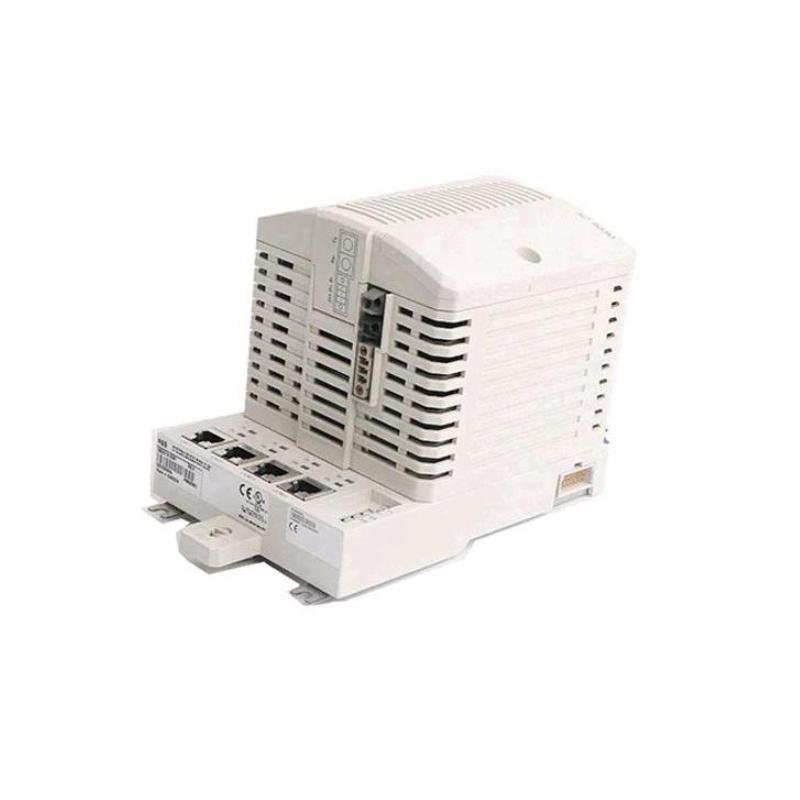

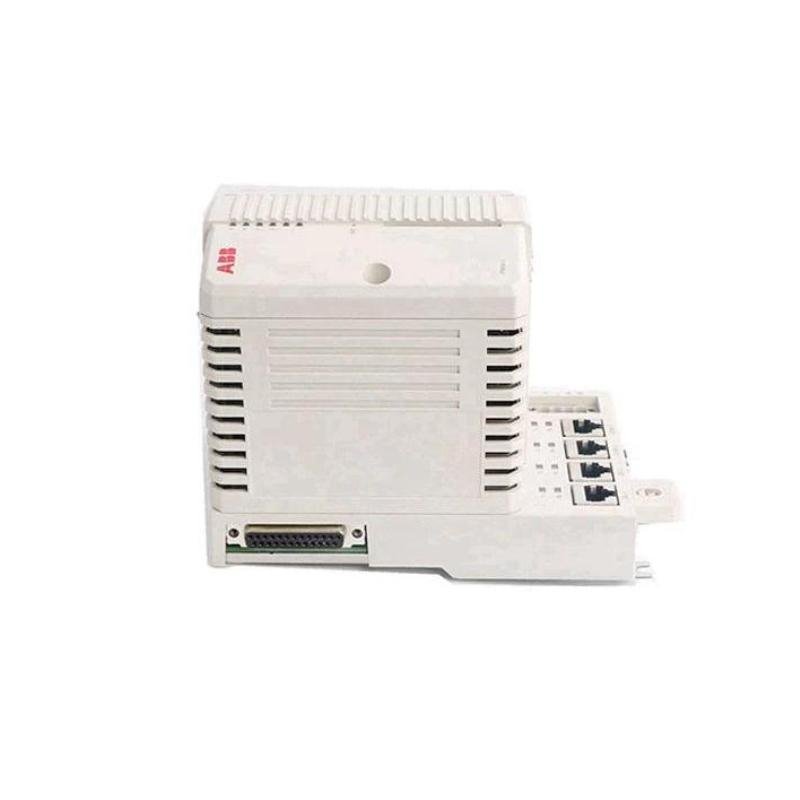

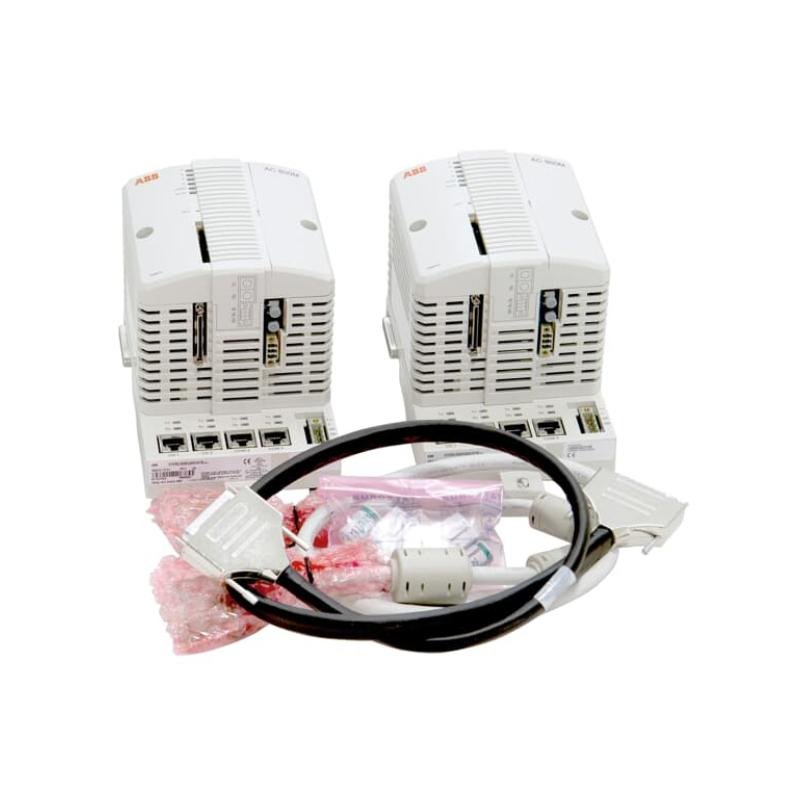

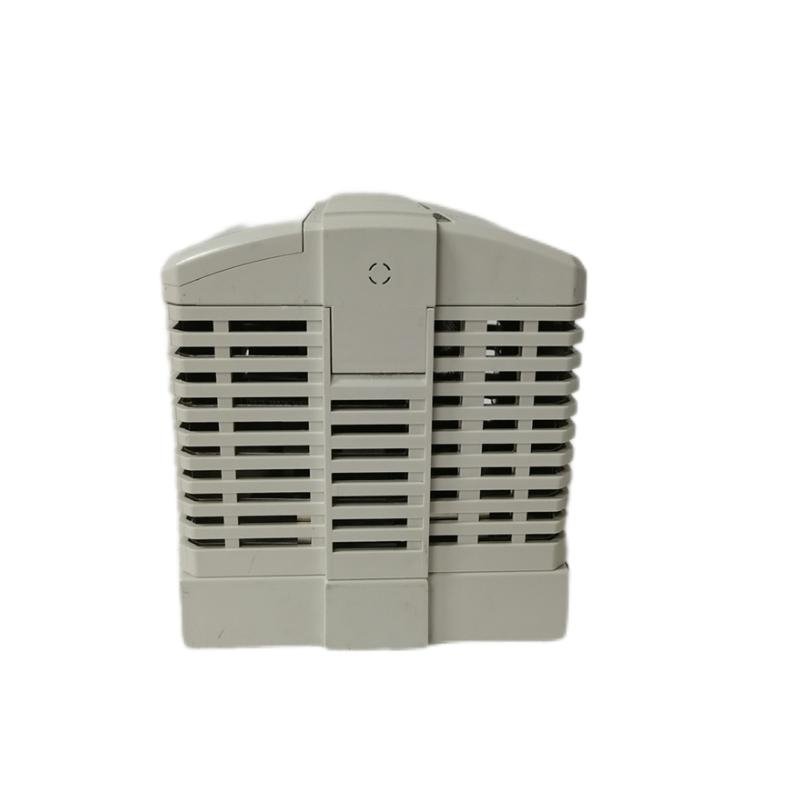

ABB PM863K02 3BSE088382R1 CPU Controller Unit
Manufacturer: ABB
Product Number: PM863K02 (3BSE088382R1)
Category: CPU Controller Unit (AC 800M series)
System Compatibility: ABB AC 800M series
Features: Rugged design, enhanced processing power, modularity, and redundancy
Application: Industrial automation systems requiring high-performance and reliable control
Product Description
The ABB PM863K02 3BSE088382R1 is a rugged, high-performance CPU controller unit in the AC 800M series designed to meet the stringent requirements of industrial automation systems. The unit offers enhanced processing power, modularity and reliability, making it suitable for a wide range of industrial applications including process automation, manufacturing and utilities.
PM863K02 is designed to provide comprehensive control functions in industrial automation systems. It integrates a microprocessor, RAM memory, real-time clock, LED indicators, INIT button and CompactFlash interface. The device has two RJ45 Ethernet ports for network connection and two RJ45 serial ports for configuration and communication, ensuring a variety of connection options.
Technical Specifications
| Specification | detail |
|---|---|
| model | PM863K02 |
| Order Code | Product number: 3BSE088382R1 |
| Dimensions (H x W x D) | 135 × 186 × 238 mm |
| weight | 2.4 kg |
| processor | High-speed microprocessor |
| memory | RAM memory |
| Communication Ports |
2 RJ45 Ethernet ports for network connection
2 RJ45 serial ports for configuration and communication |
| Redundancy support | Supports high integrity applications (up to SIL 3) by adding the SM812 module |
| Real-time clock | Integrated real-time clock for timestamping and scheduling |
| LED indicators | Provides status indication for easy diagnosis |
| INIT button | Facilitates initialization and maintenance tasks |
| CompactFlash Interface | Supports CompactFlash for additional storage |
| Operating temperature | Suitable for standard industrial environments |
| power supply | Compatible with AC 800M power module |
Key Features
-
High integrity and safety: Supports high integrity applications by adding the SM812 module, achieving safety integrity levels up to SIL 3. This makes it suitable for safety-critical applications where reliability and safety are paramount.
-
Enhanced Connectivity: The PM863K02 is equipped with built-in redundant Ethernet communication ports, ensuring increased reliability and seamless integration into a variety of network configurations. This redundancy increases system availability and reduces the risk of communication failures.
-
Modular and scalable design: The modular architecture of the AC 800M series enables flexible system configuration and easy expansion to meet a variety of application requirements. This scalability ensures that the control system can evolve with the changing needs of industrial processes.
-
Versatile Communication Interface: The unit connects to the S800 I/O modules for digital and analog input/output, providing a versatile communication interface for integration with a variety of equipment and systems within industrial settings.
-
Advanced Programming Capabilities: The PM863K02 can be programmed using ABB’s 800xA Control Builder software, which provides advanced programming capabilities, allowing control strategies to be customized for specific industrial processes.
application
PM863K02 is suitable for a wide range of industrial applications, including:
-
Process Automation: Ideal for controlling and monitoring processes in industries such as oil and gas, chemicals and pharmaceuticals, where precise control and safety are critical.
-
Manufacturing: For discrete manufacturing processes, including automotive and electronics production, where flexibility and reliability are critical.
-
Utilities: For water treatment plants, power generation and distribution systems, ensuring utility services operate efficiently and reliably.
