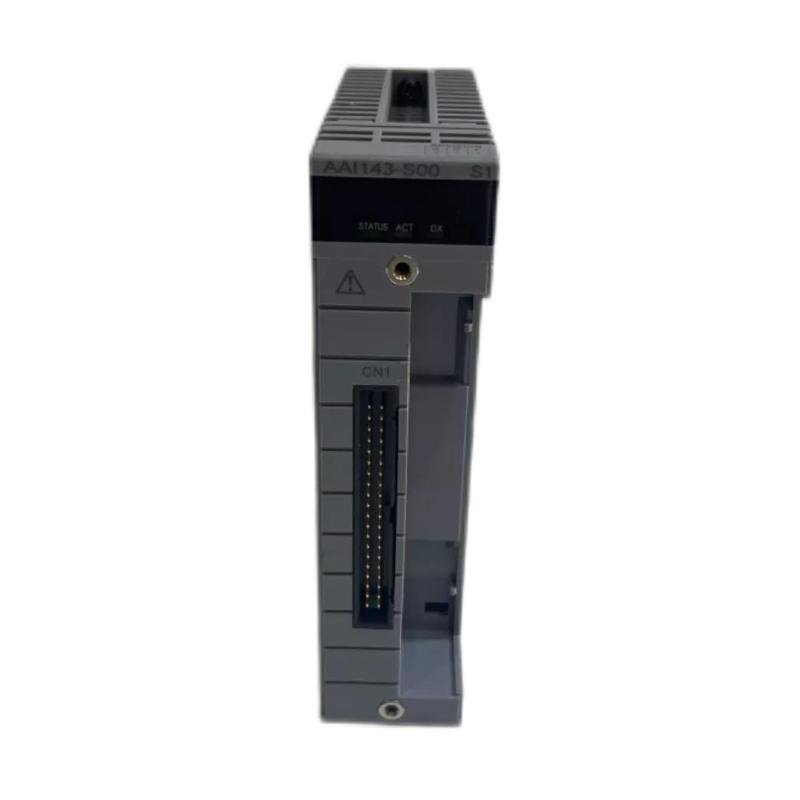

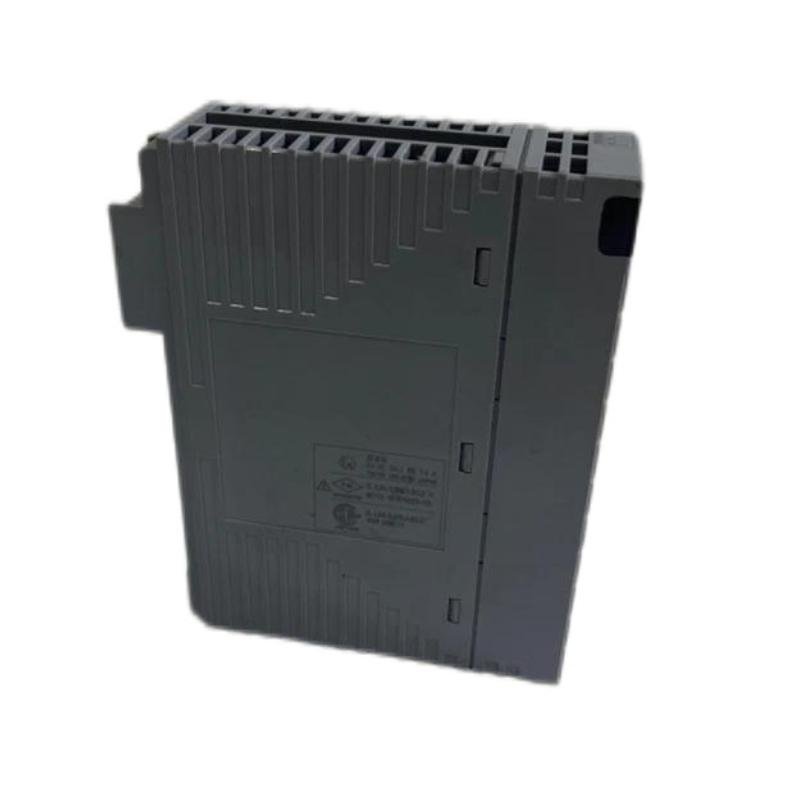

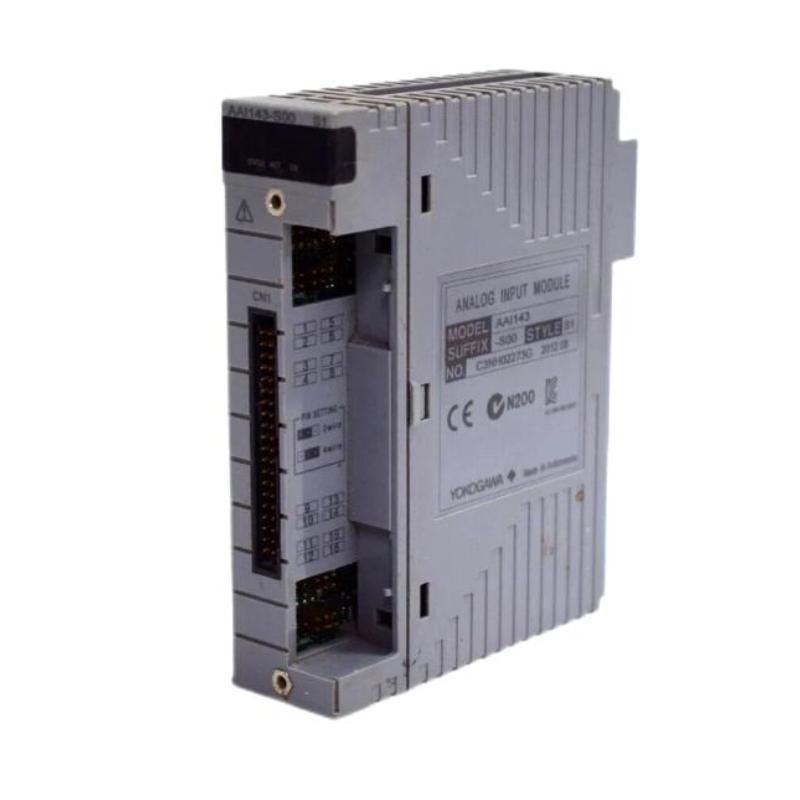

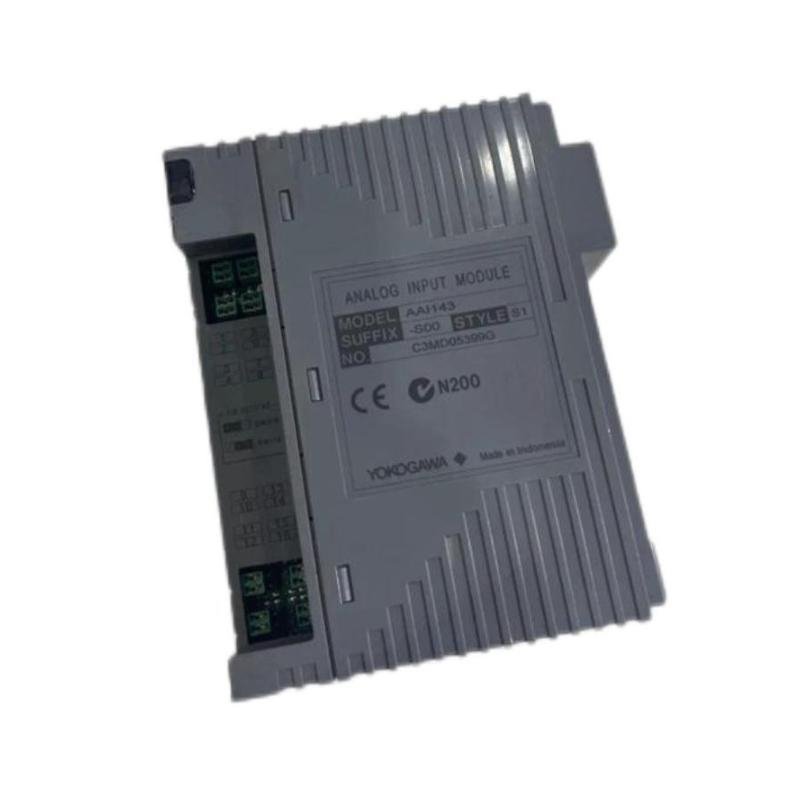

Yokogawa AAI143-s00 Analog Input Modules
Manufacturer: Yokogawa
Product Number: AAI143-S00
Category: Analog Input Module (Field I/O modules)
Number of Channels: 16
Input Signal Types: 4-20 mA, 0-10 V, thermocouple, RTD
Resolution: 16-bit
System Compatibility: Yokogawa industrial control systems
Application: High-precision, multi-channel analog input for industrial process control
Product Description
The Yokogawa AAI143-S00 Analog Input Module is a high-precision, multi-channel input module designed for use in industrial control systems. It is part of the Yokogawa line of field I/O modules, which are renowned for their reliability and accuracy in monitoring and controlling various analog signals. This module is ideal for environments where high-performance data acquisition and signal processing are required, making it suitable for industries such as manufacturing, chemical processing, energy, and utilities.
The AAI143-S00 module is designed to interface with a wide range of analog sensors, including temperature, pressure, and flow meters, ensuring the precise measurement of physical parameters. It offers excellent noise immunity and is designed to operate effectively in environments with electrical interference. The module is easy to configure and integrate into existing Yokogawa control systems, providing seamless communication and data transmission.
Key Features
-
High Precision and Accuracy: Provides accurate analog signal processing for reliable measurements in various industrial applications.
-
Wide Input Range: Capable of accepting various input signal types, including 4-20 mA and 0-10 VDC.
-
Noise Immunity: Designed to operate effectively in noisy industrial environments, minimizing signal distortion and interference.
-
Modular and Scalable: Easily integrates with other Yokogawa I/O modules, allowing for system expansion as needed.
-
Flexible Configuration: Supports multiple input channels, making it adaptable to a variety of measurement applications.
-
High-Quality Components: Built using industry-standard components to ensure durability and long operational life.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Input Range | 0–10 VDC, 4–20 mA |
| Input Impedance | > 250 kΩ (Voltage Mode), < 100 Ω (Current Mode) |
| Output Type | Analog Signal Output (0-10 V or 4-20 mA) |
| Power Consumption | Approx. 5 W |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Vibration | Up to 1 g RMS |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Yokogawa Distributed Control Systems (DCS) |
| Communication Protocol | Yokogawa Fieldbus or Yokogawa Profibus |
| Software Configuration | Yokogawa Configuration Software (Exaquantum, Centum VP) |
Industry Applications
-
Manufacturing: Used for monitoring and controlling various production processes, including temperature, pressure, and flow.
-
Chemical Processing: Monitors critical chemical reactions and fluid properties, ensuring safe and efficient operation.
-
Energy and Utilities: Used in power plants for controlling energy generation processes and monitoring environmental conditions.
-
Oil and Gas: Enables the measurement of temperature and pressure in pipelines and refining processes.
-
Food and Beverage: Ensures that critical parameters like temperature and pressure are within the desired range to maintain product quality.
The Yokogawa AAI143-S00 Analog Input Module is a versatile and reliable solution for integrating analog sensors into industrial control systems. Its high accuracy, noise immunity, and flexible configuration options make it ideal for a wide range of applications in industries where precision measurement and real-time data are essential. Whether used in manufacturing, chemical processing, or energy management, it ensures optimal performance and reliability.
