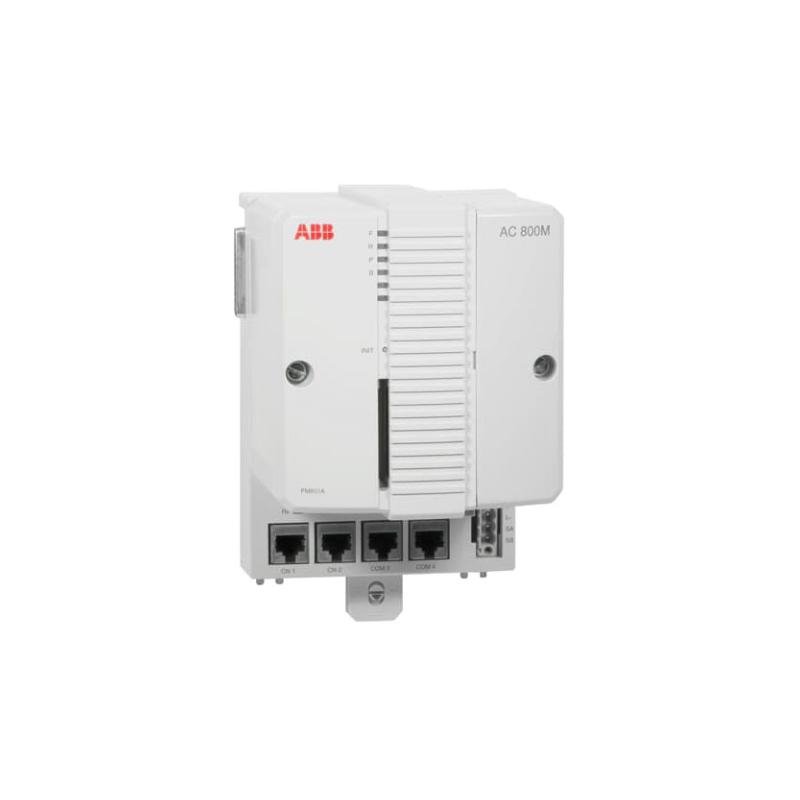

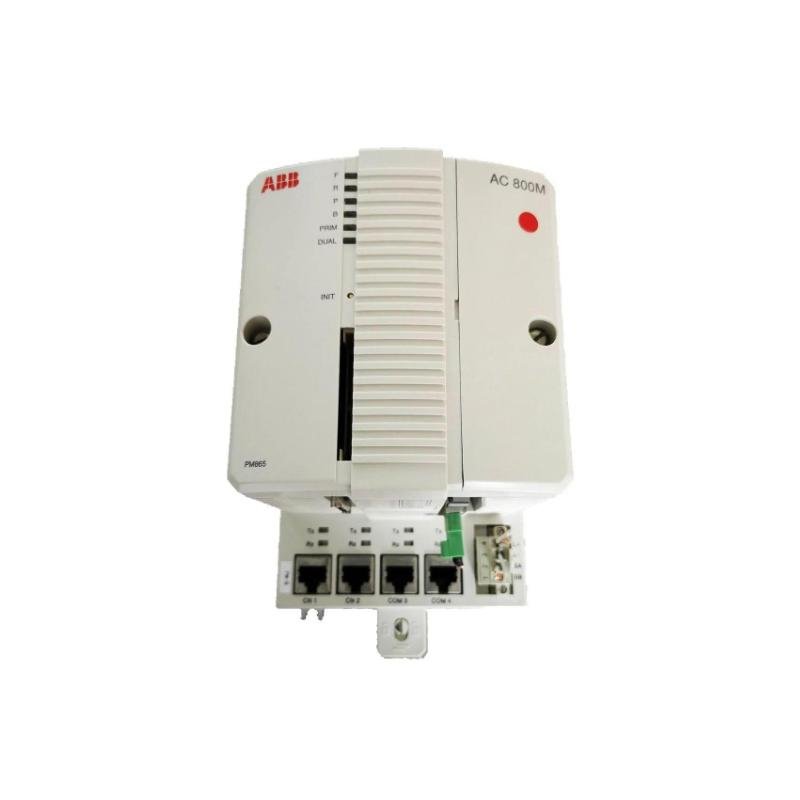

ABB PM862K02 3BSE081636R1 CPU Controller Unit
Manufacturer: ABB
Product Number: PM862K02 (3BSE081636R1)
Category: CPU Controller Unit (AC 800M series)
System Compatibility: ABB AC 800M series
Features: High-performance, redundant processor unit with robust processing capabilities and integrated redundancy
Application: Industrial automation and process control requiring high reliability
Product Description
The ABB PM862K02 3BSE081636R1 is a high-performance, redundant processor unit within the AC 800M series, designed to meet the rigorous demands of industrial automation and process control applications. This unit offers robust processing capabilities, flexibility, and reliability, making it suitable for a wide range of industrial environments.

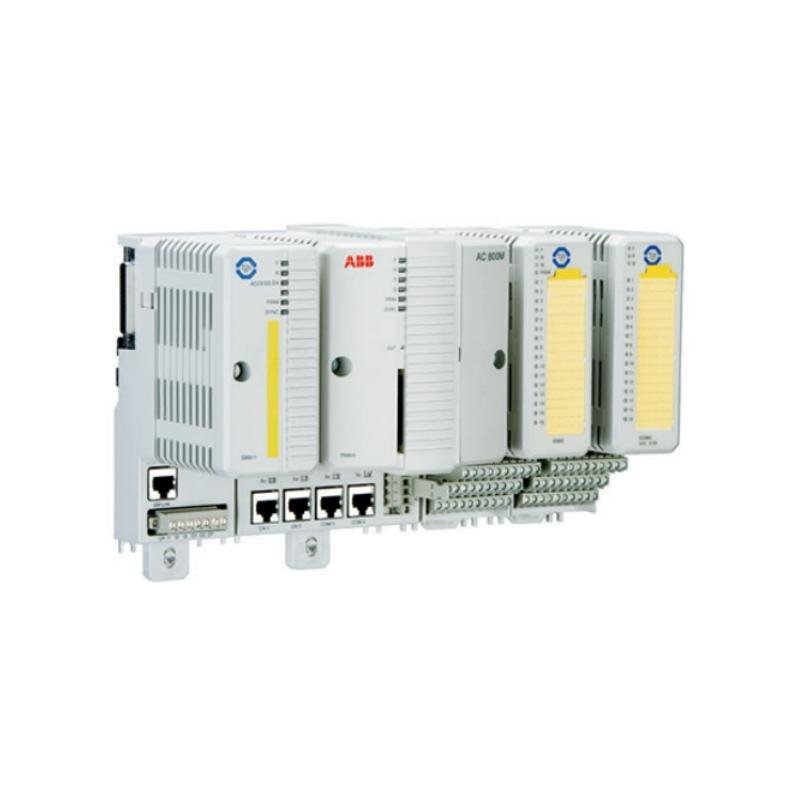

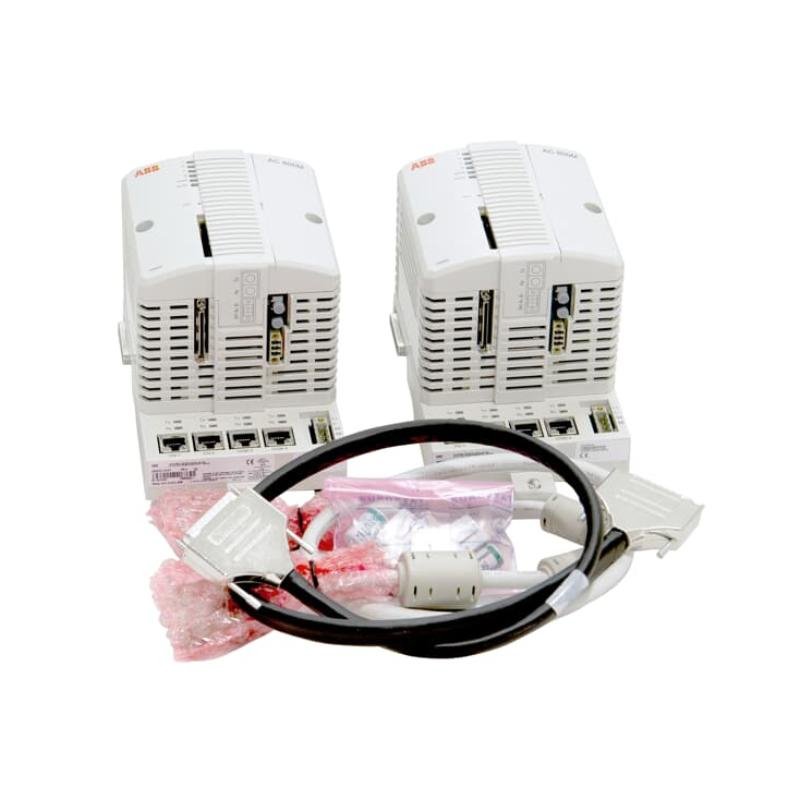

The AC 800M series comprises rail-mounted modules, including CPUs, communication modules, power supply modules, and various accessories. The PM862K02 is a redundant processor unit designed for the ABB AC 800M control system, offering high performance and reliability for mission-critical applications. It features dual PM862 CPUs that provide redundancy and failover capability, ensuring continuous operation of your control system even in the event of a processor unit failure.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | PM862K02 |
| Ordering Code | 3BSE081636R1 |
| Dimensions (H x W x D) | 135 × 186 × 119 mm |
| Weight | 2.7 kg |
| Processor | Dual PM862 CPUs with 32 MB memory and 67 MHz CPU clock |
| Memory | 32 MB RAM; supports CompactFlash for additional storage |
| Communication Ports |
2 x RJ45 Ethernet ports (CN1, CN2) for Control Network connectivity
2 x RJ45 serial ports (COM3: RS-232C with modem control signals; COM4: isolated, for configuration tool connection) |
| Redundancy Support | Supports CPU redundancy for higher system availability, including redundancy of CPU, CEX-Bus, communication interfaces, and S800 I/O |
| Real-Time Clock | Integrated real-time clock for time-stamping and scheduling |
| LED Indicators | Provides status indication for easy diagnostics |
| INIT Push Button | Facilitates initialization and maintenance tasks |
| Operating Temperature | Suitable for standard industrial environments |
| Power Supply | Compatible with AC 800M power supply modules |
Key Features
-
High Processing Power: The PM862K02 is equipped with dual high-performance processors capable of handling complex control algorithms and large-scale applications.
-
Modular Design: Its modular architecture allows for flexible system configurations and easy expansion, catering to various application requirements.
-
Redundancy: Supports CPU redundancy, ensuring continuous operation and high availability for critical processes.
-
Versatile Communication: Offers multiple communication ports, including Ethernet and serial interfaces, enabling seamless integration with various networks and devices.
-
Integrated Real-Time Clock: Ensures accurate time-stamping and scheduling, essential for time-sensitive applications.
Applications
The PM862K02 is suitable for a wide range of industrial applications, including:
-
Process Automation: Ideal for controlling and monitoring processes in industries such as oil and gas, chemical, and pharmaceuticals.
-
Manufacturing: Suitable for discrete manufacturing processes, including automotive and electronics production.
-
Utilities: Applicable in water treatment plants, power generation, and distribution systems.
