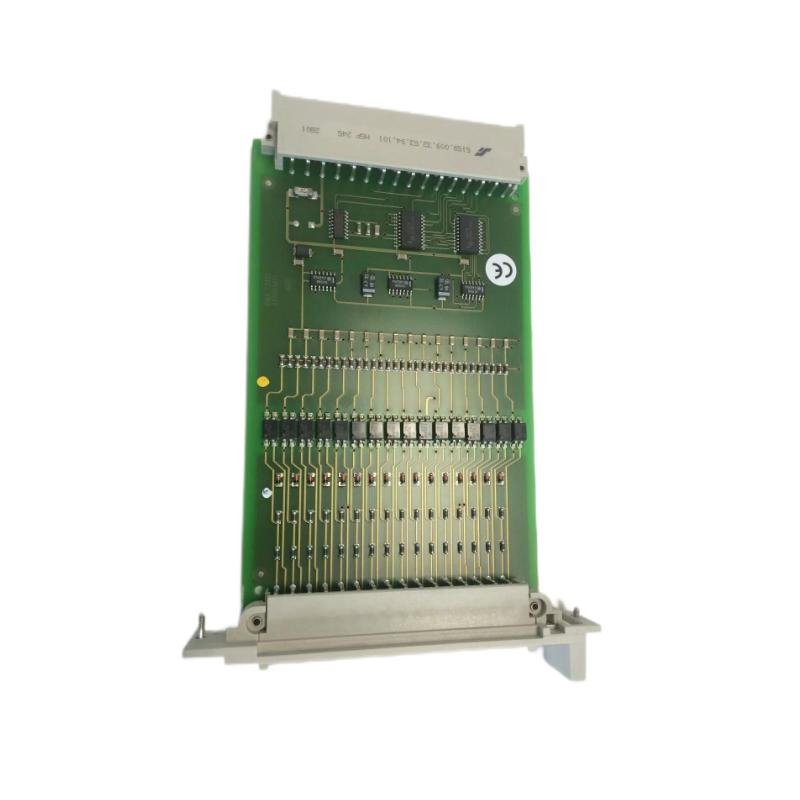

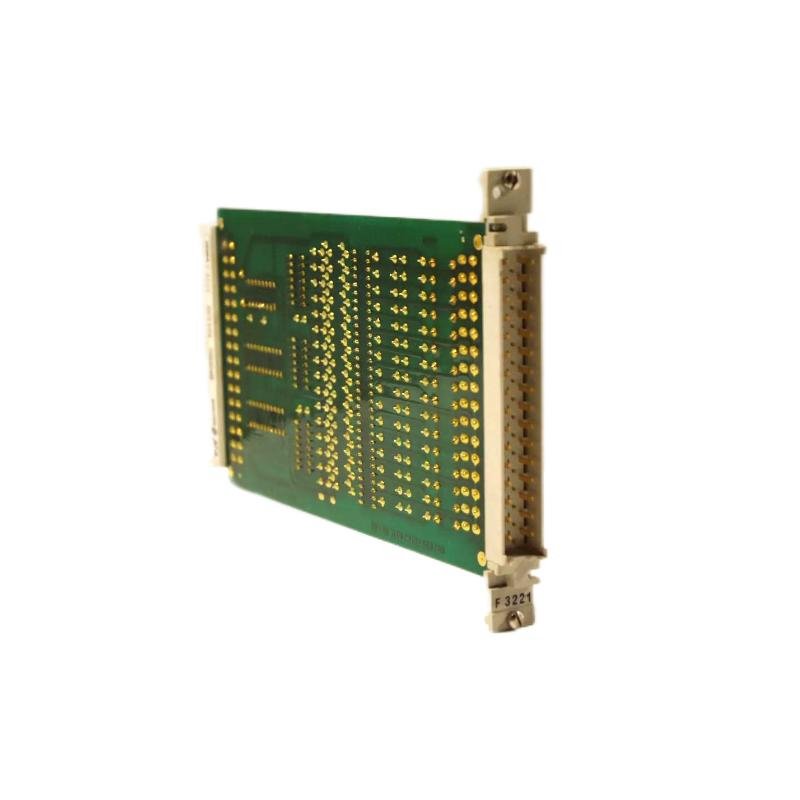

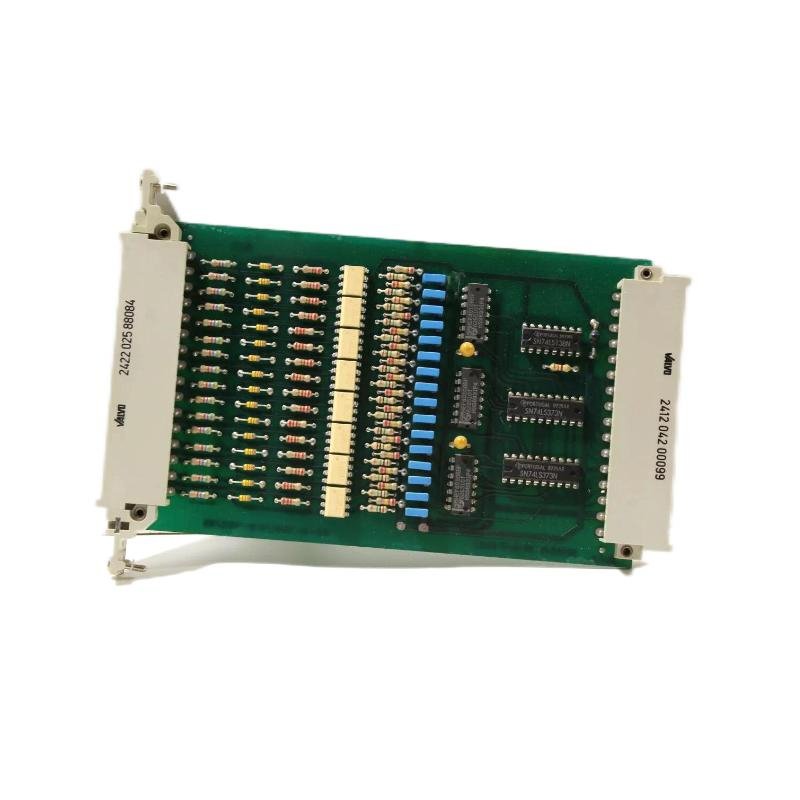

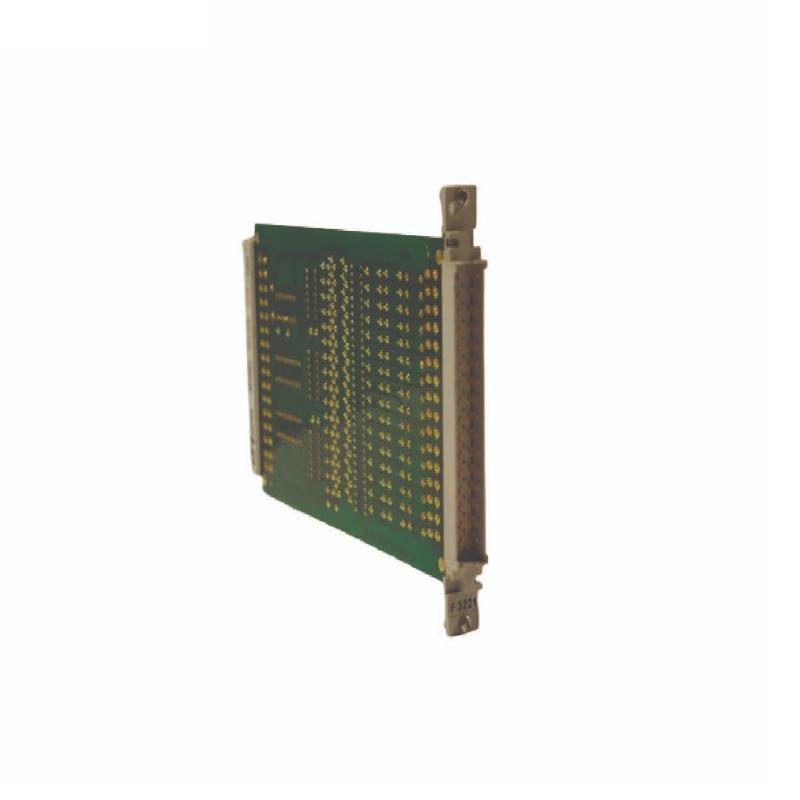

Hima F3221 Digital Input Module
Manufacturer: HIMA
Product Number: F3221
Category: Digital Input Module (HIMax and HIQuad safety systems)
Number of Channels: 16 (typical)
Input Type: 24 VDC digital input
Safety Integrity Level: Suitable for SIL 3 applications
Function: Accurate and safe digital input processing for safety-critical applications
Product Description
The HIMA F3221 digital input module is a high reliability input module designed for safety critical and industrial automation applications. As a key component of HIMA’s HIMax and HIQuad safety systems , the F3221 ensures accurate and safe digital signal acquisition, making it the first choice for applications that require high availability, fault tolerance and strong system integrity.
The F3221 module is designed to handle multiple digital input channels , providing real-time monitoring and precise signal detection. It features advanced diagnostics, galvanic isolation, and high immunity to electromagnetic interference (EMI), ensuring uninterrupted operation even in harsh industrial environments.
The module features a compact and rugged design measuring 130 x 30 x 100 mm and weighing 0.2 kg , and is built to withstand extreme conditions while maintaining optimal performance. Its redundancy features and SIL 3 certification (according to IEC 61508) make it ideal for industries such as oil and gas, chemical processing, power generation and manufacturing.
Main Features
- High-performance digital input processing–capable of processing multiple input signals with high accuracy.
- Fault-tolerant and redundant design–ensures continuous operation in mission-critical environments.
- SIL 3 certified (IEC 61508) — Meets stringent safety and reliability standards.
- Advanced Diagnostics–Enables real-time system health monitoring and fault detection.
- Galvanic Isolation–Provides protection against electrical interference and signal disturbances.
- Wide voltage compatibility–supports various digital input voltage levels.
- Electromagnetic Immunity–Ensures reliable operation in high EMI environments.
- Compact and lightweight–dimensions: 130 x 30 x 100 mm , weight: 0.2 kg.
- Seamless integration–fully compatible with HIMax and HIQuad safety systems.
- Meets industry standards–Designed for harsh industrial environments and safety applications.
Technical specifications
| scope | Specification |
|---|---|
| Module Type | Digital Input Modules |
| aspect | 130 x 30 x 100 mm |
| weight | 0.2 kg |
| Input Channels | Multiple digital input channels |
| Input voltage range | 24V DC (nominal), supports wide voltage range |
| Input signal type | Discrete signals with configurable parameters |
| Response time | Real-time application fast response |
| diagnosis | Built-in self-diagnostics and error detection |
| isolation | Electrical isolation between channels |
| Redundancy support | Yes, redundant configuration is supported |
| Communication interface | Seamless integration with HIMA safety systems |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Humidity resistance | 5% to 95% RH (non-condensing) |
| Installation Type | DIN rail mount design |
| Security certification | SIL 3 (IEC 61508) |
| Electromagnetic compatibility | Strong resistance to electromagnetic interference and electrical noise |
application
The HIMA F3221 digital input module is widely used in safety-critical applications that require high-reliability digital signal acquisition. Its main applications include:
- Oil & Gas–For emergency shutdown (ESD) systems, fire and gas (F&G) monitoring, and pipeline safety controls.
- Chemical Processing–Ensure safe operation of reactors, valves and hazardous process monitoring.
- Power Generation–Applied in turbine controls, boiler safety systems and generator protection.
- Manufacturing and Industrial Automation–For machine safety, interlock control and automated process safety.
- Water and Wastewater Treatment–Monitor pump status, valve position and critical alarms.
- Pharmaceutical industry–ensuring strict safety regulations are followed during production.
- Mining and Metals–Providing safety monitoring for conveyor belts, crushers and heavy machinery.
- Aerospace & Defense–Supporting mission-critical control systems requiring high safety integrity.
- Transportation and Rail–For rail signaling, level crossing safety and automatic traffic control.
- Renewable Energy–Assists with safety monitoring of solar and wind energy systems.
