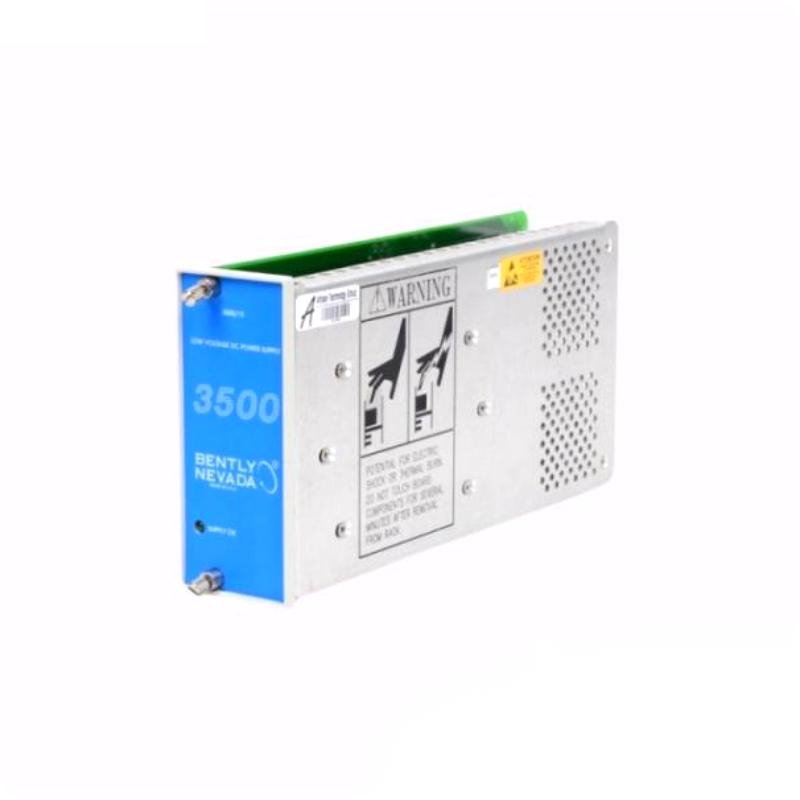

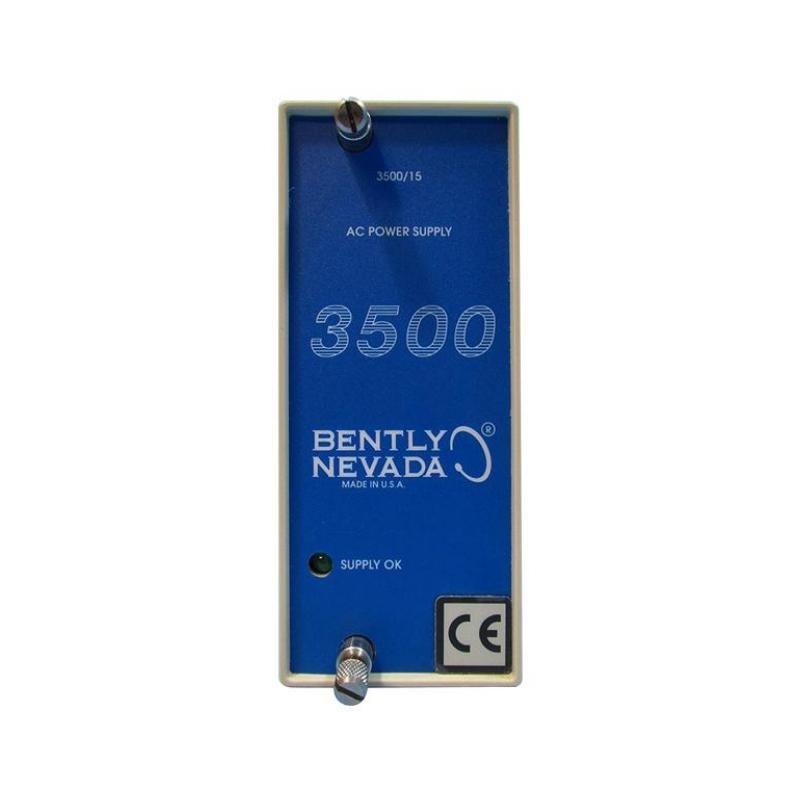

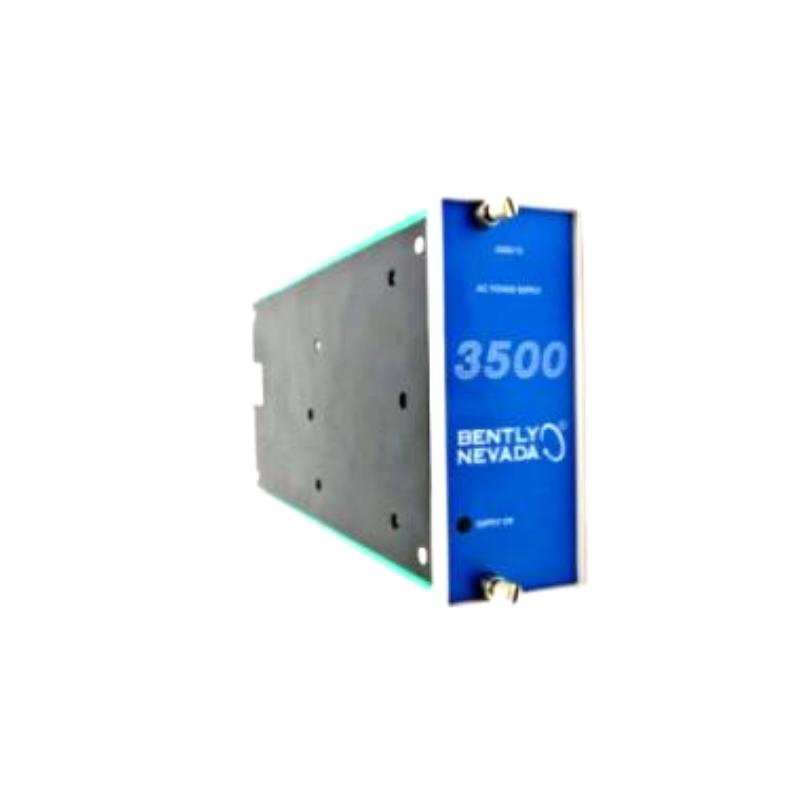

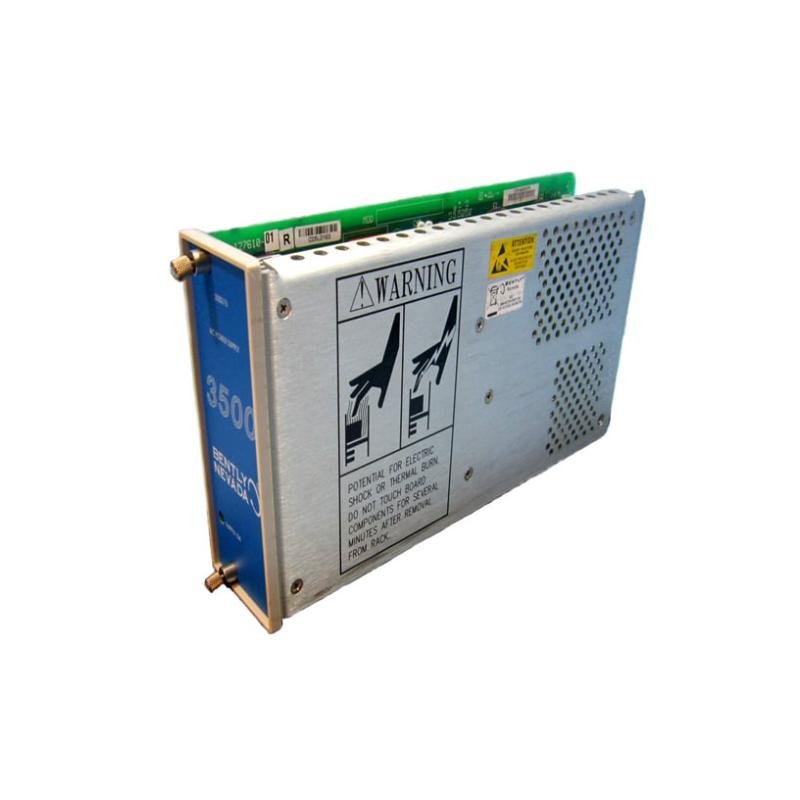

Bently Nevada 3500/15 114M5330-01 Power Supply Module
Manufacturer: Bently Nevada
Product Number: 3500/15 (114M5330-01)
Category: Power Supply Module (3500 Series Machinery Protection System)
Output: Low-voltage DC power
System Compatibility: Bently Nevada 3500 Series
Function: Provides low-voltage DC power, operates with corresponding Low Voltage DC Power Input Module
Product Description
The Bently Nevada 3500/15 114M5330-01 Power Supply Module is an essential component of the 3500 Series Machinery Protection System. It provides low-voltage DC power and operates in conjunction with the corresponding Low Voltage DC Power Input Module (PIM). The power supply module supports hot-swapping, allowing replacement without disrupting rack operations. The 3500 rack can accommodate one or two power supplies for redundancy, ensuring system reliability in case of failure.
Key Features
- Supports Low Voltage DC powerwith an input range of 20-30 VDC.
- Redundant power designallows for two power modules to be installed simultaneously, providing backup power functionality.
- Hot-swappable capabilityensures that power modules can be replaced without affecting rack operation.
- Efficient and stable power conversionfor safe operation of 3500 series modules.
- Compact designsuitable for industrial environments.
- Wide industry applicability, including oil & gas, power generation, aerospace, and manufacturing.
Technical Specifications
Dimensions and Weight
| Item | Specification |
| Module Dimensions | 120.7 mm × 50.8 mm × 251.5 mm |
| Module Weight | 1.39 kg |
General Information
| Item | Specification |
| Compatible Rack | Bently Nevada 3500 Rack |
| Installation Location | Designated slots on the left side of the rack |
| Supported Power Supplies | 1 or 2 (redundancy supported) |
| Compatibility | Only compatible with corresponding Low Voltage DC PIM, not compatible with Legacy 3500 DC power supplies |
Electrical Specifications
| Item | Specification |
| Input Voltage | 20-30 VDC |
| Maximum Current | 11.0 A |
| Overvoltage Protection | Fuse on PIM blows upon overvoltage |
| Undervoltage Protection | Does not damage power module or PIM |
Environmental Limits
| Item | Specification |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
Industry Applications
- Oil & Gas
- Power Generation
- Aerospace
- Chemical Industry
- Manufacturing Industry
