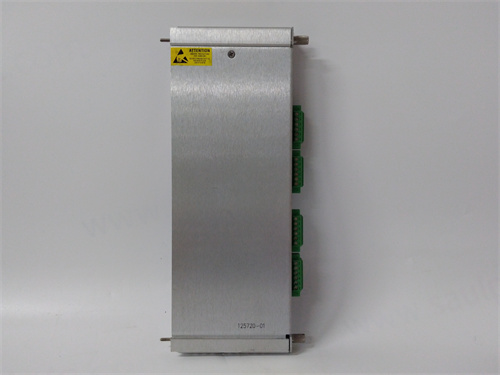

BENTLY 125720-01 Product Overview

BENTLY 125720-01 is a four-channel relay input/output module produced by Bently,designed for industrial automation and control systems.The following is a detailed introduction to the product.

Product Features

Multi-channel support

The module supports four channels,each of which can work independently,and is used to connect multiple sensors or measurement points,which improves the flexibility and scalability of the system.

Relay output

It has a relay output function that can be used to control other devices,perform alarm operations or relay signals.The high reliability and stability of the relay output ensure the normal operation of the system.

Programmability

The module has a programmable function,and users can configure and program the module according to specific needs.This flexibility enables the module to adapt to different application scenarios and changing needs.

Real-time data processing

The module has real-time data processing capabilities,which can trigger relay actions based on the status of sensor signals.This real-time function is essential for industrial automation systems that require fast response times.

Communication interface

It is usually equipped with communication interfaces such as RS-232/485 and Ethernet for data exchange and communication with other devices and control systems,which helps to achieve system integration and interoperability.

Built-in diagnostic function:Some models have built-in fault diagnostic function,which can detect relay faults and generate alarms or alarm information,which helps to find and solve potential problems in time and improve system reliability and safety.

Industrial-grade design:The module adopts industrial-grade design,which is suitable for harsh industrial environments such as high temperature,humidity and vibration,ensuring the stable operation of the module under harsh conditions.

Application fields

BENTLY 125720-01 four-channel relay input/output module is widely used in the following fields

Industrial automation:used for logic control,interlocking operation and signal transmission between different devices.

Power system:used to protect,monitor and control circuits,such as overload protection,short circuit protection,etc.

Mechanical control:used for control and protection of mechanical equipment,such as motor start,stop and reverse control.

Building automation:used to control lighting,ventilation,air conditioning and other equipment to improve building energy efficiency and comfort.

Security system:used for fire alarm,anti-theft door control and other security systems to improve the security of the place.

Product Specifications

Some product specifications of BENTLY 125720-01 are as follows

Processor:32-bit RISC processor.

Clock frequency:100MHz.

Memory:128MB(may vary depending on the specific model).

Flash memory:256MB(may vary depending on the specific model).

Operating temperature:typically-25°C to+60°C(some sources provide data of 0~55°C,which may vary depending on the specific model or application scenario).

Storage temperature:-40°C to+85°C.

Relative humidity:5%to 95%(non-condensing).

Protection level:IP65.

Product size:The data provided by different sources may vary,such as 166mm x 112mm x 36mm or 300mm x200mm x100mm,which may be related to the specific model or production batch.

Product weight:about 375g(may vary depending on the specific model).
