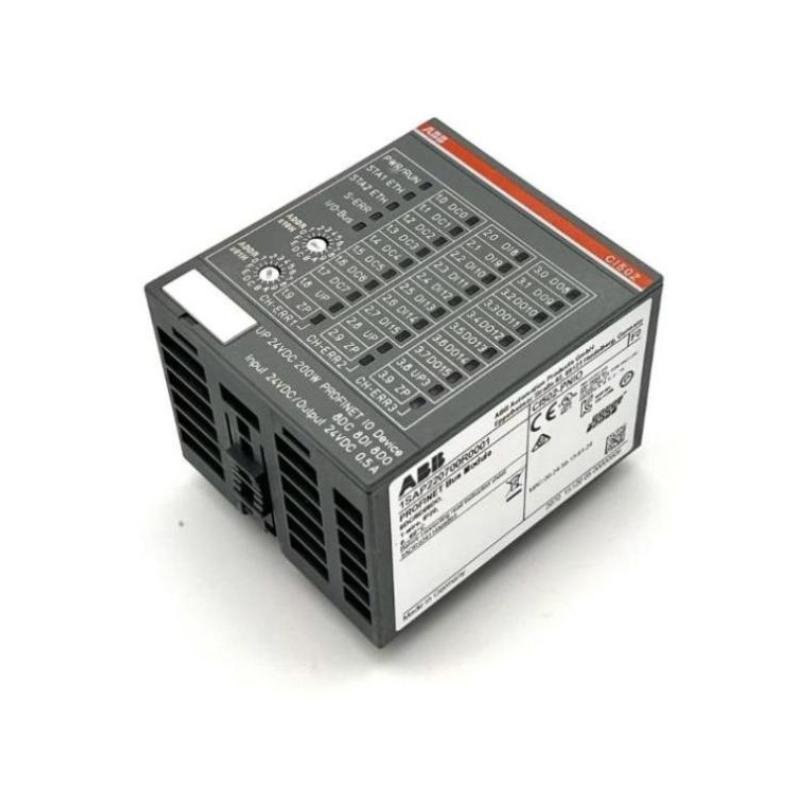

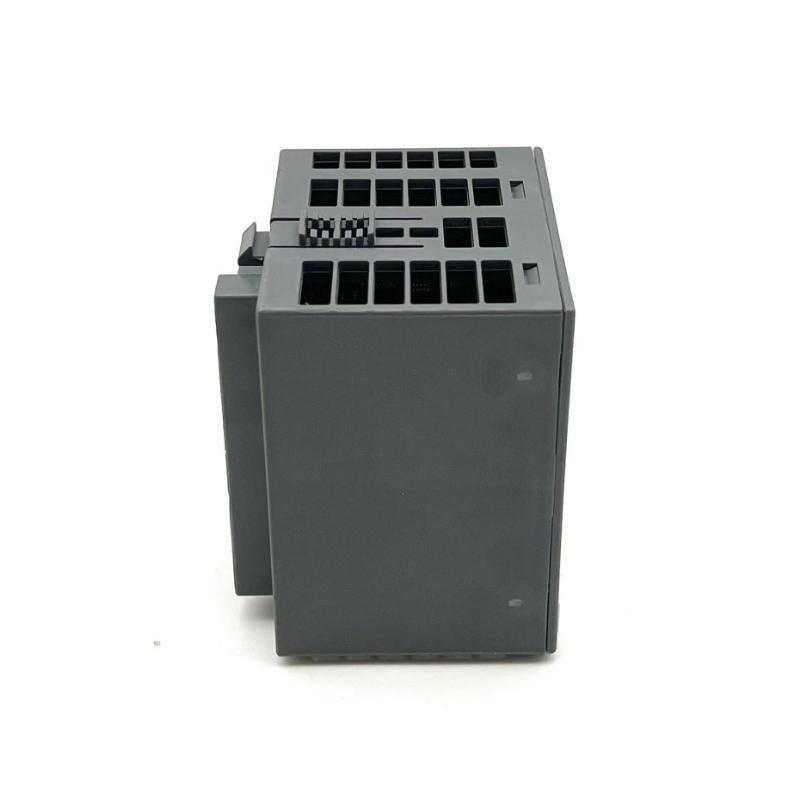

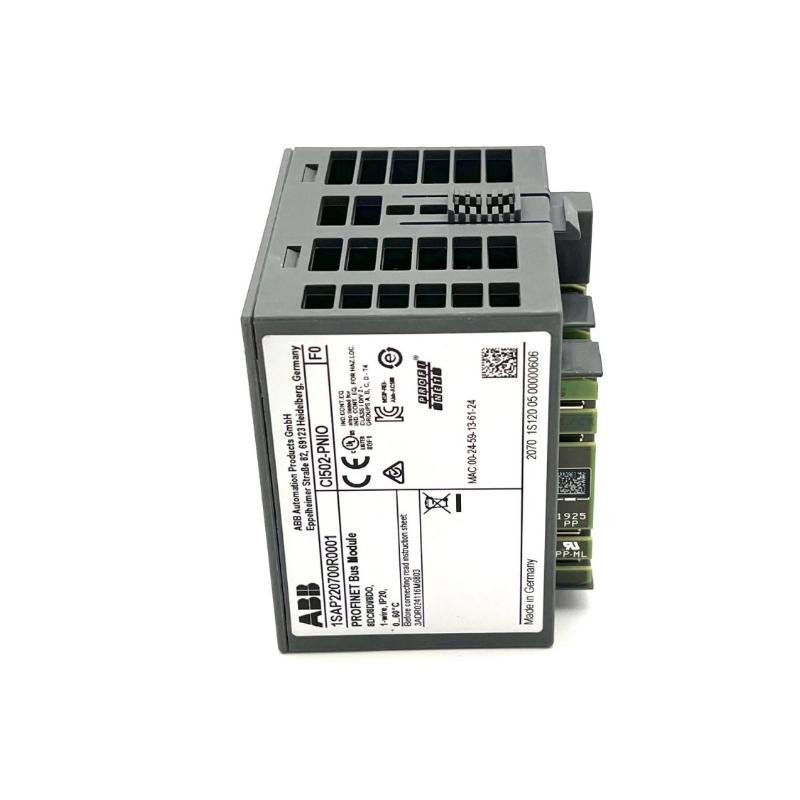

ABB CI502-PNIO 1SAP220700R0001 S500 Interface Modules
Manufacturer: ABB
Product Number: CI502-PNIO (1SAP220700R0001)
Category: S500 Interface Module
Protocol: PROFINET IO
System Compatibility: ABB S500 I/O systems, PROFINET-based automation controllers
Function: Enables high-speed, deterministic communication between remote S500 I/O modules and PROFINET-based automation systems
Product Description
The ABB CI502-PNIO 1SAP220700R0001 is a PROFINET IO communication interface module designed for use with ABB’s S500 I/O systems. It enables high-speed, deterministic communication between remote S500 I/O modules and PROFINET-based automation controllers. The module acts as a powerful and flexible network interface, ideal for integrating distributed I/O in complex automation architectures.
This interface module is well-suited for industrial applications in factory automation, process control, and infrastructure systems, offering reliable data exchange, reduced wiring complexity, and simplified system expansion.
Key Features
-
PROFINET IO Connectivity–Facilitates seamless communication with PROFINET-based control systems
-
S500 I/O Compatibility–Interfaces directly with ABB S500 I/O modules for distributed I/O applications
-
High-Speed Communication–Supports fast, real-time data exchange for time-critical applications
-
Flexible Topology Support–Accommodates line, star, and ring network configurations
-

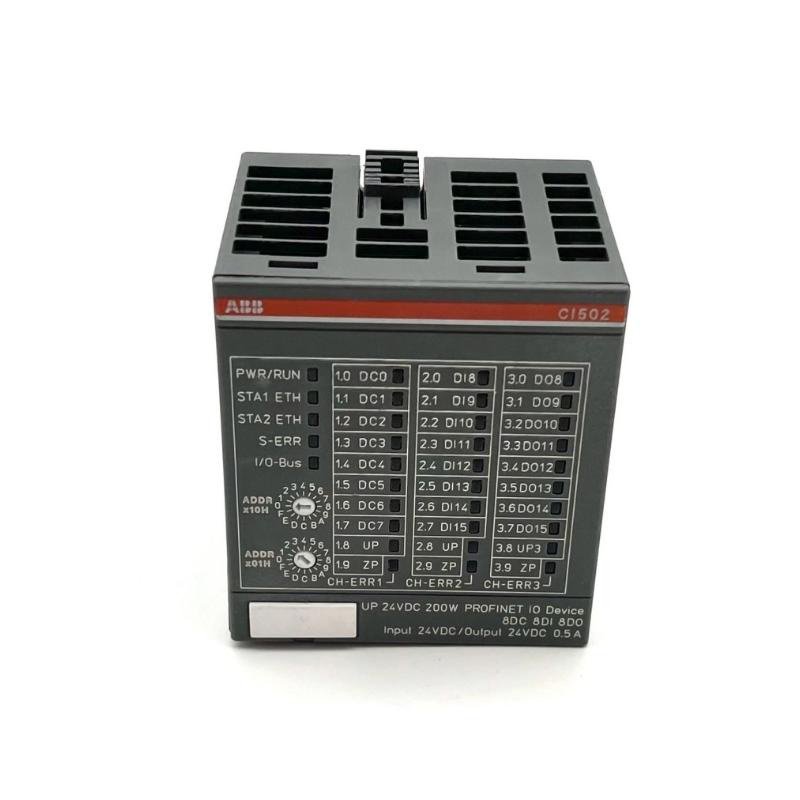

Integrated Diagnostics–Built-in LEDs and status feedback for simplified troubleshooting
-
Compact DIN Rail Design–Space-saving, easy to install in control cabinets
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 x 76 x 67.5mm |
| Weight | 0.133 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC (±20%) via backplane |
| Power Consumption | Approx. 3 W |
| Communication Protocol | PROFINET IO (per IEC 61158/IEC 61784) |
| Interface Ports | 2 x RJ45 (10/100 Mbps Ethernet) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB S500 Remote I/O, AC500 PLCs, and other PROFINET IO Masters |
| Integration | Easily integrates into PROFINET-based automation networks |
Industry Applications
-
Factory Automation–Supports distributed I/O control in manufacturing systems
-
Process Industries–Integrates field I/O into centralized and decentralized control systems
-
Infrastructure & Utilities–Enables communication in building automation and energy management
-
Water & Wastewater–Connects remote I/O for pumping stations, filtration, and monitoring
-
Material Handling–Facilitates data exchange in conveyors, sorters, and robotic systems
The ABB CI502-PNIO 1SAP220700R0001 S500 Interface Module offers a reliable and efficient solution for connecting ABB S500 I/O modules to PROFINET networks. Its fast communication capabilities, compact design, and robust performance make it an essential component for modern, distributed control systems.
