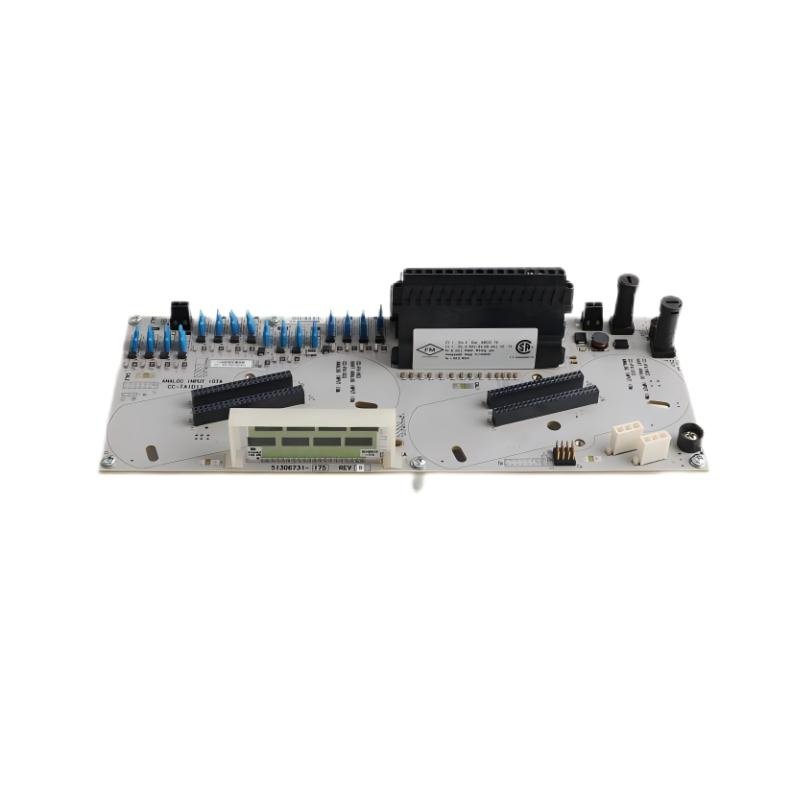

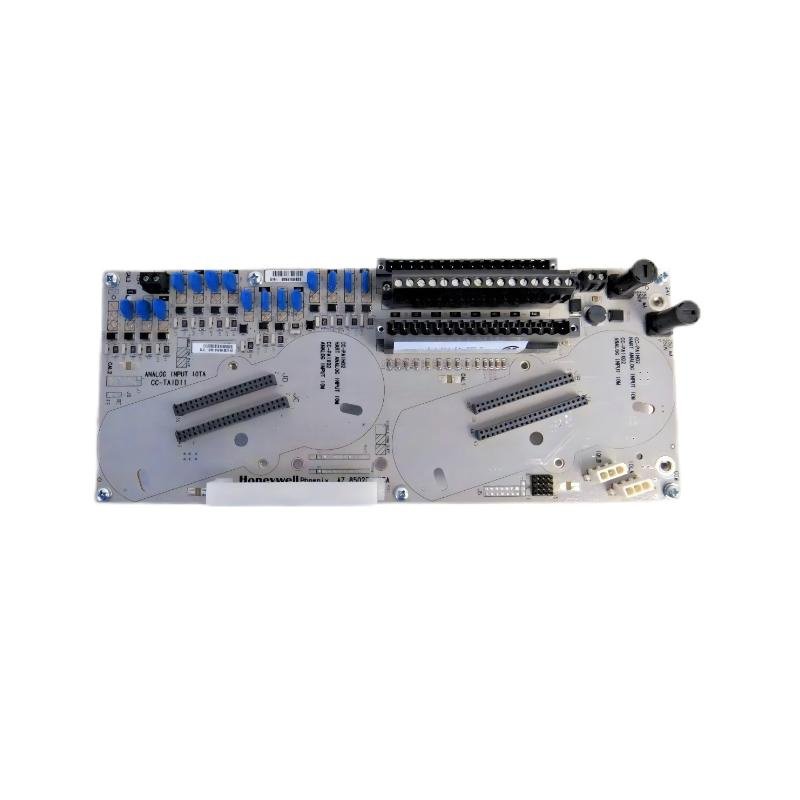

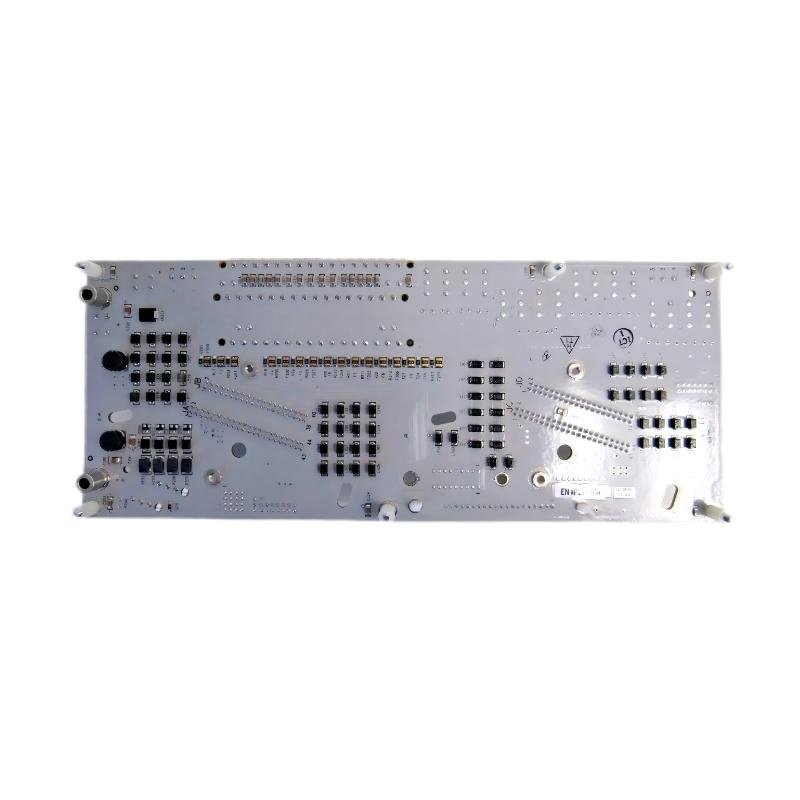

Honeywell CC-TAID11 51306731-175 Analog Input Modules
Manufacturer: Honeywell
Product Number: CC-TAID11 (51306731-175)
Category: Analog Input Module
System Compatibility: Honeywell process automation systems
Function: Accurately acquires and processes analog signals from various field instruments, serving as critical interface for precise measurement and control
Product Description
The Honeywell CC-TAID11 51306731-175 Analog Input Module is designed to accurately acquire and process analog signals from various field instruments. It serves as a critical interface in Honeywell’s process automation systems, enabling precise measurement and control of temperature, pressure, flow, and other analog variables. The module supports multiple input types and offers reliable, noise-resistant signal conditioning to ensure high-fidelity data for control and monitoring applications.
Key Features
-
Multi-Channel Analog Input–Supports multiple channels for versatile signal acquisition.
-
Wide Input Range Compatibility–Accepts voltage, current, and resistance input types from diverse sensors.
-
High Accuracy and Resolution–Ensures precise and stable measurements for effective process control.
-
Advanced Signal Conditioning–Reduces noise and enhances signal quality for reliable data.
-
Easy Integration–Compatible with Honeywell’s control systems and communication protocols.
-
Diagnostic Capabilities–Provides built-in diagnostics for module health and signal integrity.
Technical Specifications
Physical Characteristics
| Item | Specification |
|---|---|
| Dimensions | 221 x 121 x 80mm |
| Weight | 0.2 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Types Supported | Voltage, Current, RTD, Thermocouple |
| Input Range | Voltage: ±10 V; Current: 4-20 mA typical |
| Resolution | High resolution ADC |
| Response Time | Fast sampling for real-time control |
| Power Supply | Compatible with Honeywell system power standards |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Shock and Vibration | Meets industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Control Systems | Compatible with Honeywell TDC3000 and Experion PKS |
| Communication | Supports Honeywell proprietary protocols |
| Mounting | Rack-mountable in Honeywell chassis |
Industry Applications
-
Oil & Gas–Accurate monitoring of process variables in refineries and production plants.
-
Power Generation–Controls turbine and boiler parameters for efficient energy production.
-
Chemical Processing–Ensures precise control of temperature and flow in chemical reactions.
-
Pharmaceuticals–Maintains strict environmental controls in manufacturing processes.
-
Water and Wastewater–Monitors critical parameters for treatment and compliance.
The Honeywell CC-TAID11 51306731-175 Analog Input Module delivers reliable and precise analog signal acquisition essential for effective process automation. Its robust design and compatibility with Honeywell control systems make it a fundamental component in various demanding industrial environments.
