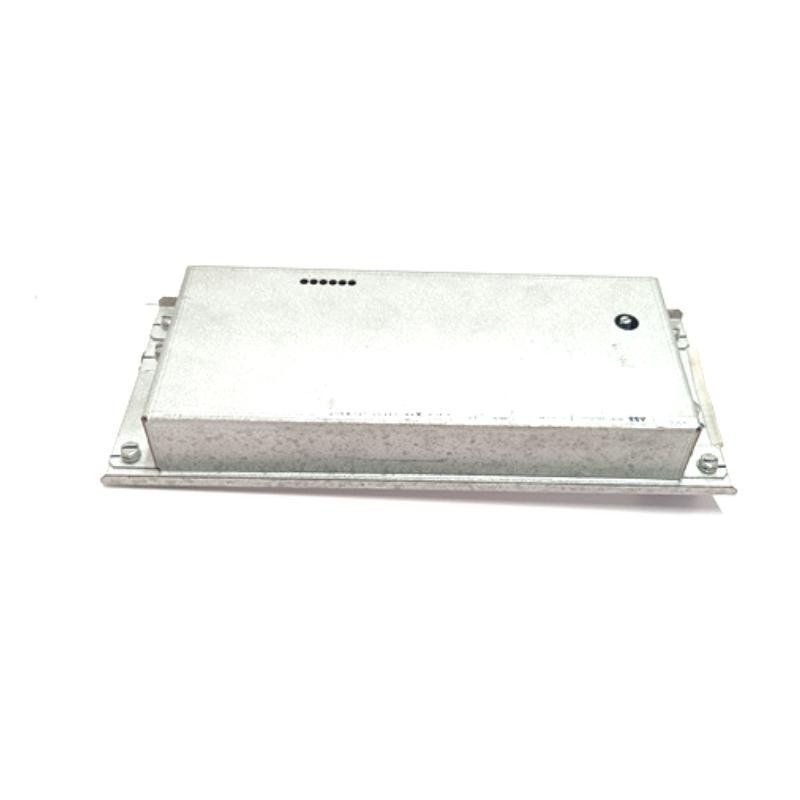

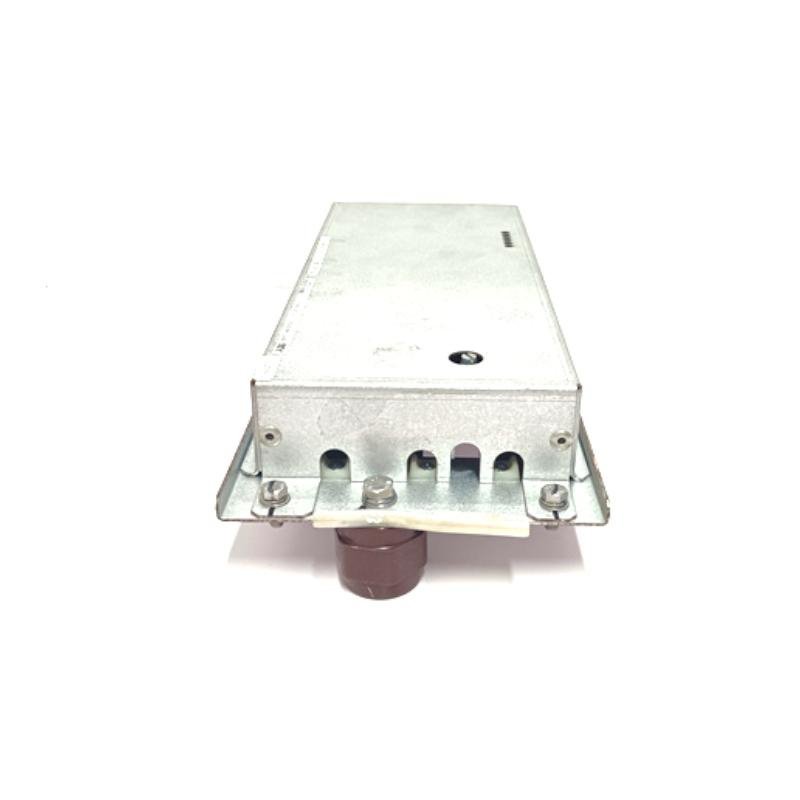

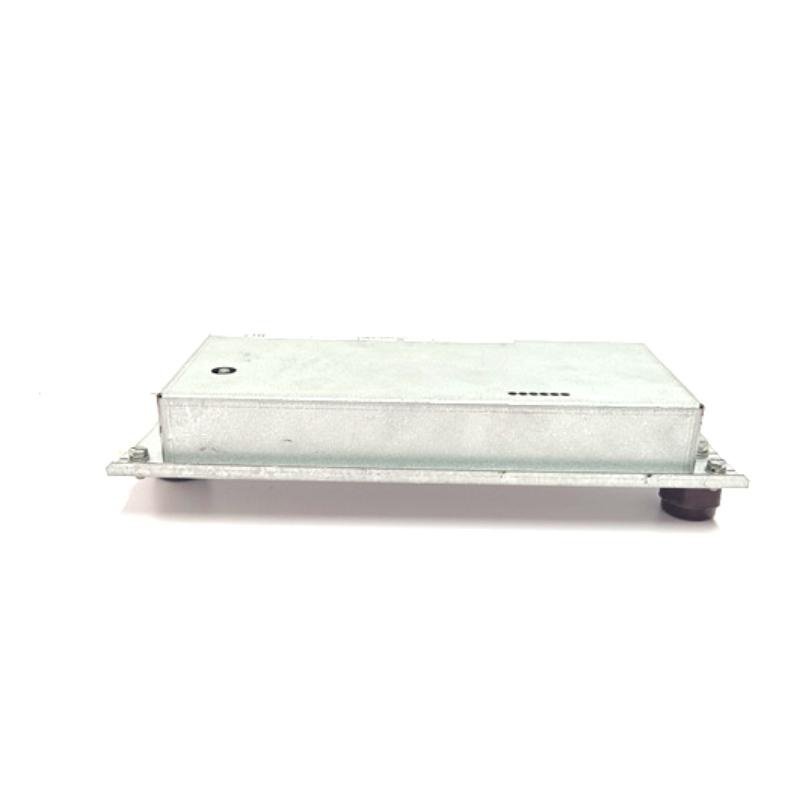

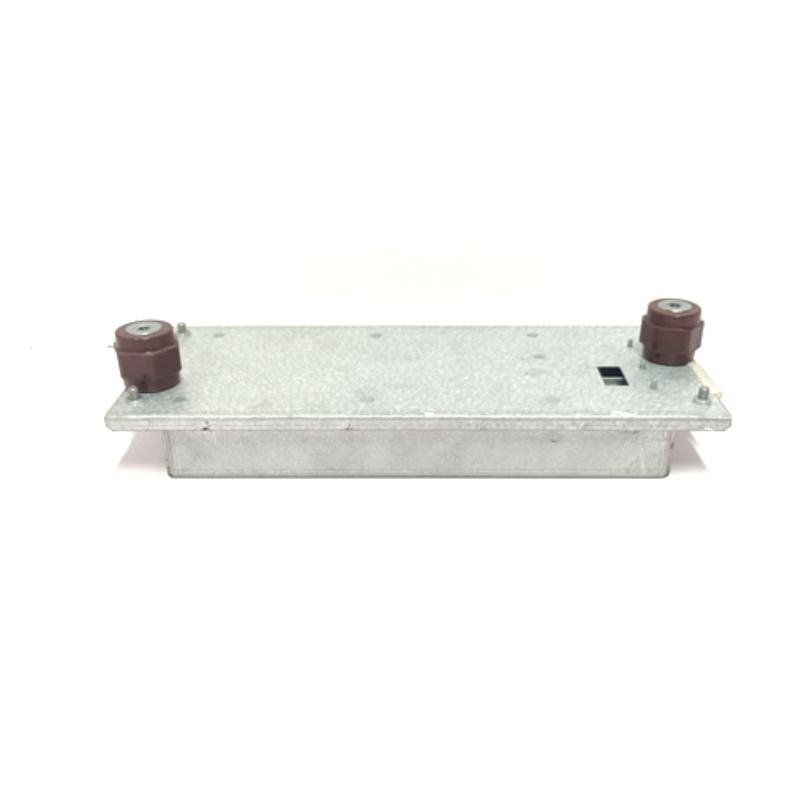

ABB UDC920BE01 3BHE034863R0001 digital control module
Manufacturer: ABB
Product Number: UDC920BE01 (3BHE034863R0001)
Category: Digital Control Module
System Compatibility: ABB control system solutions
Application: Precision industrial automation requiring reliable performance in process control applications
Product Description
The ABB UDC920BE01 (3BHE034863R0001) is an advanced digital control module designed for precision industrial automation applications. This unit forms a critical component in ABB’s control system solutions, offering reliable performance in process control and monitoring applications across various industries.
Key Features
-
High-precision control: Delivers accurate process control with advanced algorithms
-
Dual-processor architecture: Ensures reliable operation and fault tolerance
-
Flexible I/O configuration: Supports multiple signal types and field devices
-
Real-time diagnostics: Comprehensive system monitoring capabilities
-
Cybersecurity features: Built-in protection for industrial networks
-
Hot-swappable design: Enables maintenance without system shutdown
Technical Specifications
Table 1: Physical Parameters
| Parameter | Value |
|---|---|
| Dimensions (W×H×D) | 110mm × 160mm × 75mm |
| Weight | 1.8kg |
| Mounting | DIN rail or panel |
| Protection class | IP20 |
| Cooling | Natural convection |
Table 2: General Information
| Parameter | Value |
|---|---|
| Model number | UDC920BE01 3BHE034863R0001 |
| Manufacturer | ABB |
| Product category | Digital control module |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| MTBF | >100,000 hours |
Table 3: Electrical Specifications
| Parameter | Value |
|---|---|
| Power supply | 24V DC ±10% |
| Power consumption | 30W maximum |
| Input voltage range | 19-30V DC |
| Inrush current | 15A for 20ms |
| Isolation voltage | 1500V AC |
Table 4: Processing Capabilities
| Parameter | Value |
|---|---|
| Processor type | Dual-core industrial CPU |
| Processing speed | 800MIPS |
| Memory capacity | 1GB RAM, 2GB Flash |
| Control loop execution | 1ms cycle time |
| Maximum I/O points | 2048 digital/512 analog |
Table 5: Communication Interfaces
| Parameter | Value |
|---|---|
| Ethernet ports | 2 × Gigabit Ethernet |
| Fieldbus interfaces | PROFIBUS DP, Modbus TCP |
| Serial communication | RS-232/RS-485 |
| Protocol support | OPC UA, IEC 61850, DNP3 |
| Data throughput | 100Mbps sustained |
Table 6: Environmental Compliance
| Parameter | Value |
|---|---|
| EMC immunity | EN 61000-6-2 |
| EMC emissions | EN 61000-6-4 |
| Shock resistance | 15g, 11ms duration |
| Vibration resistance | 2g, 10-150Hz |
| Certifications | UL, CE, ATEX (optional) |
Industry Applications
-
Power generation: Turbine control, boiler management systems
-
Oil and gas: Wellhead control, compressor stations
-
Chemical processing: Reactor control, batch processing
-
Pharmaceutical: Cleanroom automation, process validation
-
Water/wastewater: Pump control, filtration systems
-
Pulp and paper: Quality control, production line automation
