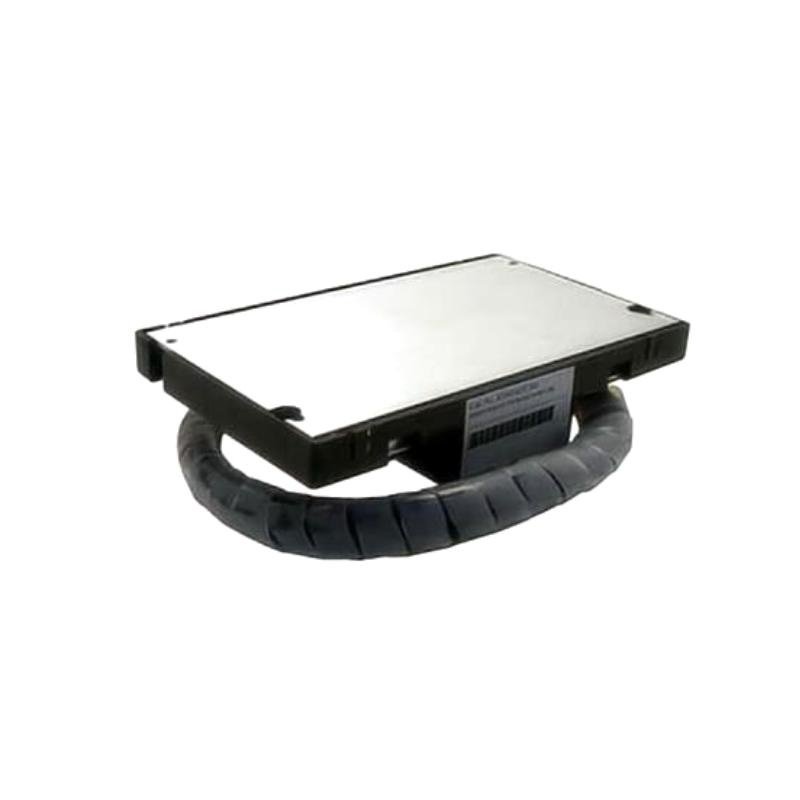

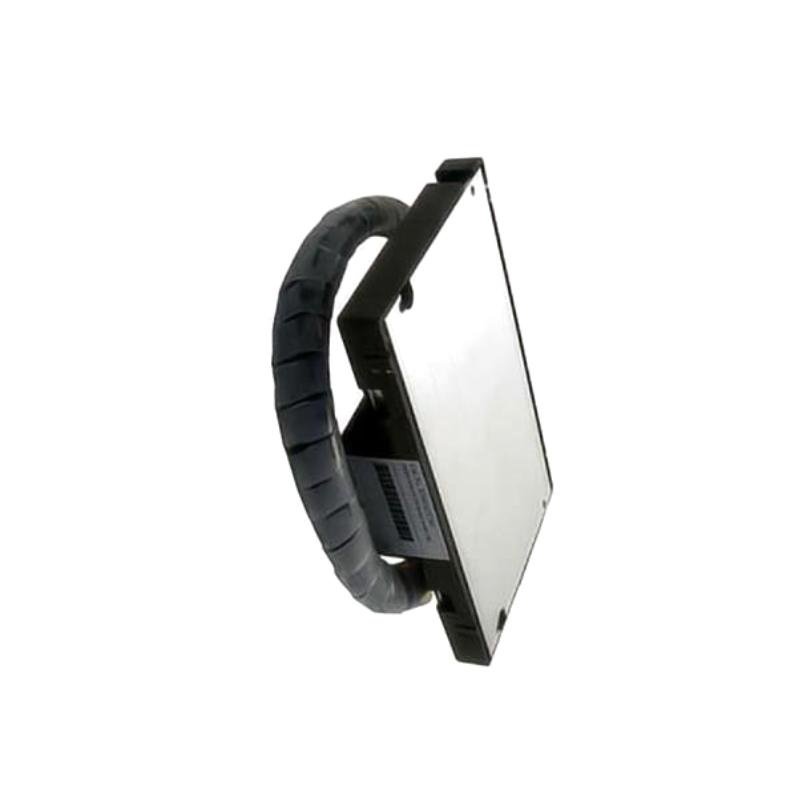

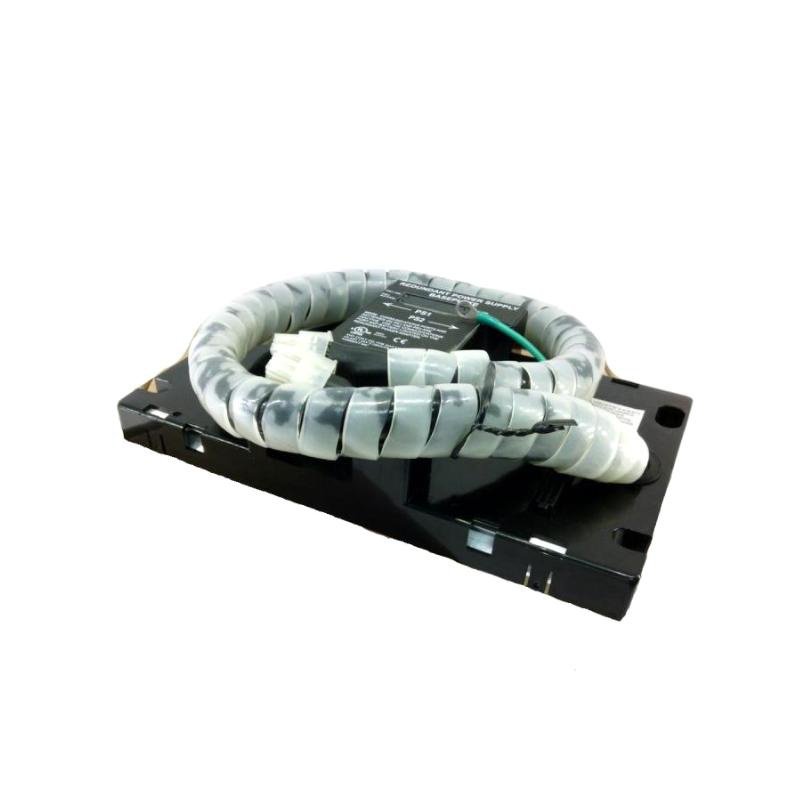

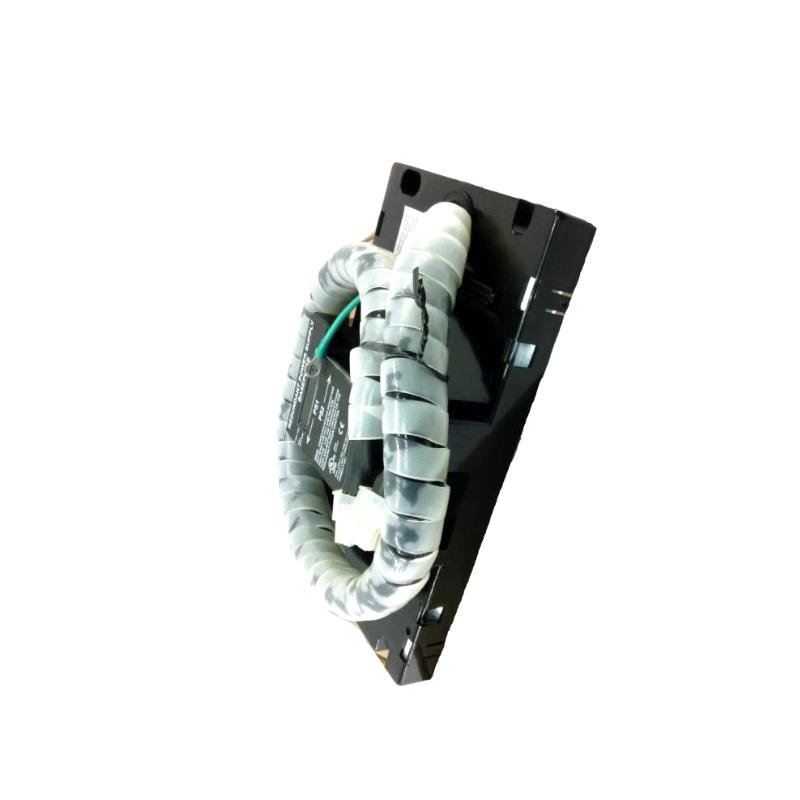

GE Fanuc IC693ACC341 Redundant Power Supply System Backplane
Manufacturer: GE Fanuc
Product Number: IC693ACC341
Category: Redundant Power Supply System Backplane (Series 90-30 PLC)
System Compatibility: GE Series 90-30 PLC system
Function: Supports dual power supply configurations ensuring uninterrupted operation by providing redundancy
Product Description
The GE Fanuc IC693ACC341 is a redundant power supply system backplane designed to support dual power supply configurations within the Series 90-30 Programmable Logic Controller (PLC) system. This backplane ensures uninterrupted operation by allowing automatic switchover between two power sources, providing increased system availability and reliability for critical automation tasks. It is ideal for applications requiring high uptime and fault tolerance in industrial environments.
Key Features
-
Redundant Power Supply Support–Allows two IC693PWR series power supplies to be connected simultaneously
-
Automatic Switchover–Ensures continuous operation by switching to backup power in case of primary failure
-
Reliable Power Distribution–Distributes regulated power to CPU and I/O modules through the Series 90-30 bus
-
Compact Form Factor–Space-efficient design suitable for panel or cabinet installations
-
Simplified Wiring and Installation–Facilitates easy connection of dual supplies with minimal configuration
-
Industrial-Grade Construction–Built to operate in harsh conditions with high electrical noise immunity
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 215 x 130 x 142 mm |
| Weight | 0.907 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Compatible Power Supplies | GE Fanuc IC693PWR321, IC693PWR330, etc. |
| Power Switching Logic | Internal automatic switchover circuitry |
| Backplane Voltage Bus | +5 V DC and +24 V DC (supplied by PSU) |
| Input Power Path Redundancy | Dual-channel input with priority handling |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | GE Fanuc Series 90-30 PLC System |
| Mounting Type | Panel-mounted or rack-mounted in enclosure |
Industry Applications
-
Power Generation–Ensures continuous PLC power in turbine and generator control systems
-
Oil & Gas–Provides fault-tolerant power for offshore and onshore automation panels
-
Water Treatment–Supports uninterrupted logic control in pump and filtration systems
-
Manufacturing–Maintains operational integrity of critical production lines
-
Transportation–Powers control systems in tunnels, railways, and airport infrastructure
The GE Fanuc IC693ACC341 Redundant Power Supply System Backplane delivers dependable and seamless power switching for Series 90-30 PLCs. Designed for use in critical industrial environments, it enhances system reliability and ensures continuous operation in high-availability automation applications.
