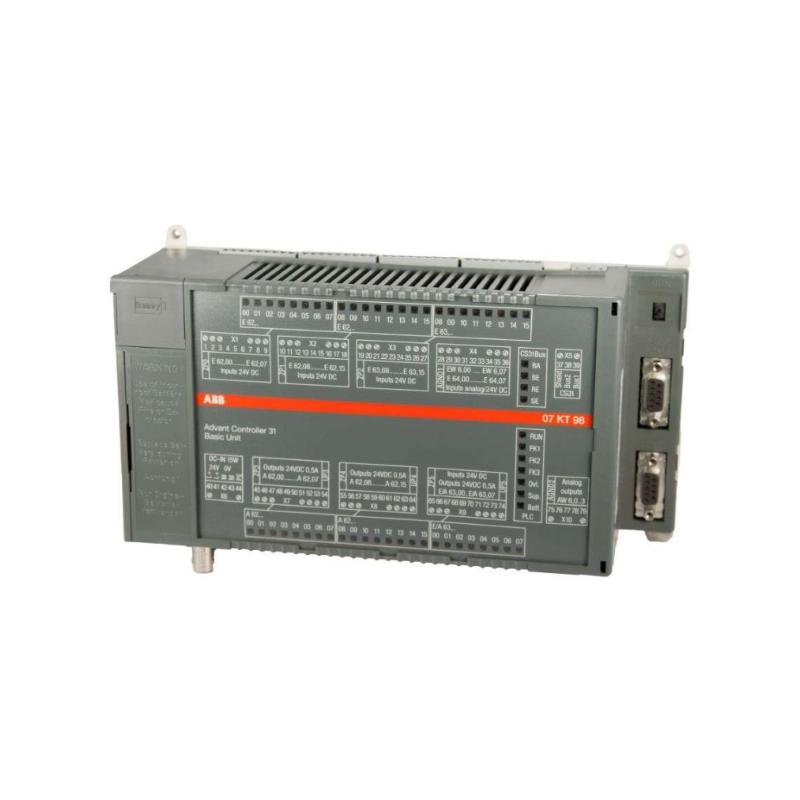

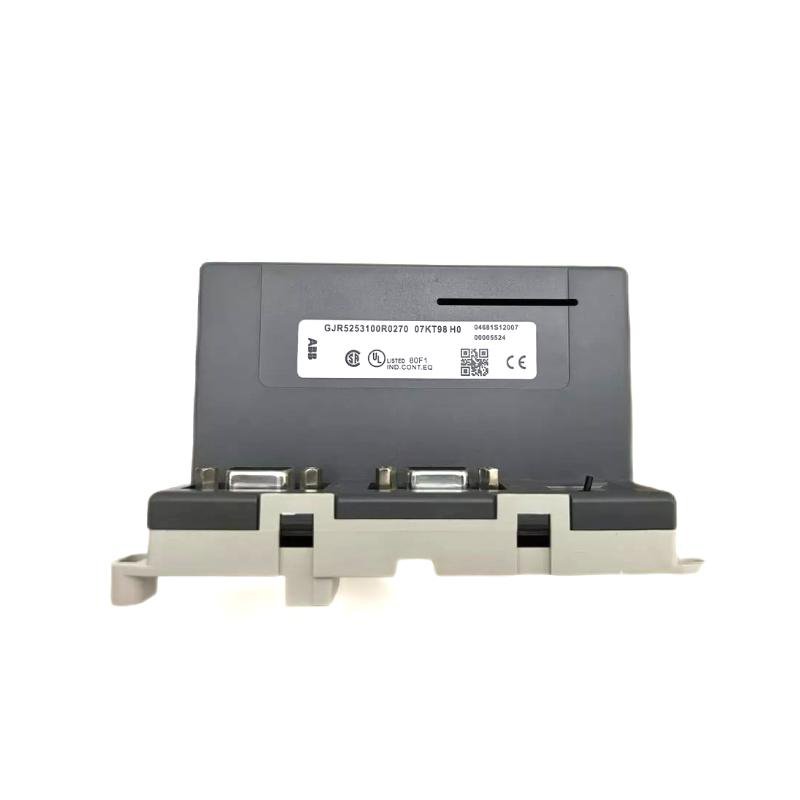

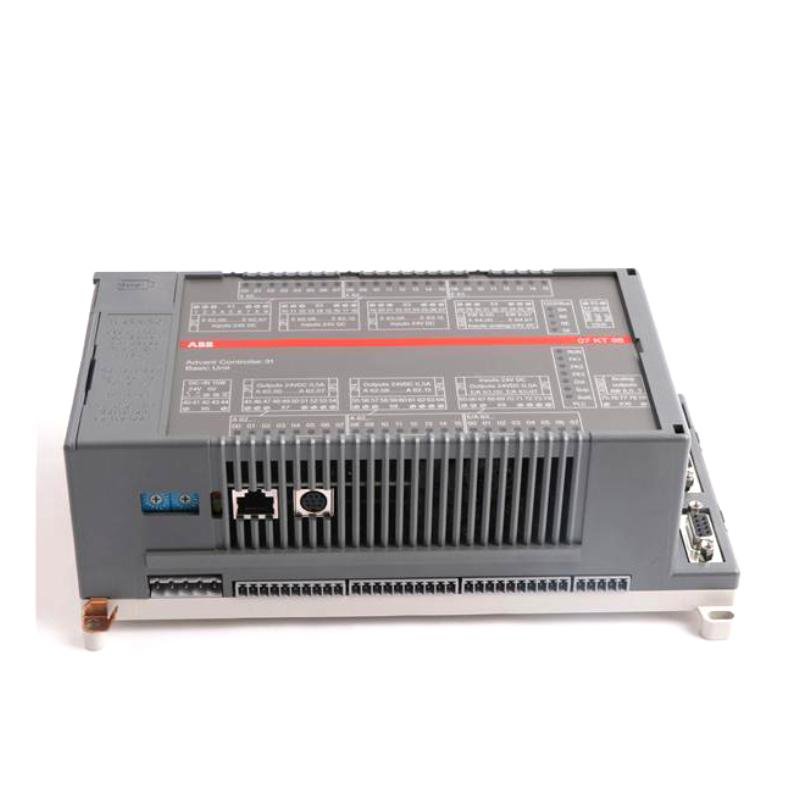

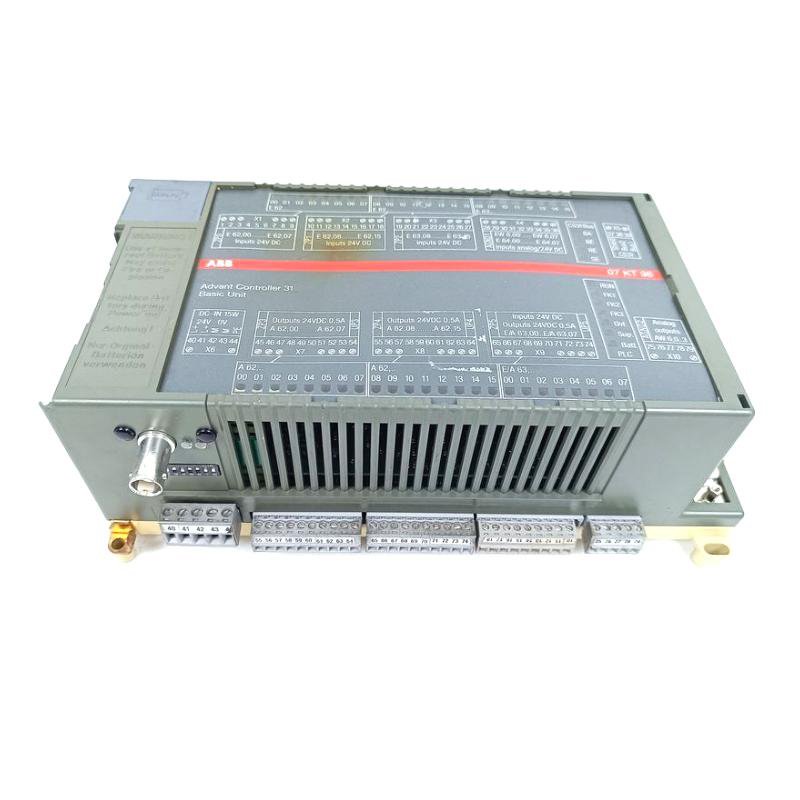

ABB 07KT98 GJR5253100R0270 Basic Unit
Manufacturer: ABB
Product Number: 07KT98 (GJR5253100R0270)
Category: Basic Unit
Application: Automation control systems requiring high-density digital and analog inputs/outputs for handling complex control tasks
Product Description
The ABB 07KT98 GJR5253100R0270 is a high-performance basic unit designed for automation control systems, especially for applications requiring high-density digital and analog inputs/outputs. It is capable of handling complex control tasks and supports a variety of expansion features. The module adopts an advanced hardware architecture, providing a comprehensive range of input/output options to meet various industrial automation needs. The 07KT98 offers rich I/O configurations, including digital and analog inputs/outputs, serial interfaces, parallel interfaces, and a system bus interface.
With integrated high-speed counters, real-time clock, storage management, and programmable functions, the 07KT98 can be used for a wide range of automation tasks, such as industrial production lines, process control, and equipment monitoring. The module supports SmartMedia cards for data storage and program backup, enhancing system reliability and data management capabilities.
General Parameters
| Category | Specification |
| Order Number | GJR5253100R0270 |
| Power Supply Voltage | 24V DC |
| Power Consumption | Max 0.35A |
| User Program Storage | 1 MB |
| User Data Storage | 1 MB + 256 kB RETAIN + 128 kB (Flash EPROM) |
| Digital Inputs | 24 digital inputs, divided into 3 groups of 8 each, electrically isolated |
| Digital Outputs | 16 transistor outputs, divided into 2 groups of 8 each, electrically isolated |
| Digital I/O | 8 digital I/O, 1 group, electrically isolated |
| Analog Inputs | 8 analog inputs, 1 group, configurable to 0…10V, 0…5V, +10V, +5V, 0…20mA, 4…20mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs |
| Analog Outputs | 4 analog outputs, 1 group, configurable to 0…10V, 0…20mA, 4…20mA |
| Serial Interfaces | COM1, COM2 as MODBUS interfaces, for programming and test functions, also as freely programmable interfaces |
| Parallel Interfaces | For connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable) |
| System Bus Interface | CS31 system bus interface |
| High-Speed Counter | Integrated high-speed counter, supports multiple configurable functions |
| Real-Time Clock | Integrated real-time clock for accurate time management |
| Storage Medium | SmartMedia card for operating system, user program, and user data storage |
| LED Displays | Displays signal conditions, operational status, and error messages |
| Data Backup | Lithium battery for data backup (07 LE 90) |
| Weight | 1.6 kg |
| Dimensions | 240 x 140 x 85 mm |
| Programming Software |
907 AC 1131 (V4.1 and above for ARCNET interface)
907 AC 1131 (V4.2.1 and above for PROFIBUS-DP interface) |
| Operating Temperature | 0°C to 55°C |
Digital Input Characteristics
| Parameter | Specification |
| Number of Channels | 24 digital inputs (3 groups, 8 inputs each) |
| Input Voltage Range | Signal 0: -30V to +5V, Signal 1: +13V to +30V |
| Input Current | 7.0 mA at 24V input, > 0.2 mA at 5V input |
Digital Output Characteristics
| Parameter | Specification |
| Number of Channels | 16 digital outputs (2 groups of 8 each) |
| Output Current | Rated 500 mA per group, max 625 mA |
| Load Capacity | Max 625 mA, short-circuit protection |
Analog Input Characteristics
| Parameter | Specification |
| Number of Channels | 8 analog inputs |
| Input Voltage Range | 0-10V, ±10V, 0-5V, ±5V, 0-20mA, 4-20mA, Pt100 (2-wire or 3-wire) |
| Input Impedance | > 100kΩ for voltage, ~330Ω for current |
Analog Output Characteristics
| Parameter | Specification |
| Number of Channels | 4 analog outputs |
| Output Signal Range | 0…10V, 0…20mA, 4…20mA |
| Resolution | 12-bit resolution |
Key Features
- High-Density I/O Configuration: Offers 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs, suitable for a wide range of industrial control needs.
- Flexible Analog Input Configuration: Analog input channels are configurable for multiple signal types, meeting the requirements of various sensors.
- Integrated High-Speed Counter: Features an integrated high-speed counter, supporting multiple configurable functions, ideal for pulse counting.
- Real-Time Clock: The integrated real-time clock ensures accurate time management, suitable for applications requiring precise time control.
- Data Storage and Backup: Utilizes SmartMedia cards for program and data storage and backup, ensuring stable operation.
- Powerful Communication Interfaces: Supports MODBUS interfaces, freely programmable interfaces, and PROFIBUS-DP interfaces, providing strong communication capabilities.
- High Reliability and Diagnostics: Real-time signal status, operational status, and error messages are displayed via LED indicators, facilitating troubleshooting.
- Data Backup: Uses a lithium battery for data backup, ensuring data integrity during power interruptions.
Applications
The ABB 07KT98 GJR5253100R0270 basic unit is widely used in industrial automation and process control systems. It is suitable for the following applications:
- Process Control Systems: Used for monitoring and controlling key parameters in manufacturing processes, ensuring efficient and stable production.
- Smart Manufacturing: Integrated into automated production lines, monitoring and adjusting equipment operation in real-time to optimize production efficiency.
- Energy Management Systems: Used in the power and energy industries for collecting and processing data, ensuring the safe and stable operation of electrical equipment.
- Chemical and Pharmaceutical: Applied in automation systems in chemical and pharmaceutical industries for precise process control and monitoring.
- Water Treatment and Environmental Monitoring: Used in water treatment and environmental monitoring systems to optimize resource usage and ensure operational stability.
