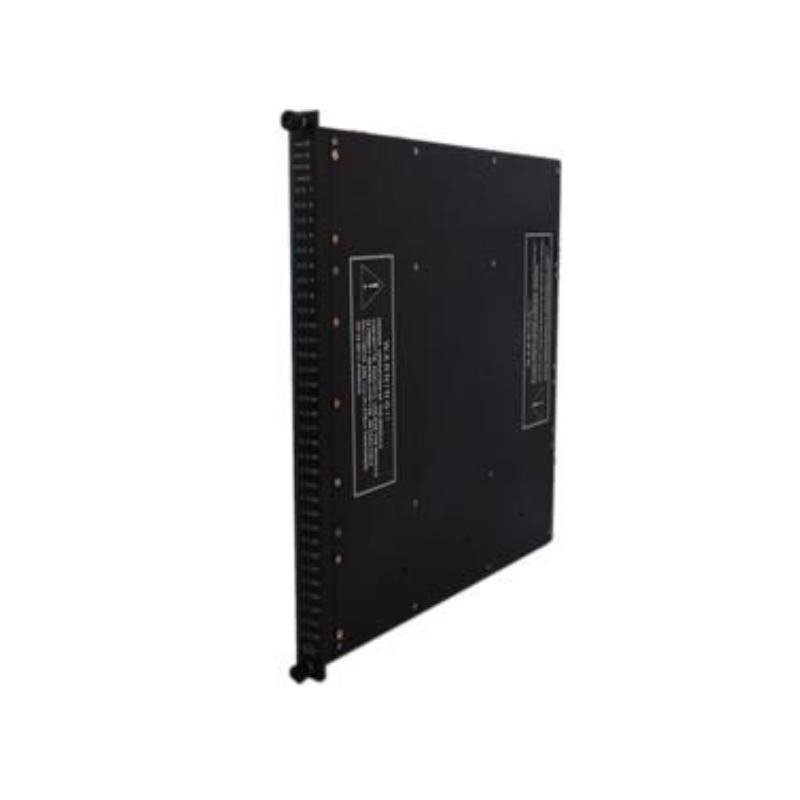

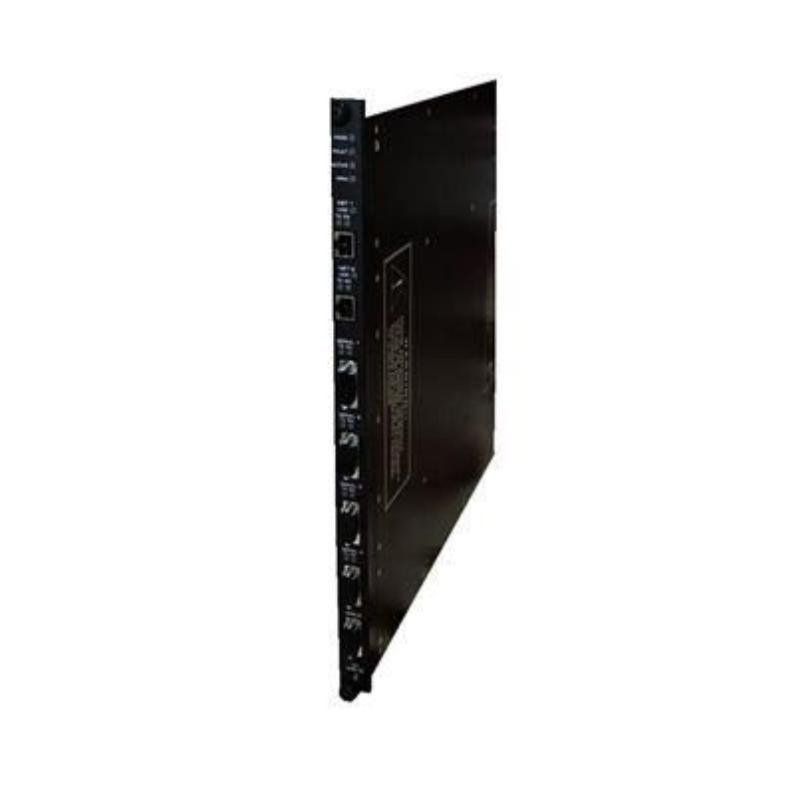

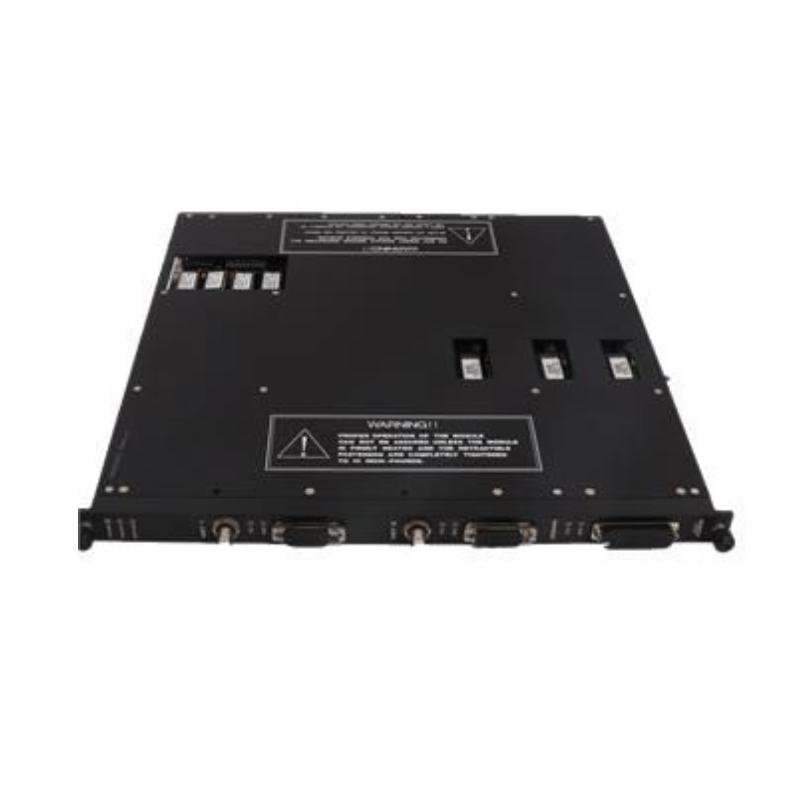

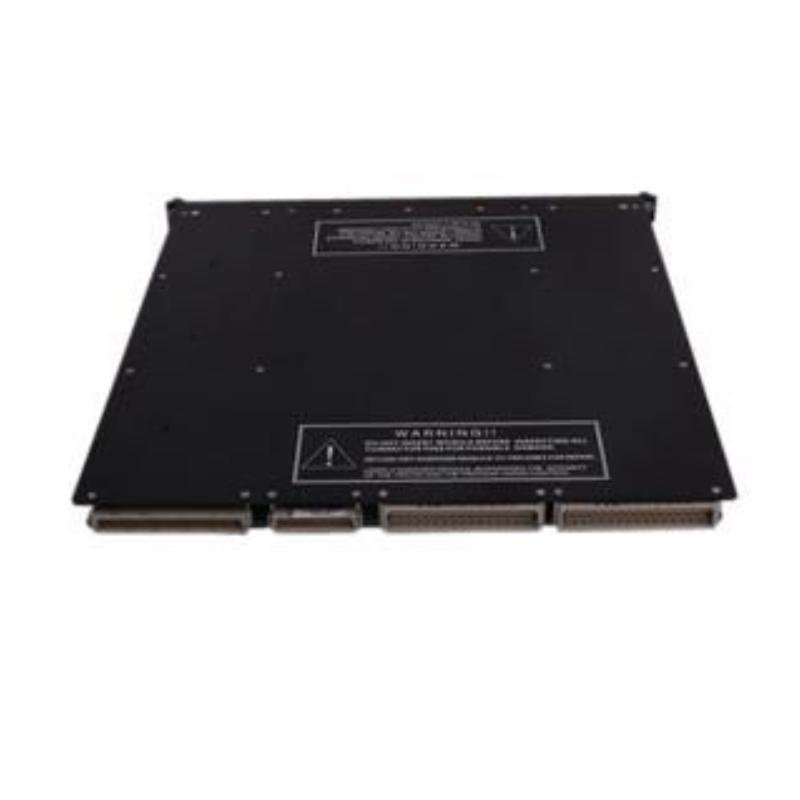

Triconex 7400159-030 CPU Module
Manufacturer: Triconex (Schneider Electric)
Product Number: 7400159-030
Category: CPU Module (Triconex safety instrumented systems)
System Compatibility: Triconex safety systems
Function: Core processing for safety-critical control logic, diagnostics, and communication
Product Description
The Triconex 7400159-030 CPU Module is the central processing unit designed for Triconex safety instrumented systems. It provides the core processing power for executing safety-critical control logic, diagnostics, and communication functions within a Triple Modular Redundancy (TMR) architecture. Engineered for reliability and fault tolerance, this CPU module ensures continuous safe operation in demanding industrial environments.
Key Features
-
Triple Modular Redundancy (TMR)–Provides fault-tolerant, fail-safe processing for maximum system reliability.
-
High-Speed Processing–Enables fast execution of control algorithms and safety logic.
-
Comprehensive Diagnostics–Continuous self-tests and fault detection to maintain system integrity.
-
Flexible Communication Interfaces–Supports multiple industrial communication protocols for seamless integration.
-
Robust Design–Built to withstand harsh industrial conditions including vibration and temperature extremes.
-
Scalable Architecture–Compatible with other Triconex modules for system expansion and customization.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 240 × 38 × 230 mm |
| Weight | 0.6 kg |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 25 W |
| Processor Architecture | Triple Modular Redundancy (TMR) |
| Communication Ports | Ethernet, Modbus TCP/IP, Profibus, others supported |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | Meets IEC 60068-2 industrial standards |
| Protection Rating | IP20 |
Industry Applications
-
Process Safety Systems–Central processing unit for safety instrumented control in chemical, oil & gas, and petrochemical plants.
-
Power Generation–Controls turbine and generator safety functions with high reliability.
-
Manufacturing Automation–Ensures safe operation of automated production systems.
-
Marine and Offshore–Provides critical safety processing for marine control systems.
-
Critical Infrastructure–Supports safety in utilities, transportation, and water treatment facilities.
The Triconex 7400159-030 CPU Module is a robust, high-performance processing unit essential for ensuring safety, reliability, and fault tolerance in Triconex safety instrumented systems. Its advanced architecture and diagnostics capabilities make it ideal for mission-critical industrial applications.
