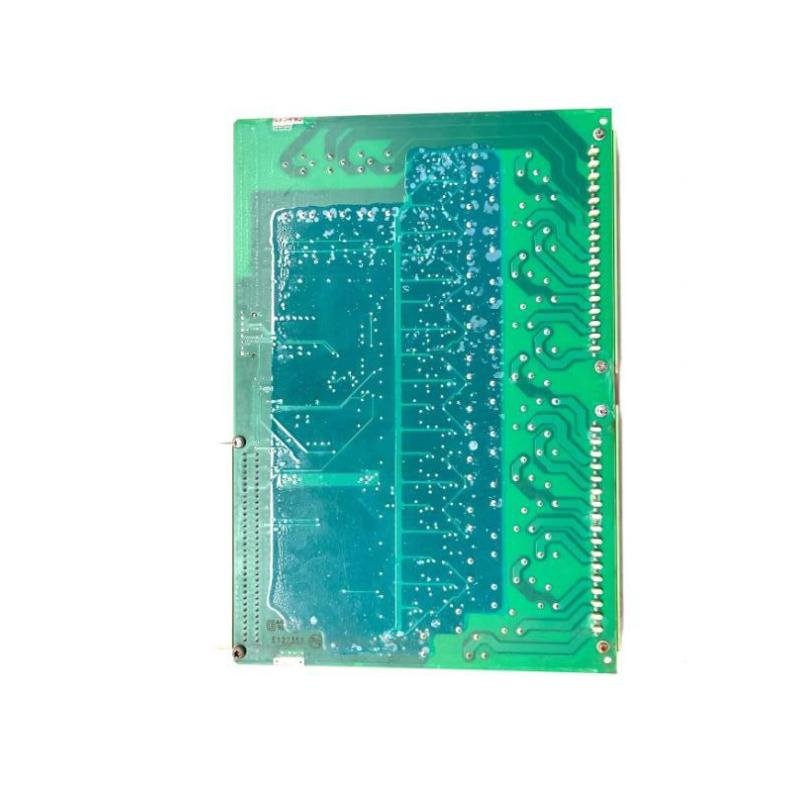

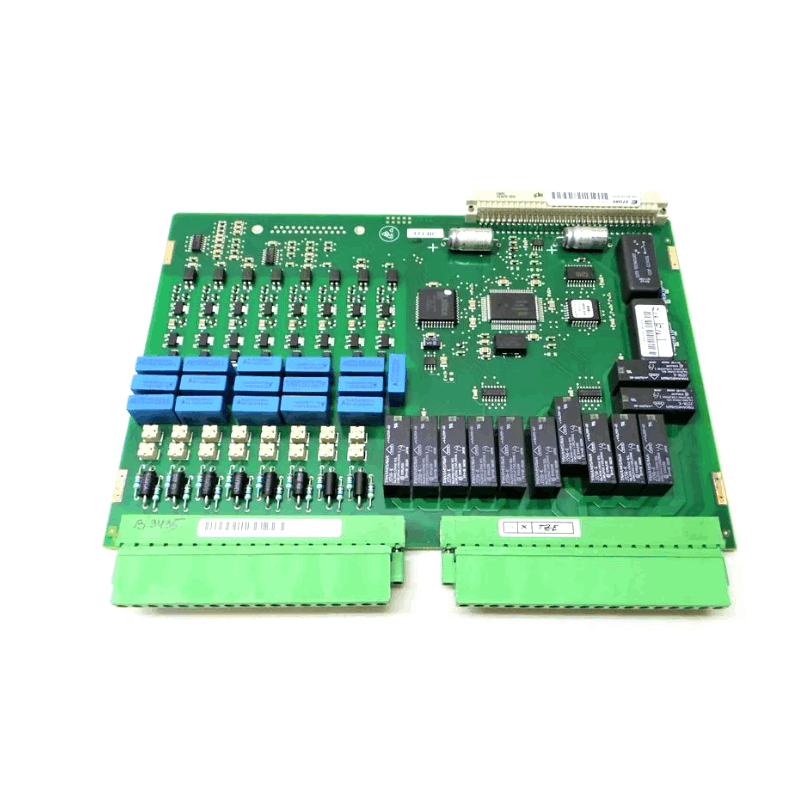

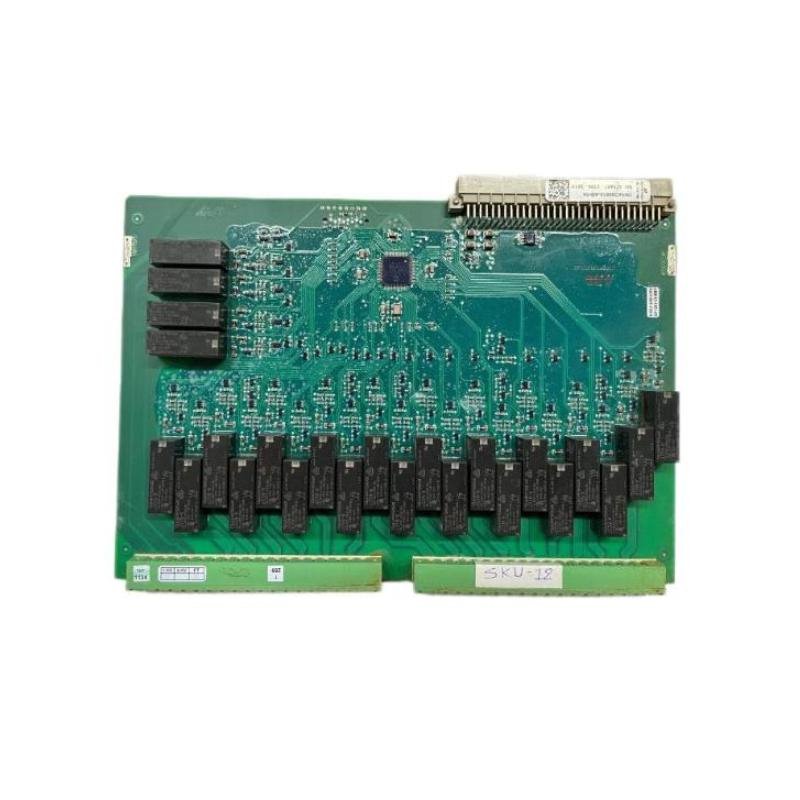

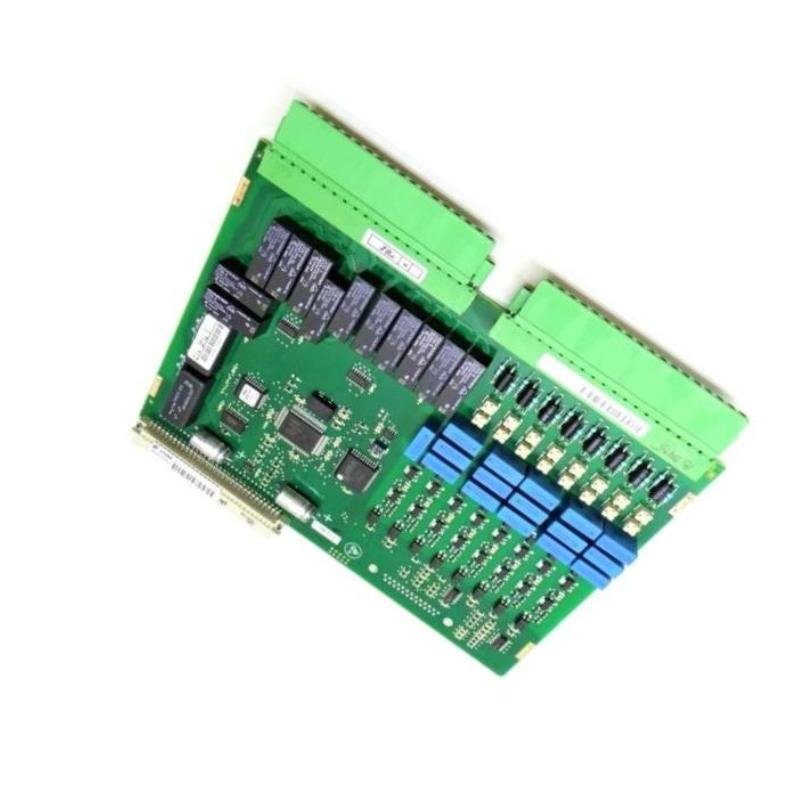

ABB 1MRK000614-ABr04 Binary I/O Modules
Manufacturer: ABB
Product Number: 1MRK000614-ABr04
Category: Binary I/O Module
System Compatibility: ABB protection and control systems
Function: Supports both digital input and output functions for binary signal interfacing
Product Description
The ABB 1MRK000614-ABr04 Binary I/O Module is a robust and reliable component designed for binary signal interfacing in ABB protection and control systems. This module supports both digital input and output functions, enabling efficient monitoring and control of binary signals from field devices such as switches, relays, and contactors. Engineered for high-performance applications in substations and industrial automation, the 1MRK000614-ABr04 ensures secure and fast signal processing, facilitating real-time decision-making in protection and automation schemes.
Key Features
-
Dual Functionality: Provides both binary input and output capabilities, reducing module count and simplifying system architecture.
-
Fast Response Time: Enables real-time signal processing critical for protection, automation, and interlocking operations.
-
Robust Industrial Design: Built to operate reliably in harsh electrical and environmental conditions, including substations and heavy industry.
-
Flexible Configuration: Supports a range of voltage levels and can be easily configured for specific application needs.
-
System Integration: Seamlessly integrates into ABB’s protection and control systems, particularly within the Relion® series and substation automation environments.
-
Diagnostics and Monitoring: Equipped with diagnostic indicators for rapid fault identification and maintenance facilitation.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 50 x 75 mm |
| Weight | 0.5 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | 1MRK000614-ABr04 |
| Module Type | Binary Input/Output Module |
| Mounting | DIN Rail / Panel Mountable |
| Input/Output | Configurable Binary I/O |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24–250 V DC / 110–250 V AC (configurable) |
| Output Type | Relay-based digital output |
| Power Supply | 24 V DC typical |
| Operating Temp | -25°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Relion®, Substation Automation Systems |
| Communication Interface | Hardwired I/O, can integrate into IEC 61850 systems |
| Software Configuration | PCM600, IED Configuration Tools |
Industry Applications
-
Power Transmission & Distribution: Enables real-time control and status monitoring in substations, supporting automation, interlocking, and fault management.
-
Industrial Automation: Used in safety and control logic for critical binary signal interfacing in heavy industries such as mining and metallurgy.
-
Renewable Energy: Integrates with wind, solar, and hybrid energy systems for signal acquisition and system control.
-
Oil & Gas: Monitors and controls safety-related binary inputs and outputs in processing plants and field instrumentation systems.
-
Transportation and Infrastructure: Supports smart infrastructure systems by interfacing with sensors and actuators for lighting, access, and monitoring.
The ABB 1MRK000614-ABr04 Binary I/O Module is a versatile and high-reliability component for capturing and acting upon binary signals in advanced protection and automation systems. Its dual I/O capability, rugged construction, and seamless ABB integration make it an essential choice for mission-critical industrial and energy sector applications.
